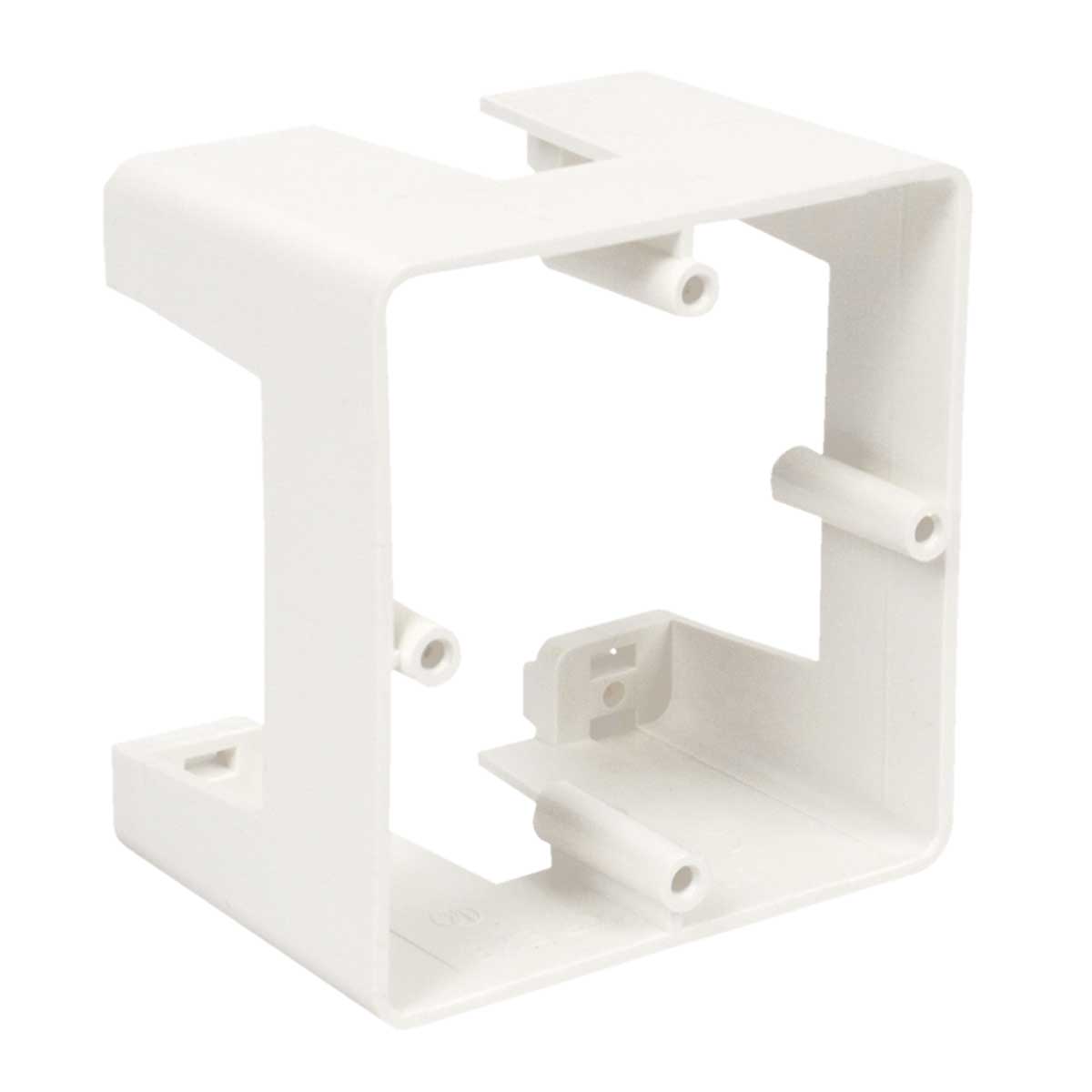

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
Conformity declaration
| Cod Ean | 8595057621732 |
| Cod vamal | 39259080 |
| Greutate | 0,04 kg/pcs |
| Culoare | white |
| Material | PVC |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Lătime | 71 mm |
| Înăltime | 75 mm |
| Adâncime | 55 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - D |
| Distanța dintre 2 doze | 71 mm |
| Permite instalarea aparatajului dublu | yes |
Allows inserting a shielding canal SK 40X… After removing the members for instrument screws (in the vertical axis), you can mount the double-socket. The snap-in feet have holes for 2.9x13 screws with a semicircular head (2.9x13V_ZNCR) for efficient securing of the box against unnecessary moving.
