Cod Ean8595057600089
Cod vamal85363030
Greutate0,02 kg/pcs
MaterialPVC
Material fără plumbyes
Cu suto-stingere30 s
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C

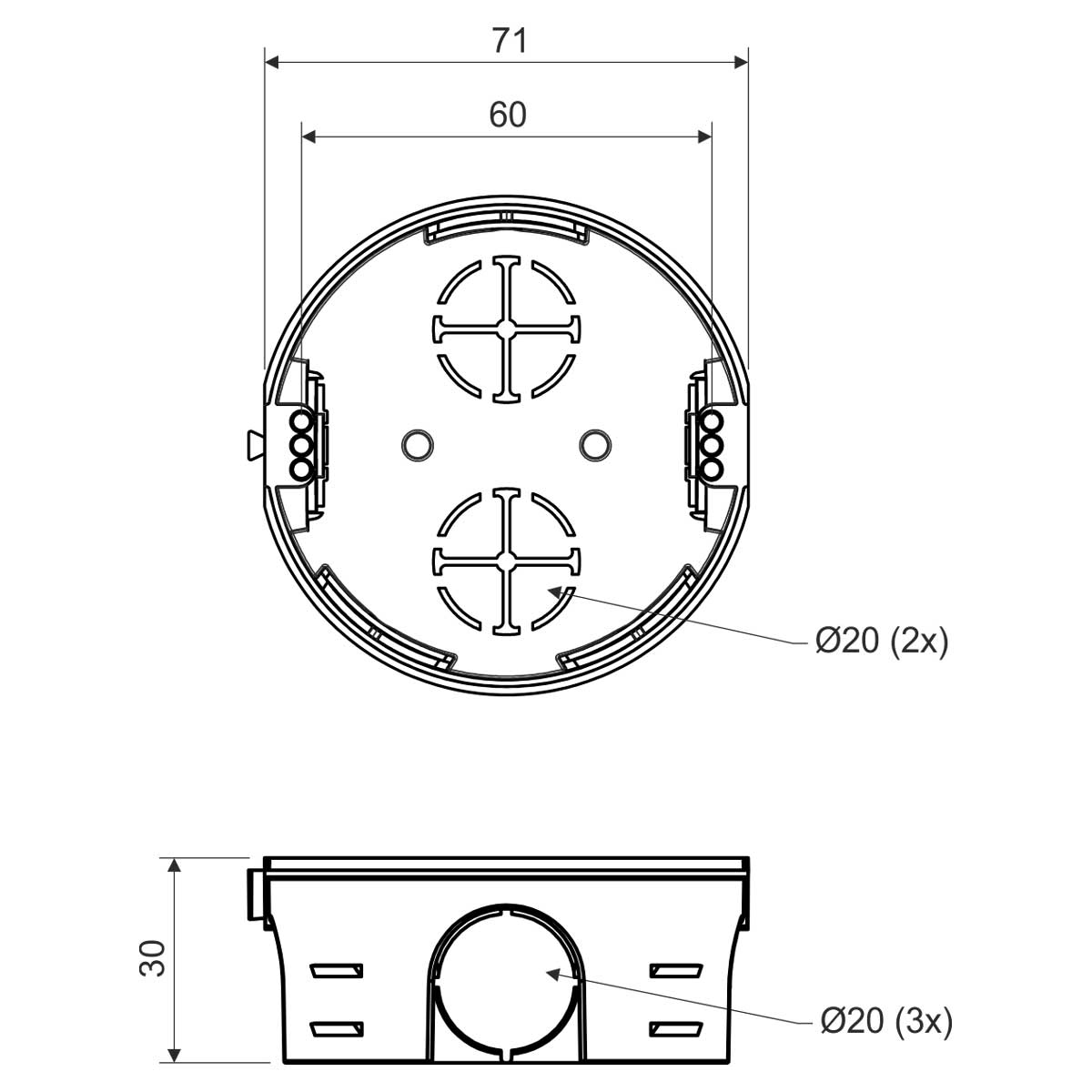

În medie73 mm
Adâncime30 mm
Diametrul orificiului găurit (forat)80 mm
Clasa de reacție la focA1 - D
Distanța dintre 2 doze71
Posibilitate de conectare a 2 doze in serieyes
StandardeČSN EN 60 670-1
Descriere impachetare
cartons freely in the cardboard, tool screws not mounted on the boxes

Possibility to join into and continuous series with and spacing of 71 mm. Connection of up to three boxes in and row is recommended. Boxes can be joined with boxes KU 68-1901, KP 68 and KPR 68. Allows the installation of wiring in thin partitions. Sold in packs (10; 150 pcs).
