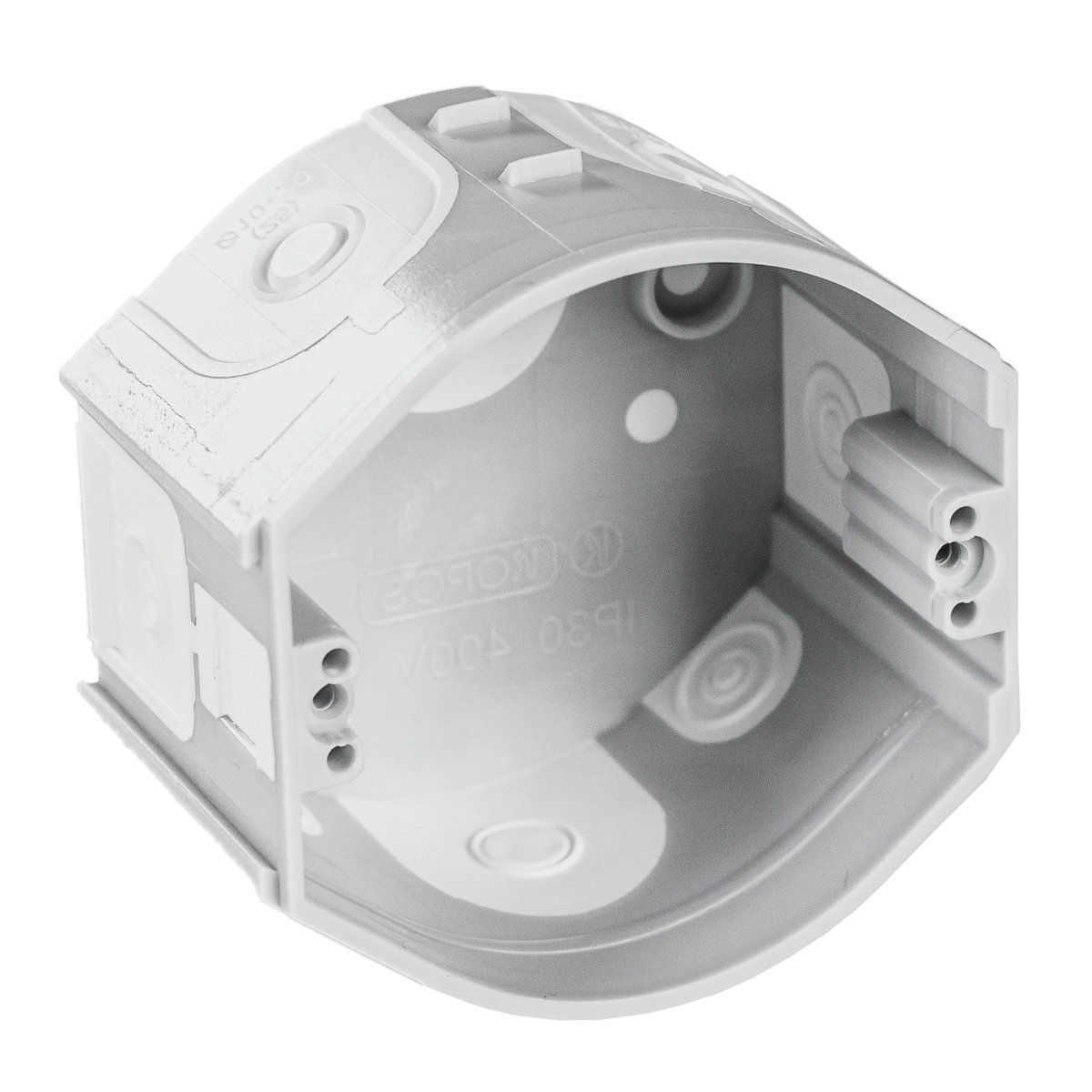

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KP68D_EN
| Cod Ean | 8595568932327 |
| Cod vamal | 39259080 |
| Greutate | 0,04 kg/pcs |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

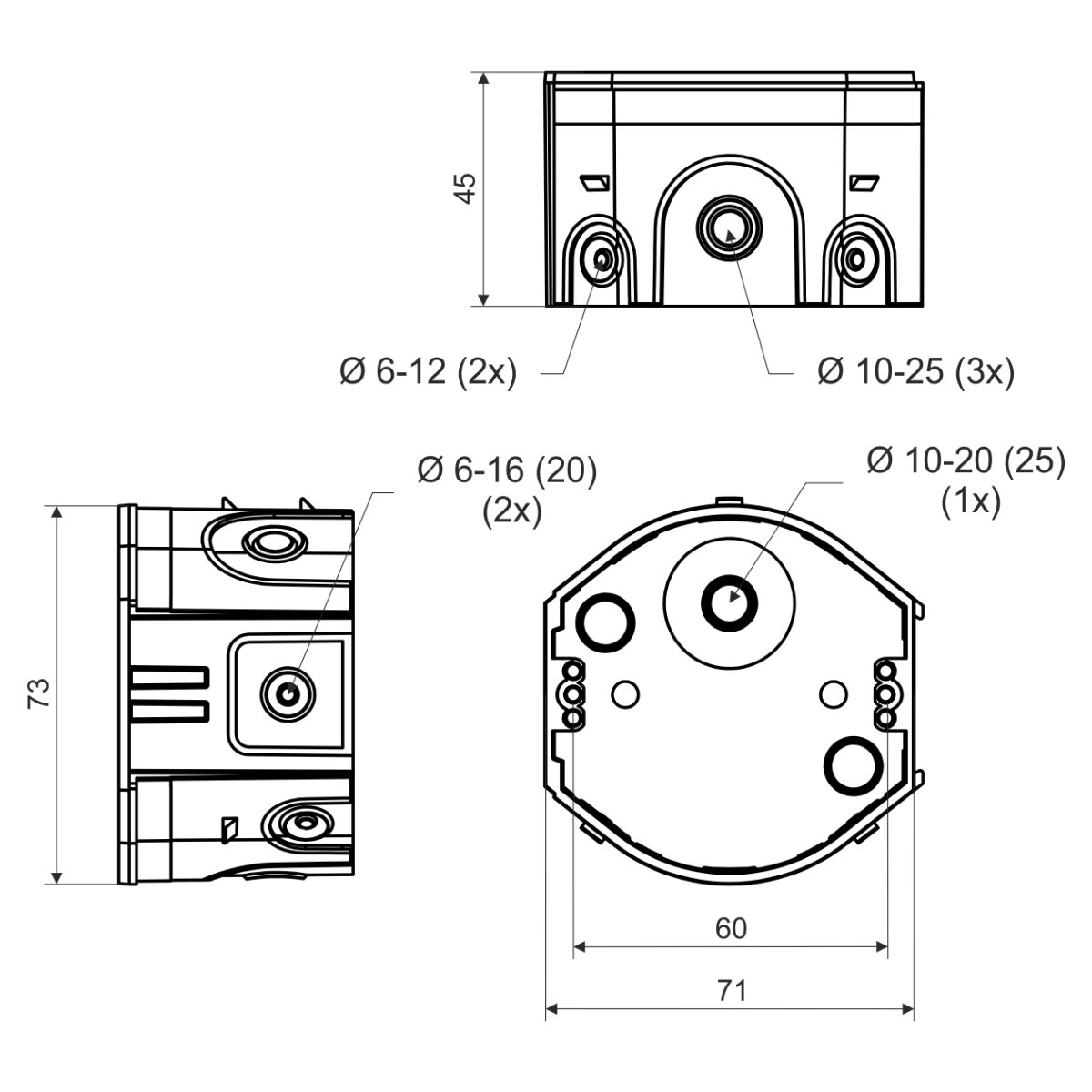

| În medie | 73 mm |
| Adâncime | 45 mm |
| Diametrul orificiului găurit (forat) | 81 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Distanța dintre 2 doze | 71 mm |
| Permite instalarea aparatajului dublu | yes |
| Tipuri de protecție | IP 30 |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare boxes loosely inserted into the carton, instrument screws included | |
Possibility of a fixed connection in a continuous row with a spacing of 71 mm. Boxes can be connected to KPR 68/D. Inlet openings made of flexible material. Install the cable or pipe by pulling out the pre-molded inlet on the flexible membranes and inserting the cable or pipe into the resulting hole. Empermeable airtightness of the penetration even when the cable or pipe is inserted. Suitable for low-energy or passive houses. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection. Protected by a European industrial and utility model.
