Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KP67_2_EN
| Cod Ean | 8595057615496 |
| Cod vamal | 39259080 |
| Greutate | 0,0330 kg/buc |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - +60 °C |
| Testat cu buclă incinsă | 850 °C |
| În medie | including joints. flap 89 |
| Adâncime | 45 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - D |

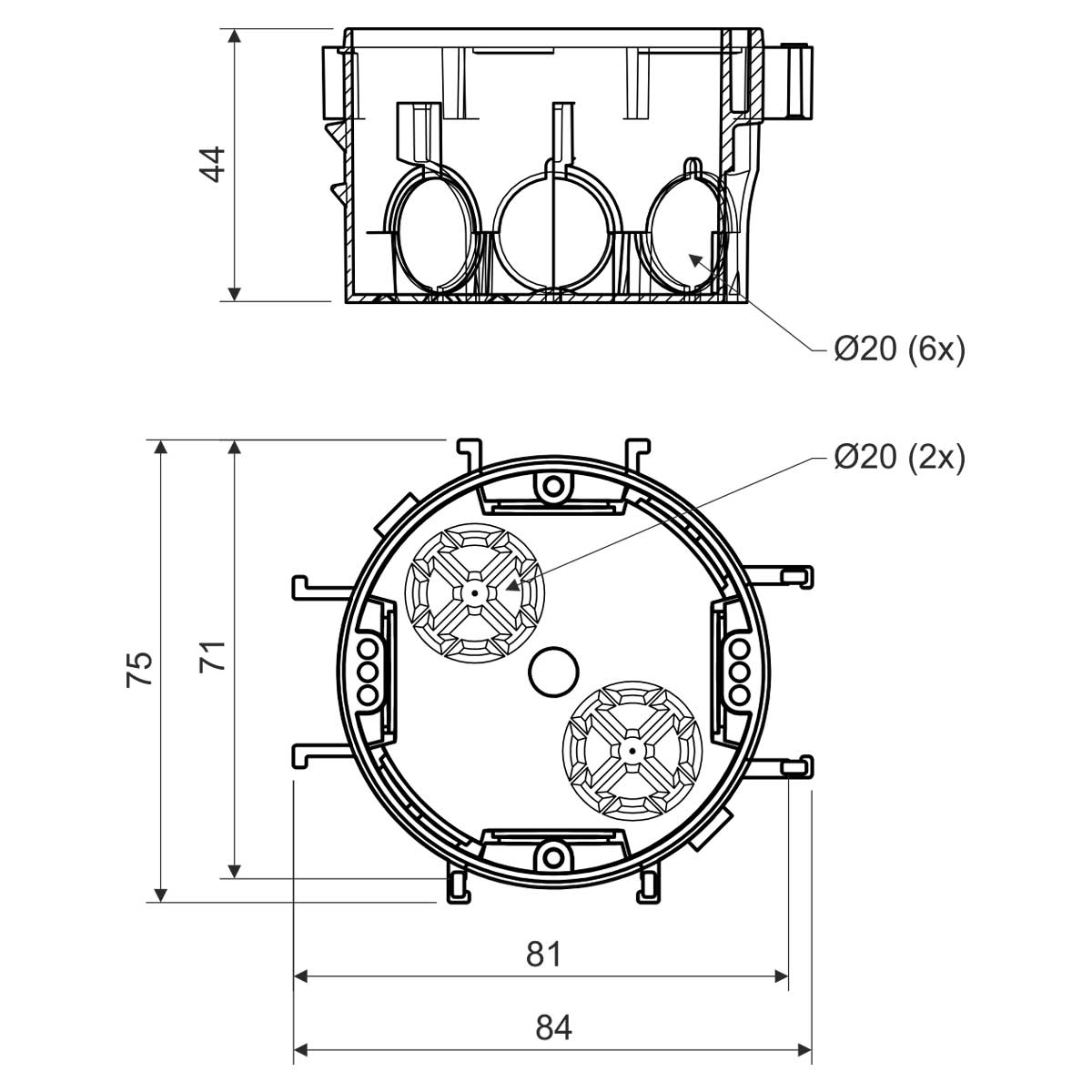

| Distanța dintre 2 doze | 71/81 mm |
| Permite instalarea aparatajului dublu | yes |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare cartons freely in the cardboard, tool screws not mounted on the boxes | |

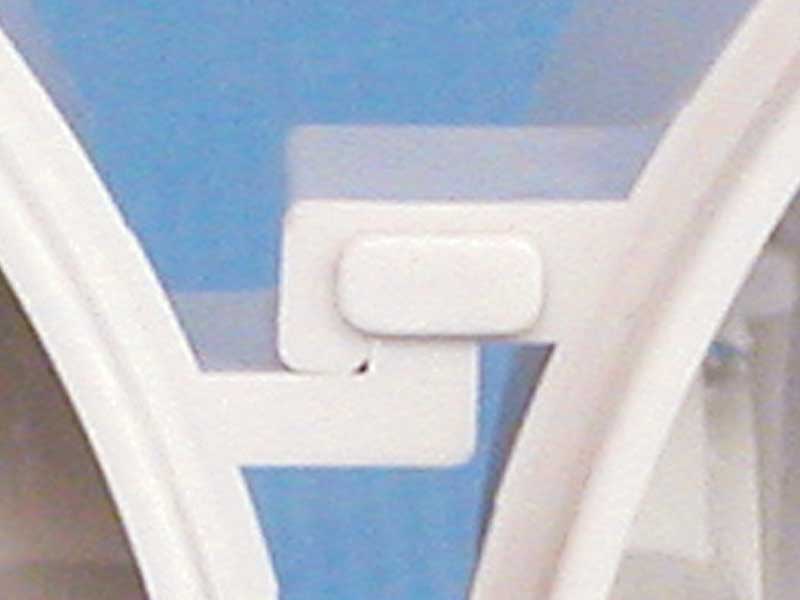

For modern installations in combined frames (spacing 71 mm). Vertical and horizontal connection with a spacing of 71 or 81 mm. Possibility to connect 5 boxes in a series. Possibility to increase axial distance with a spacer DR 18 for the design lines Element, Neo and other.
