Cod Ean8595568910592
Cod vamal85363030
Greutate0.03 kg/pcs
MaterialPVC
Cu suto-stingere30 sec.
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C

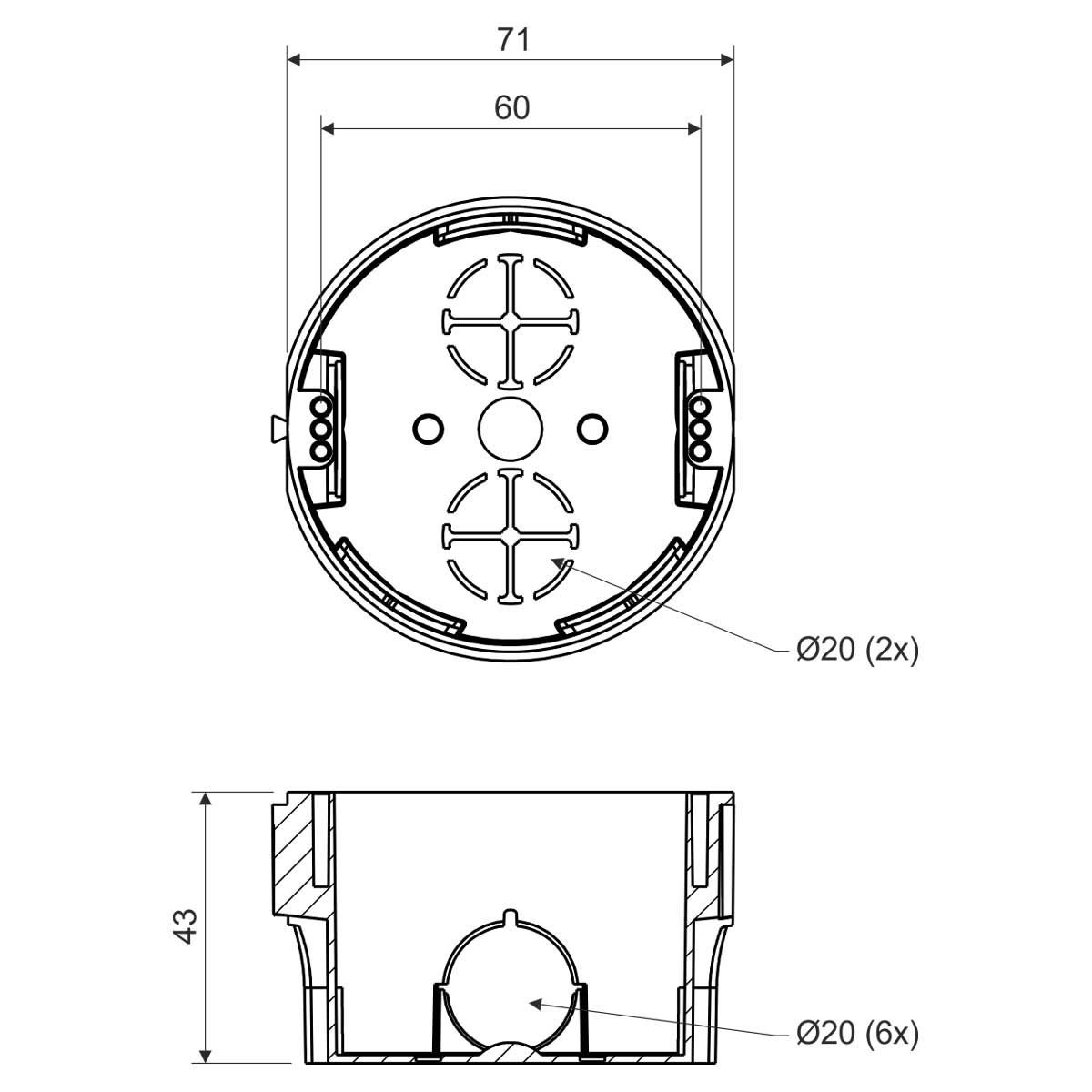

În medie74 mm
Adâncime43 mm
Diametrul orificiului găurit (forat)80 mm
Clasa de reacție la focA1 - D
Distanța dintre 2 doze71

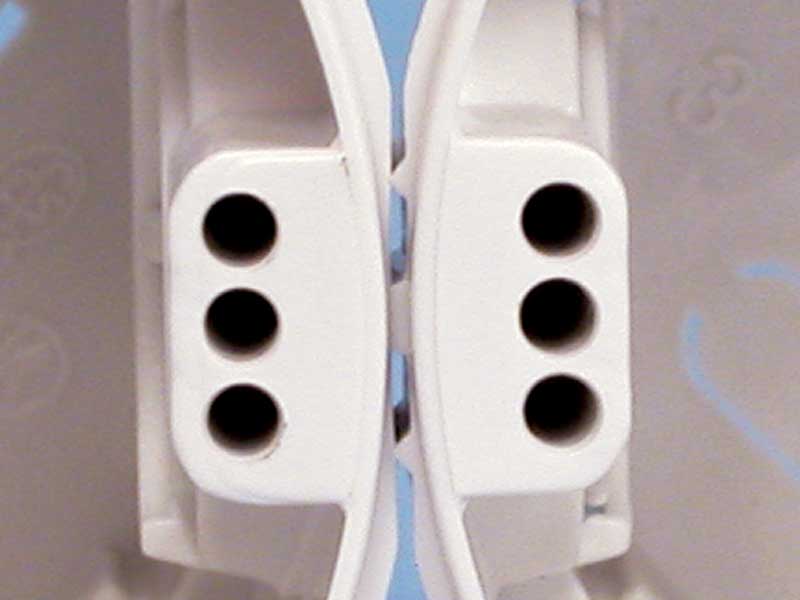

Posibilitate de conectare a 2 doze in serieyes
StandardeČSN EN 60 670-1
Descriere impachetare
box freely in the cardboard, tool screws not mounted on the boxes

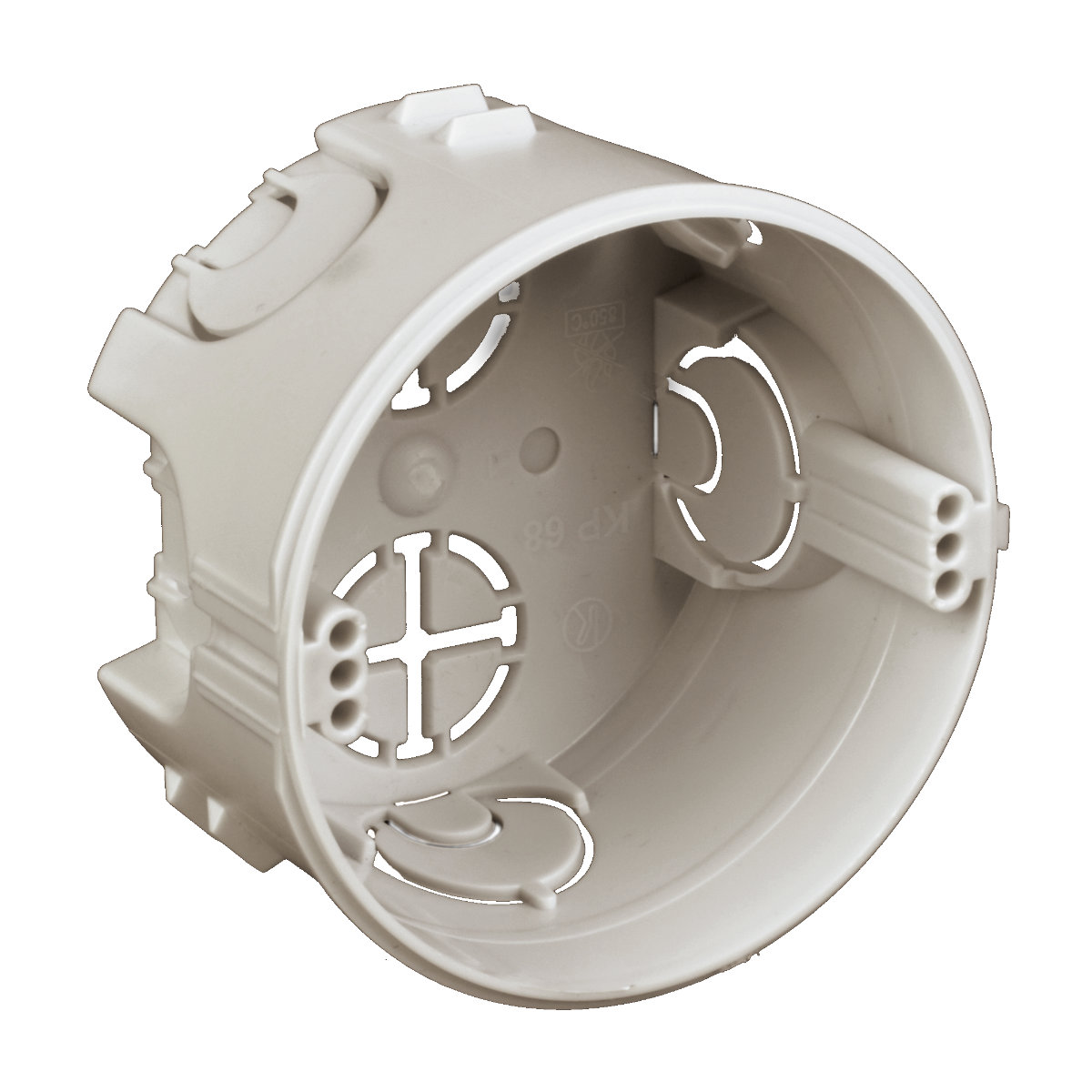

Possibility to join into and continuous series with and spacing of 71 mm. Connection of up to three boxes in and row is recommended. Boxes can be joined with boxes KU 68-1901, KP 68/2 and KPR 68. Universal box for most devices. Sold in packs (100 pcs).
