Cod Ean8595057614758
Cod vamal85381000
Greutate0,0720 kg/buc
MaterialPA
Material fără halogeniyes
Cu suto-stingere30 s
Voltaj nominal<= 500 V
Rezistența la temperatură-30 - +105 °C
Testat cu buclă incinsă850 °C

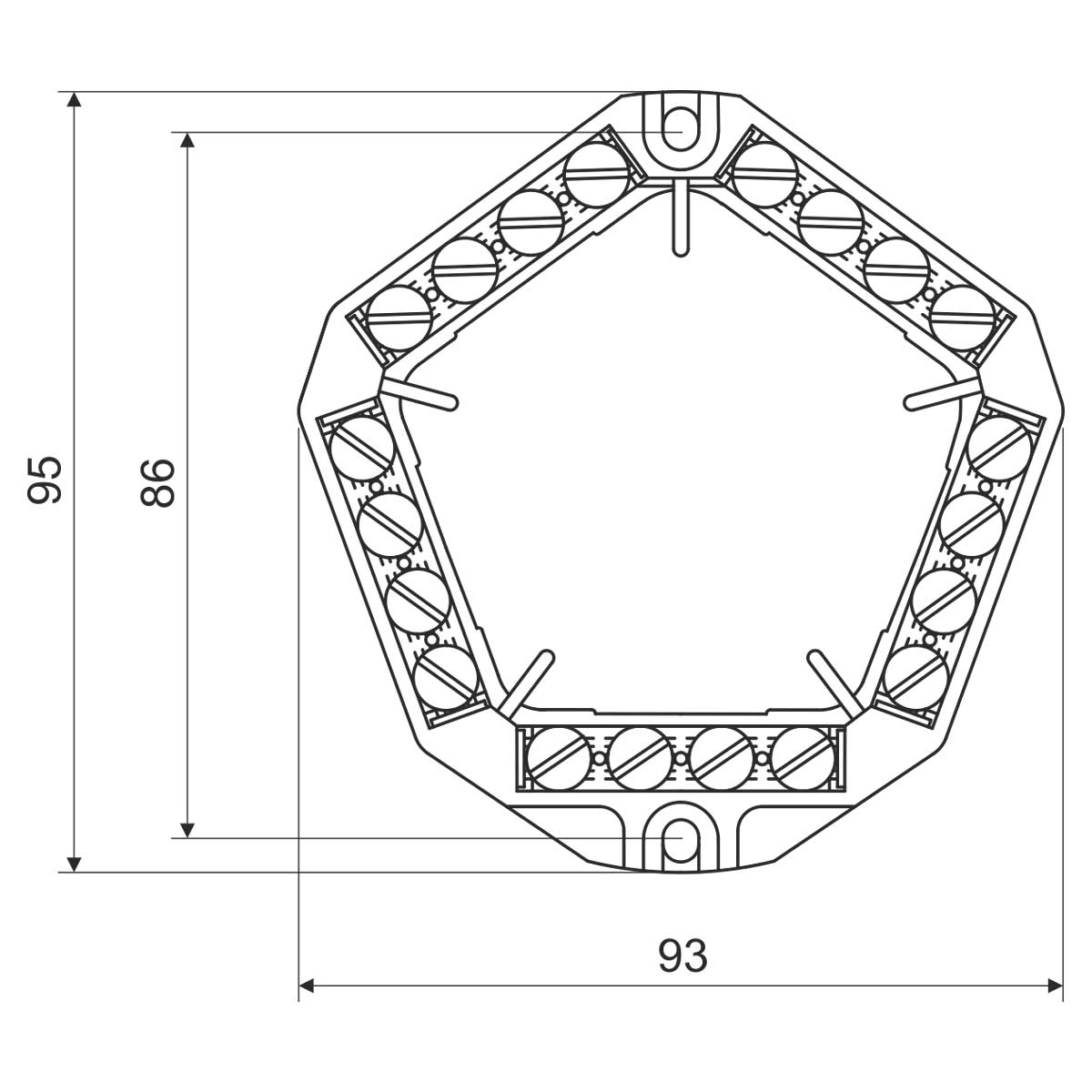

Lătime93 mm
Înăltime95 mm
Grosime16 mm
Sectiune mediană a conductorului conectat20 x 4 mm2
Clasa de reacţie la foc a materialului de fondA1 - F
StandardeČSN EN 60 670-1
Descriere impachetarepacked in shrink foil

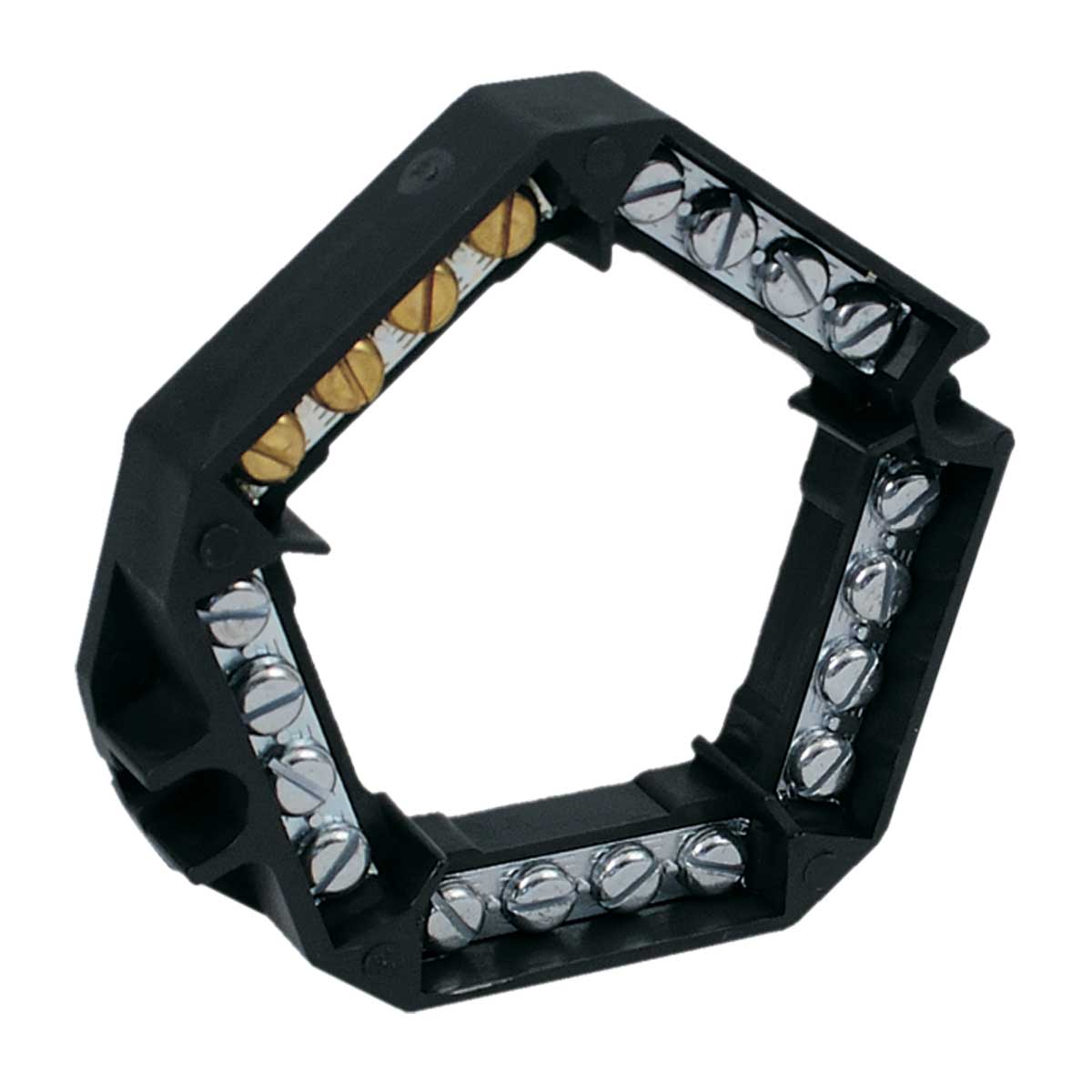

Intended into distribution boxes with fixing spacing of 86 mm (KR 97, KR 97/5, KO 97/LD). Four separate fields for connecting up to four conductors of up to 4 mm2 in diameter. For voltages of up to 500 V.
