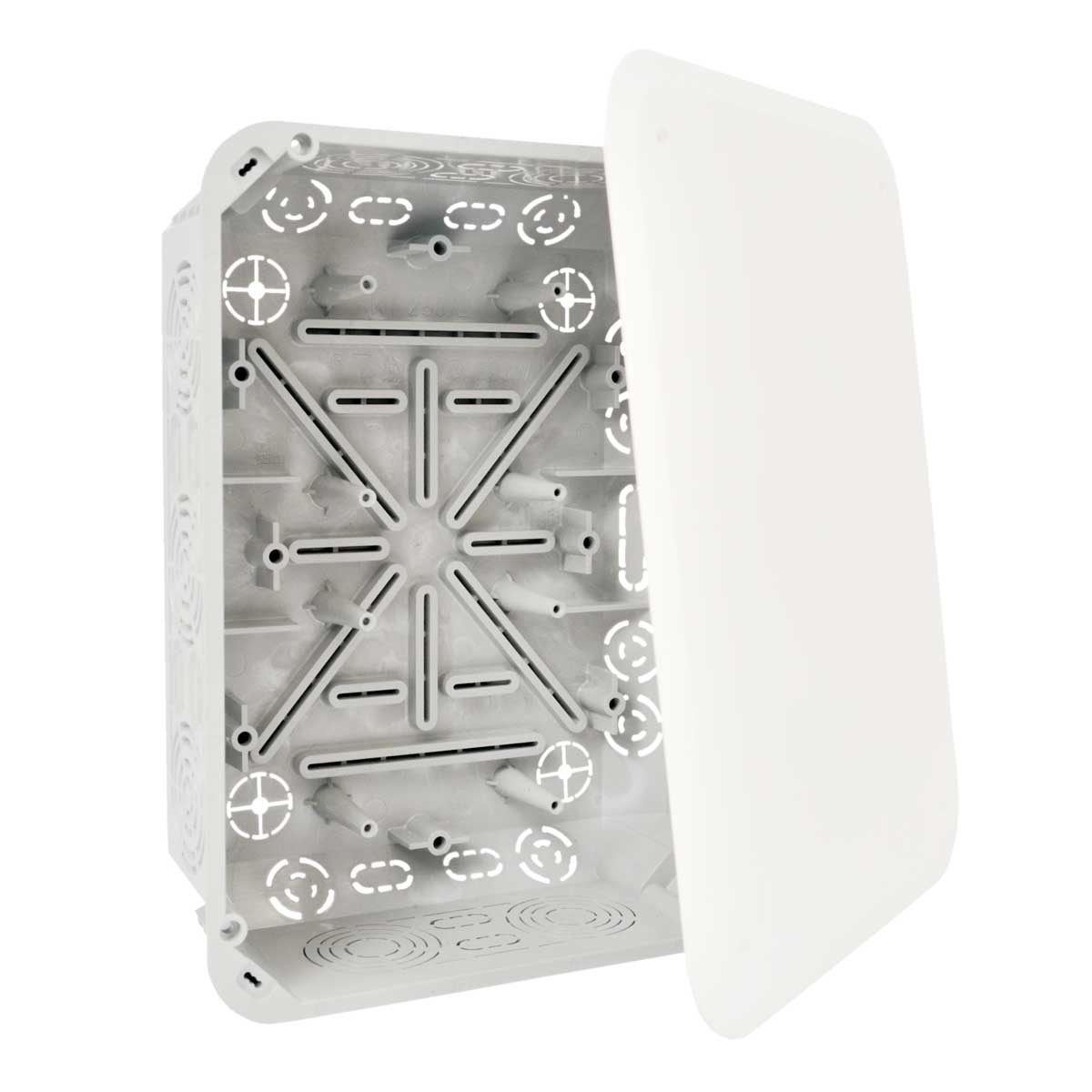

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KT250_1_EN
| Cod Ean | 8595057632738 |
| Cod vamal | 85381000 |
| Greutate | 0,54 kg/pcs |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

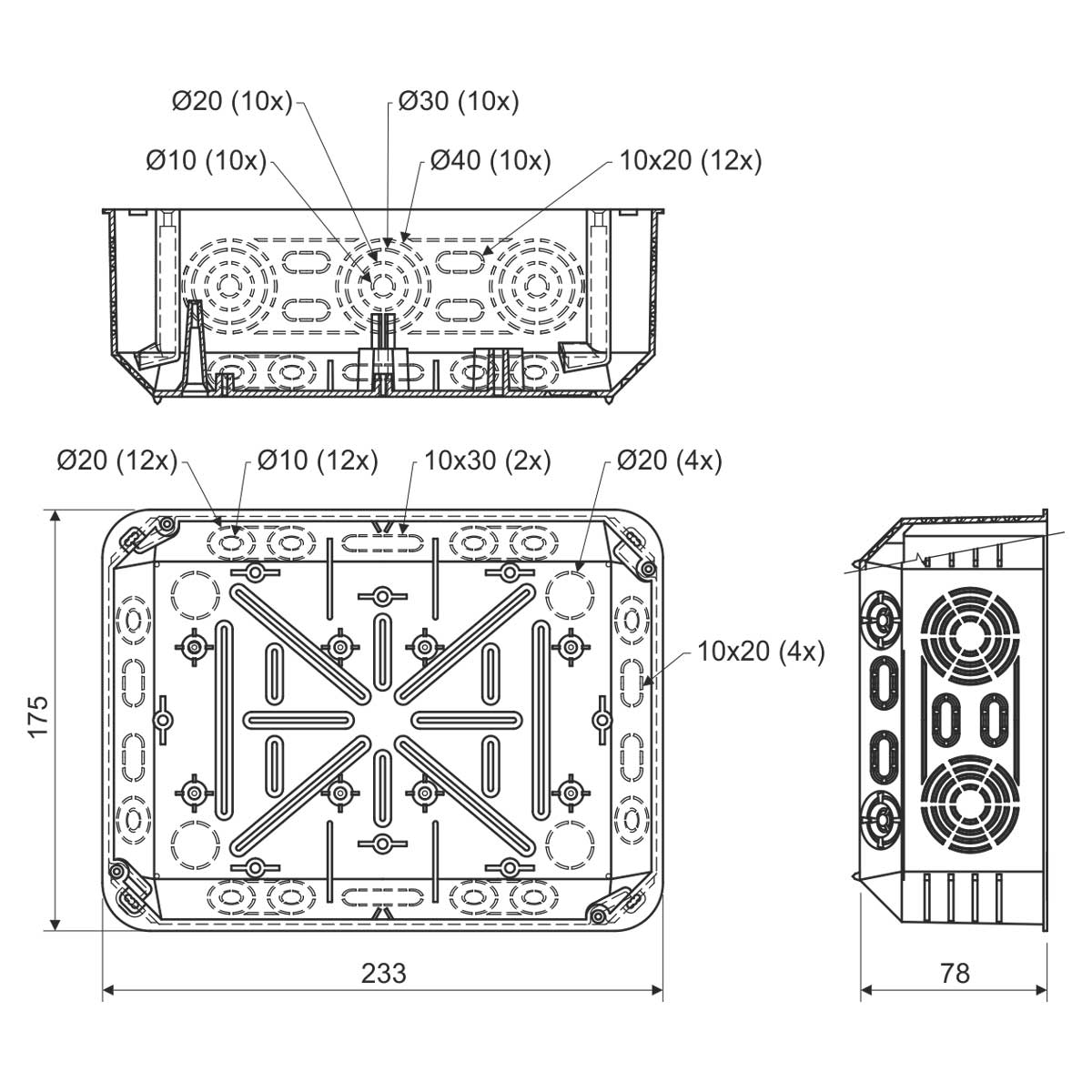

| Lătime | 234 mm |
| Înăltime | 176 mm |
| Adâncime | 79 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - D |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare individual boxes with lids packed in shrink foil and provided with a label and placed in a carton | |
A large number of knockouts for inserting cables and pipes. Possibility to install support trunking TS 35 and equipotential terminal plate. Option to set the lid using oval holes in the box to the horizontal position. Possibility to break the sidewall for easier cable handling.
