Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KT250_EN
| Cod Ean | 8595057600294 |
| Cod vamal | 85381000 |
| Greutate | 0,71 kg/pcs |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

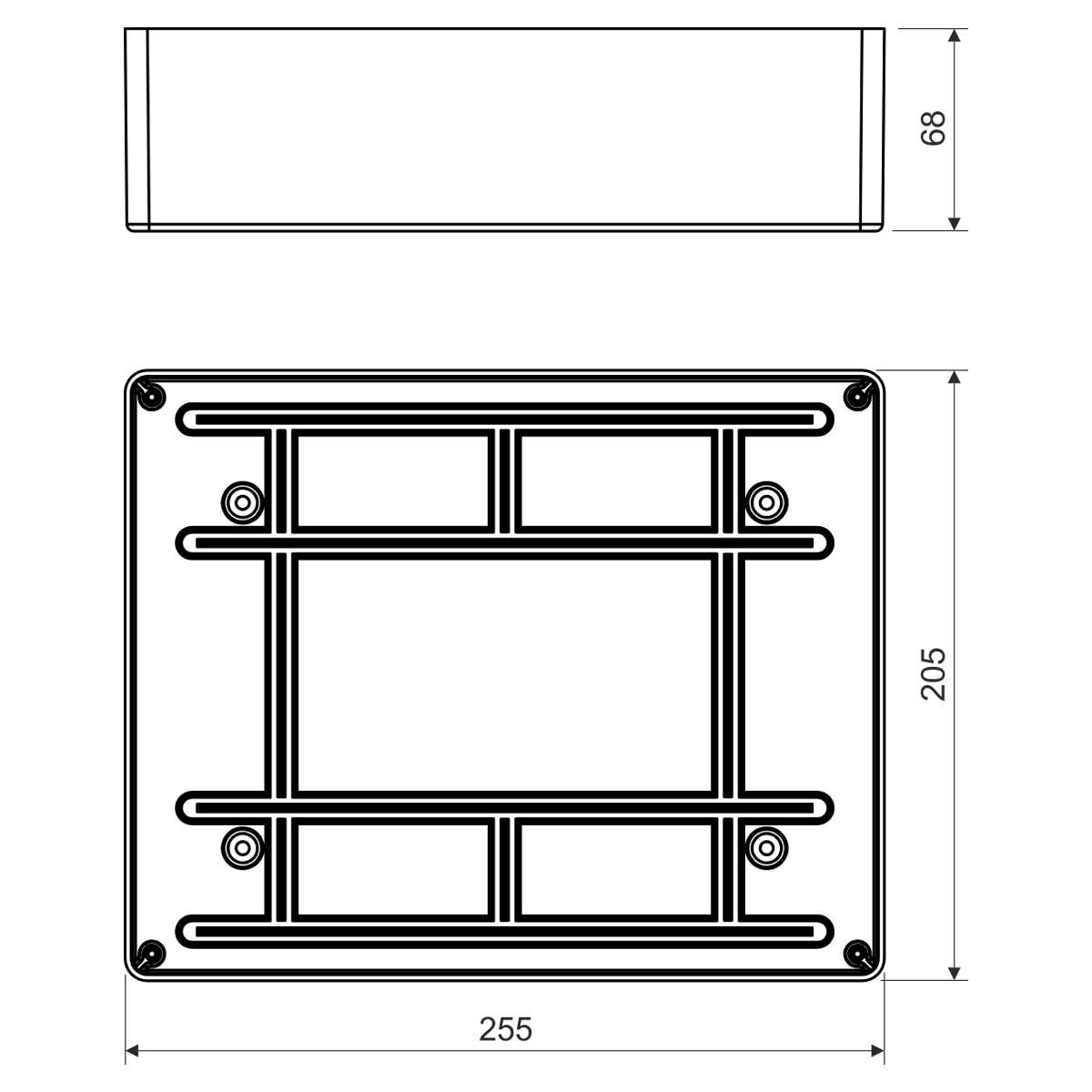

| Lătime | 205 mm |
| Înăltime | 255 mm |
| Adâncime | 66 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - D |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare individual boxes with lids packed in shrink foil and provided with a label and placed in a carton | |

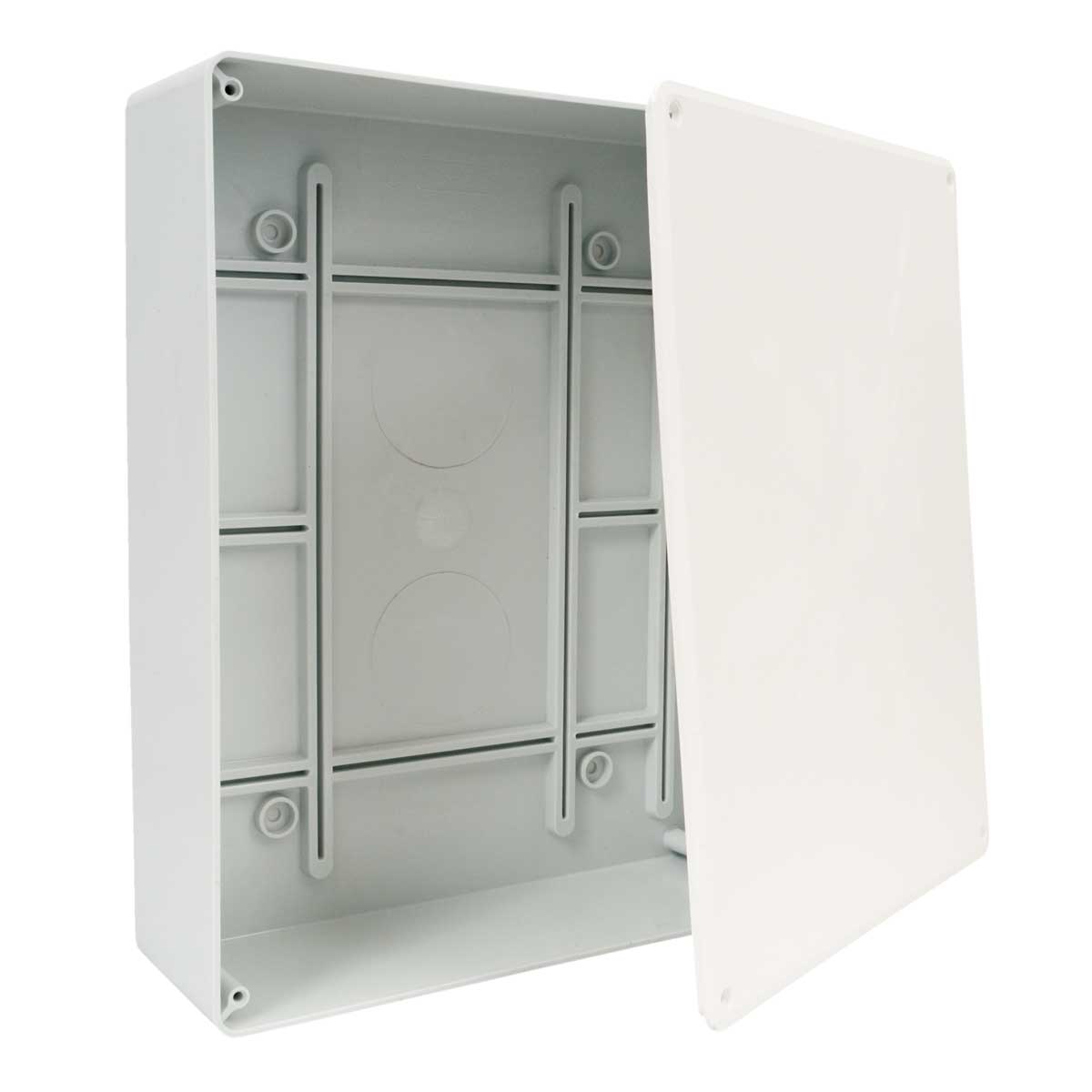

Boxes for communication and power distribution. At the bottom of the box are grooves for mounting the telephone terminals. Suitable for surface mounting - lid follows the size of the box. Boxes without preformed knockouts.
