Cod Ean8595057668652
Cod vamal85363030
Greutate0.25 kg/pcs
MaterialPVC
Material fără plumbyes
Cu suto-stingere30 s
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C

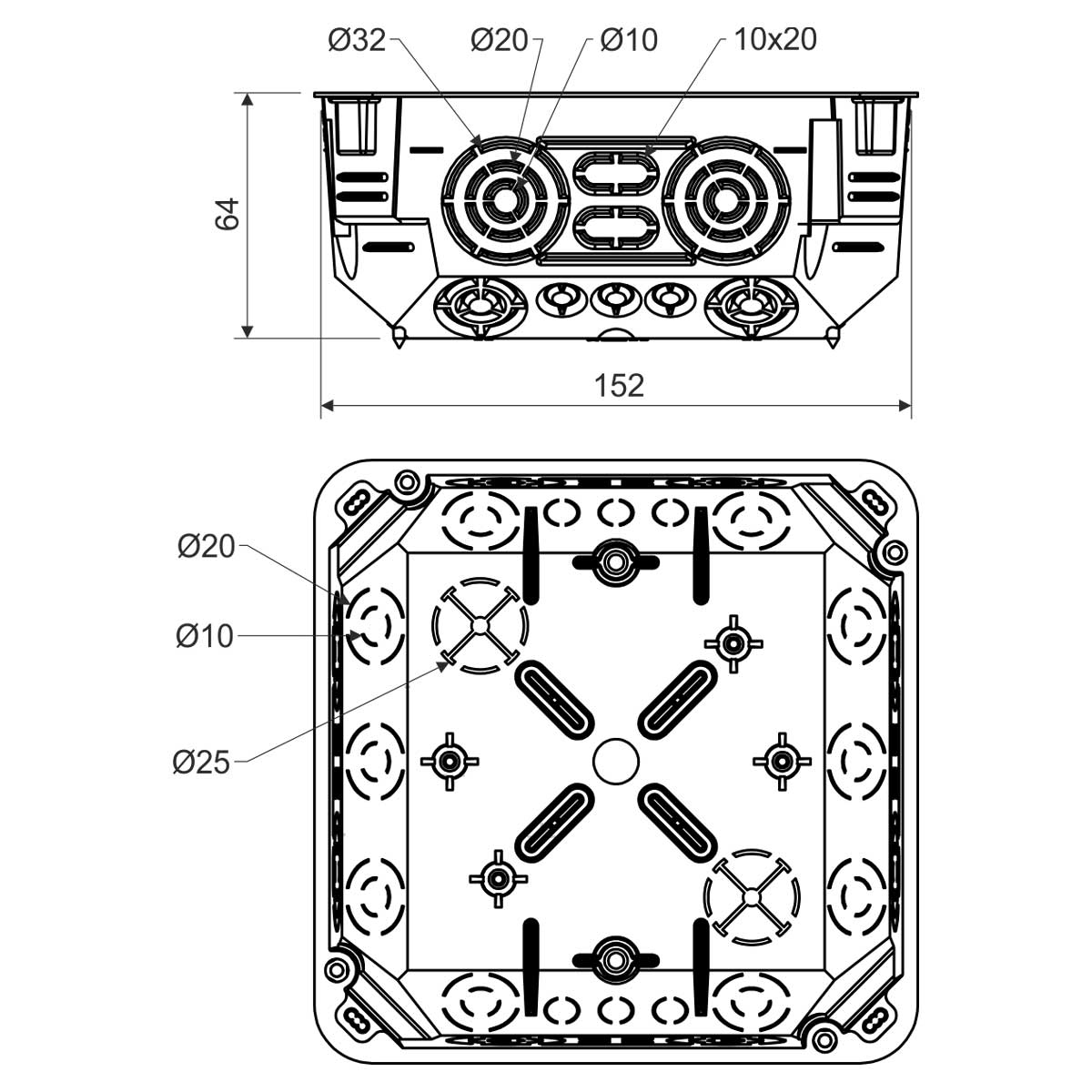

Lătime155 mm
Înăltime155 mm
Adâncime64 mm
Diametrul orificiului găurit (forat)40 mm
Recomandările producătorului
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Clasa de reacție la focA1 - F
Tipuri de protecțieIP30
StandardeČSN EN 60 670-1
Descriere impachetare
the screws for fixing the lid and the screws for fixing to plasterboard are installed in the box, individual boxes together with the lid are packed in shrink wrap

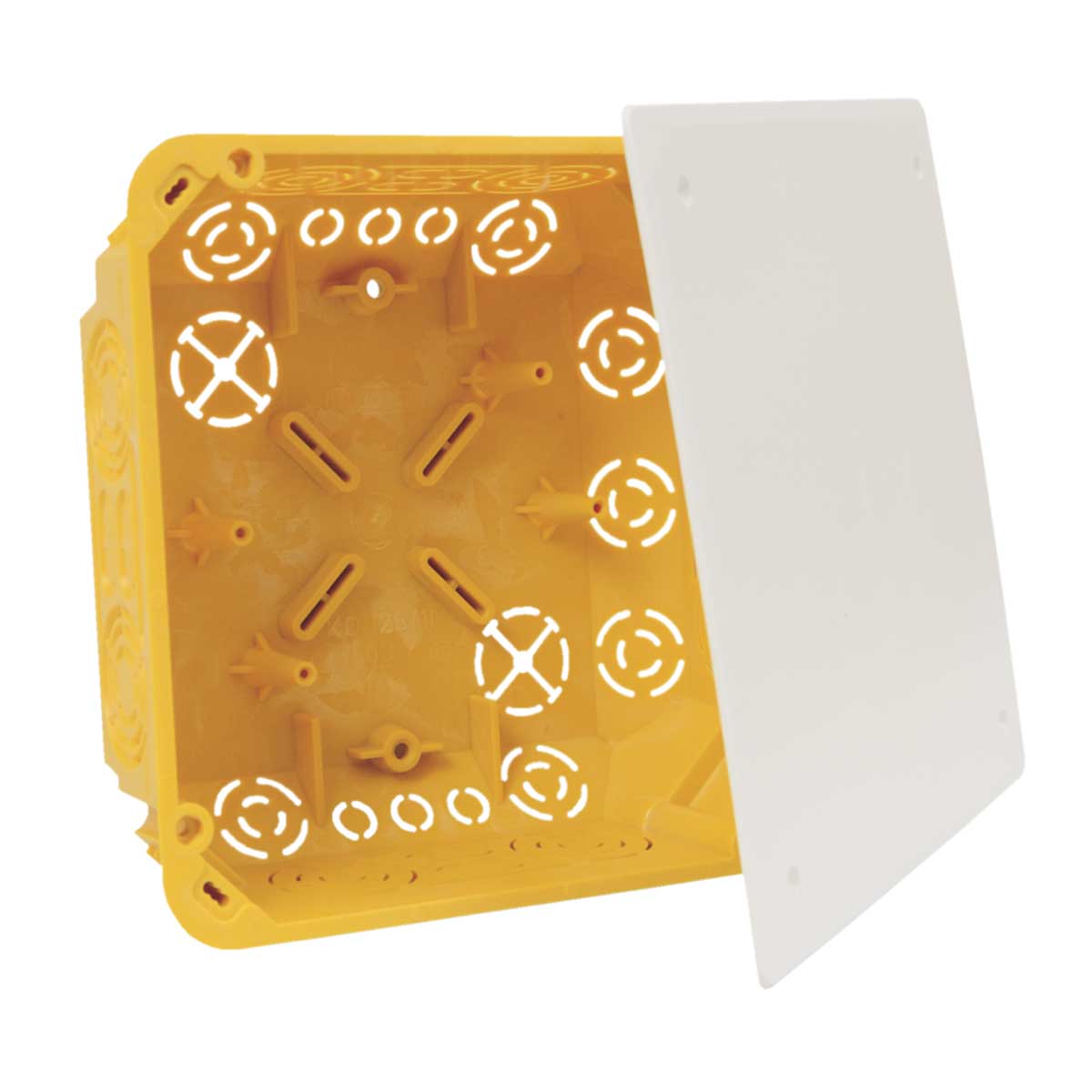

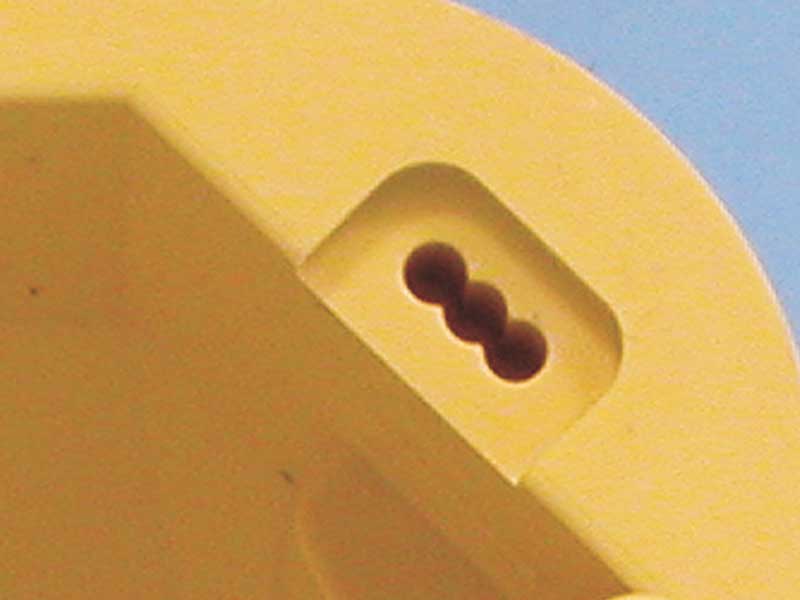

A large number of knockouts for inserting cables and pipes. Possibility to install the support trunking TS 35. Possibility to set the lid in a horizontal position. Possibility to break the sidewall for easier cable handling. Outer side of the bottom contains holes for marking drill holes. Mounting screws are fitted with a triple thread for quick installation. The IP30 protection complys a box fitted with a lid.
