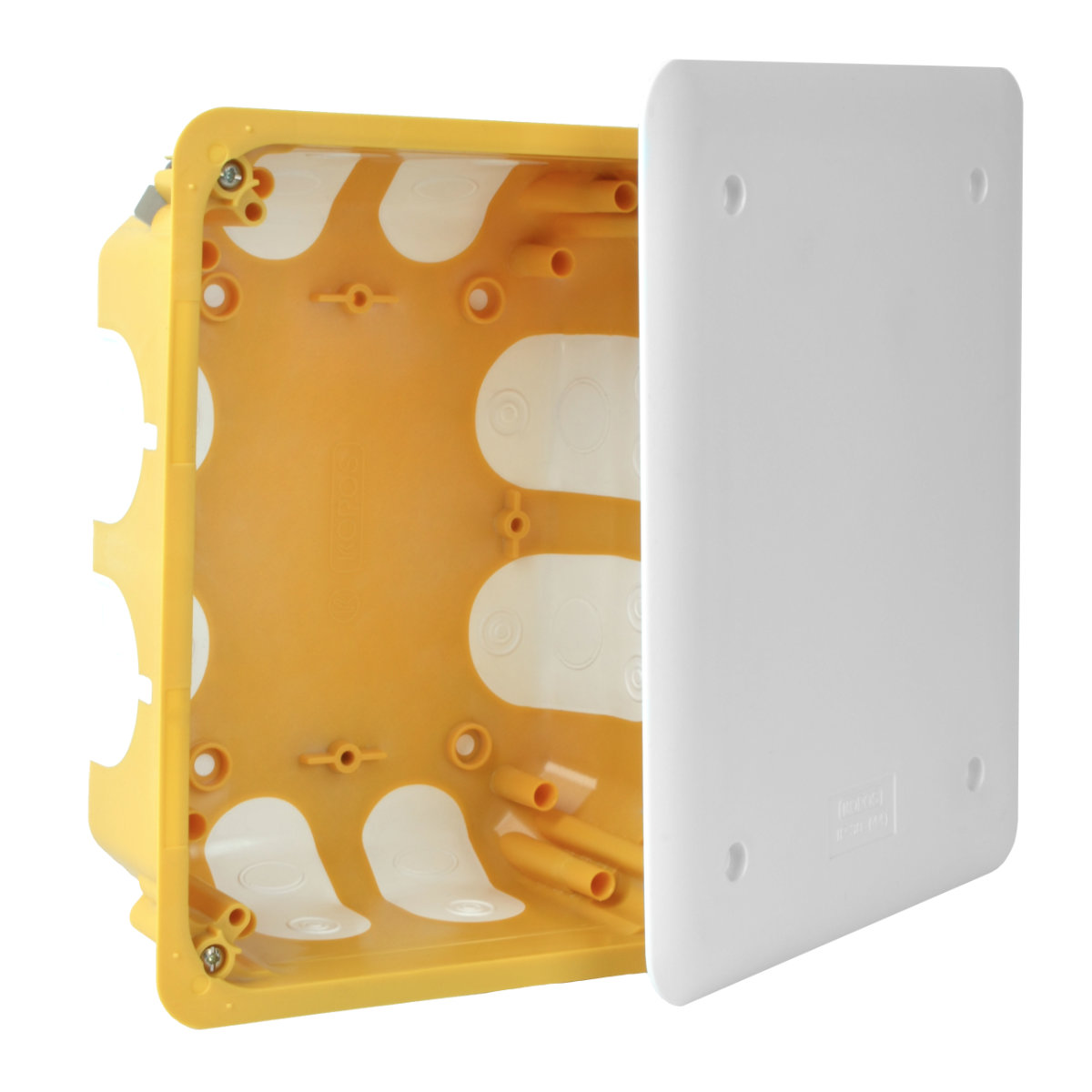

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
Cod Ean8595568932600
Cod vamal39259080
Greutate0,31 kg/pcs
Material fără plumbyes
Izolare fonicăyes
Cu suto-stingere30 s
Voltaj nominal<= 500 V
Curent nominal<= 16 A
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C

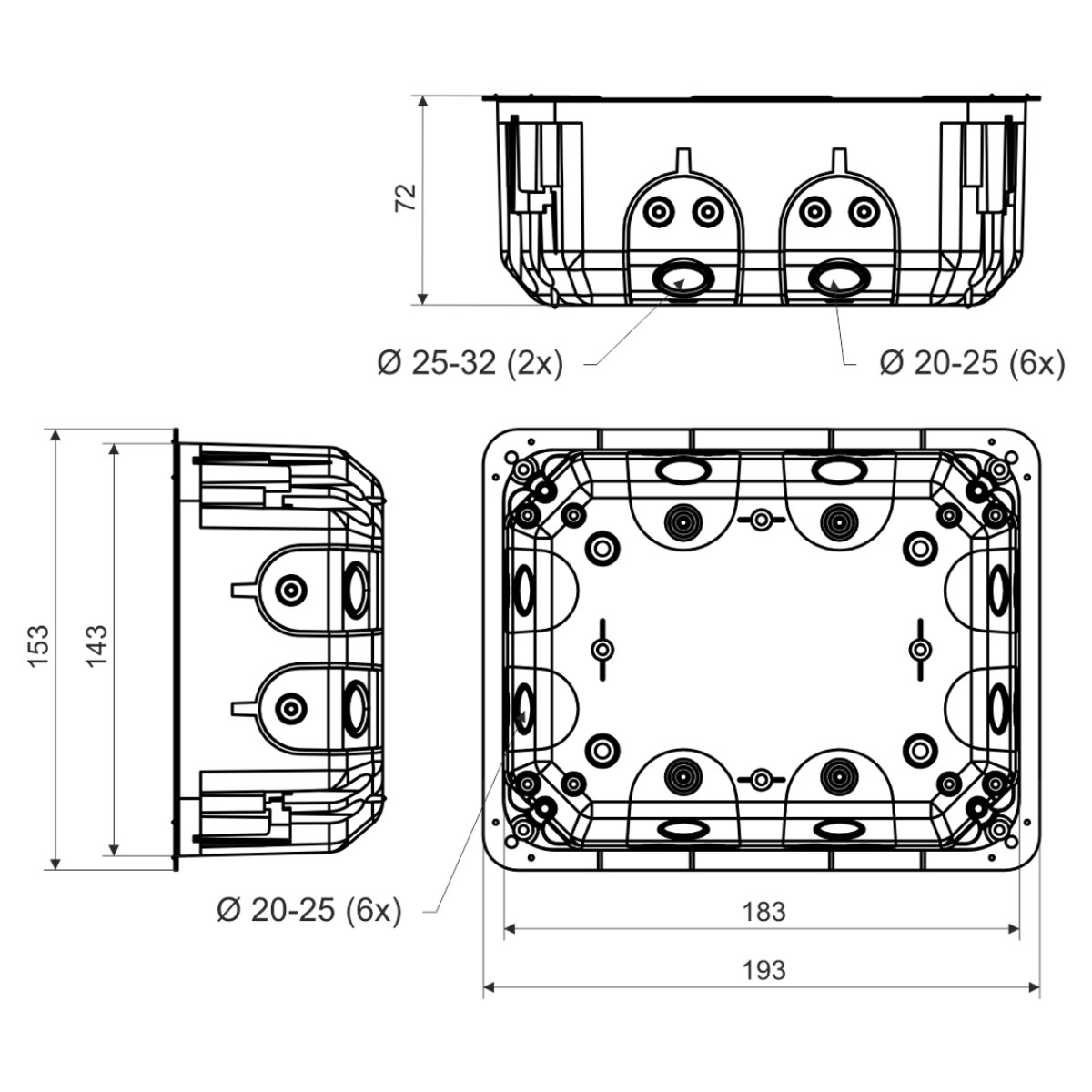

Lătime193 mm
Înăltime153 mm
Adâncime72 mm
Diametrul orificiului găurit (forat)40 mm
Recomandările producătorului
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Clasa de reacție la focA1 - F
Tipuri de protecțieIP30
StandardeČSN EN 60 670-1
Descriere impachetare
installed mounting screws and feets, inserted stainless steel screws for fixing the lid, individual boxes together with the lid sealed in shrink foil

Possibility of installing the TS 35 support rail. On the outside of the bottom of the box, tips indicate the drilling points. Possibility of marking the hole for installation using protrusions on the rim of the box. Inlet openings made of flexible material. The cable or pipe is installed by tearing out the pre-pressed inlet on the flexible membranes and inserting the cable or pipe into the created hole. Ensured airtightness of the passage even when the cable or pipe is inserted. Prevents airflow through installations. Suitable for low-energy or passive houses. It is not necessary to countersink the edge of the plasterboard during installation. Mounting screws have a double thread for quick installation. Protected by a European industrial design trademark. The lid for the box can be purchased separately as a spare part V 180_HB.
