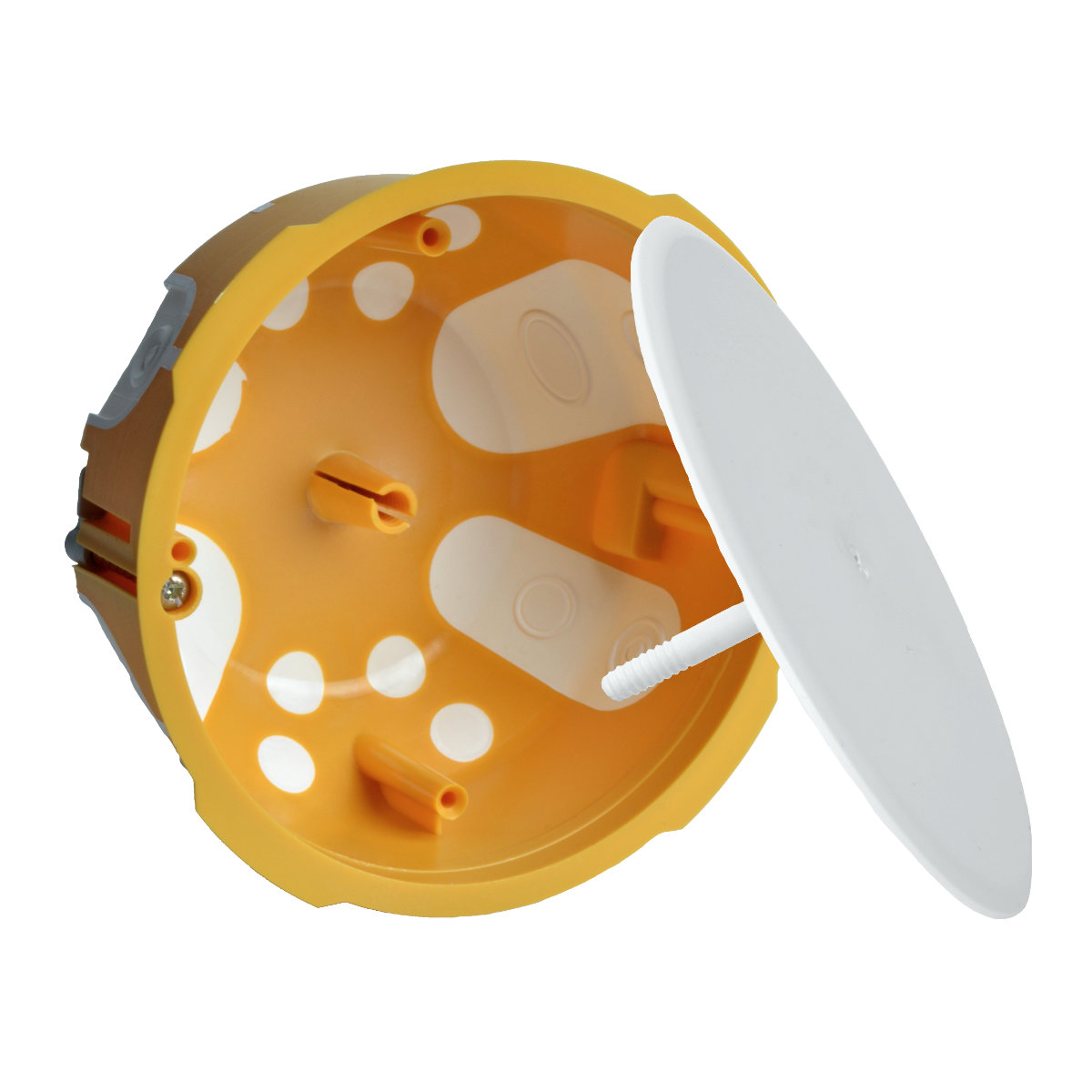

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
Cod Ean8595568932594
Cod vamal39259080
Greutate0,09 kg/pcs
MaterialPVC
Material fără plumbyes
Izolare fonicăyes
Cu suto-stingere30 s
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C

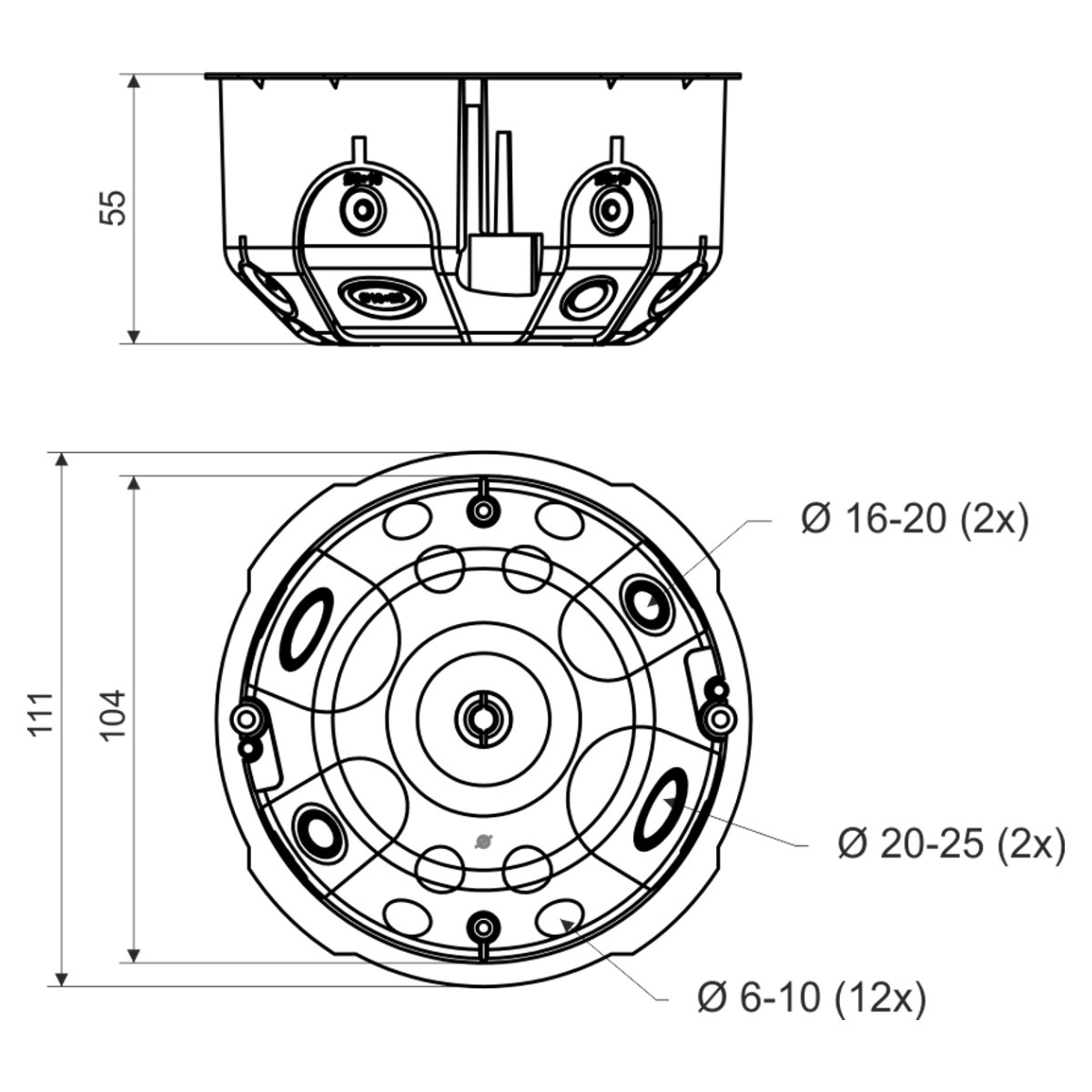

În medie104 mm
Adâncime55 mm
Diametrul orificiului găurit (forat)105 mm
Recomandările producătorului
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Clasa de reacţie la foc a materialului de fondA1 - F
Tipuri de protecțieIP 30
StandardeČSN EN 60 670-1
Descriere impachetare
the box is equipped with screws for mounting in plasterboard and with the enclosed lids inserted separately into the carton

Sufficient space to create larger electrical installations. The inlet openings are made of flexible material. Installation of the cable or pipe is done by tearing out the pre-pressed inlet on the flexible membranes and inserting the cable or pipe into the resulting hole. Ensured airtightness of the passage even when the cable or pipe is inserted. Prevents airflow through installations. Suitable for low-energy or passive houses. It is not necessary to countersink the edge of the plasterboard during installation. The double thread mounting screws for quick installation provided. Protected by a European industrial design trademark.
