Cod Ean8595568909169
Cod vamal85381000
Greutate0,44 kg/pcs
Material fără plumbyes
Cu suto-stingere30 s
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C

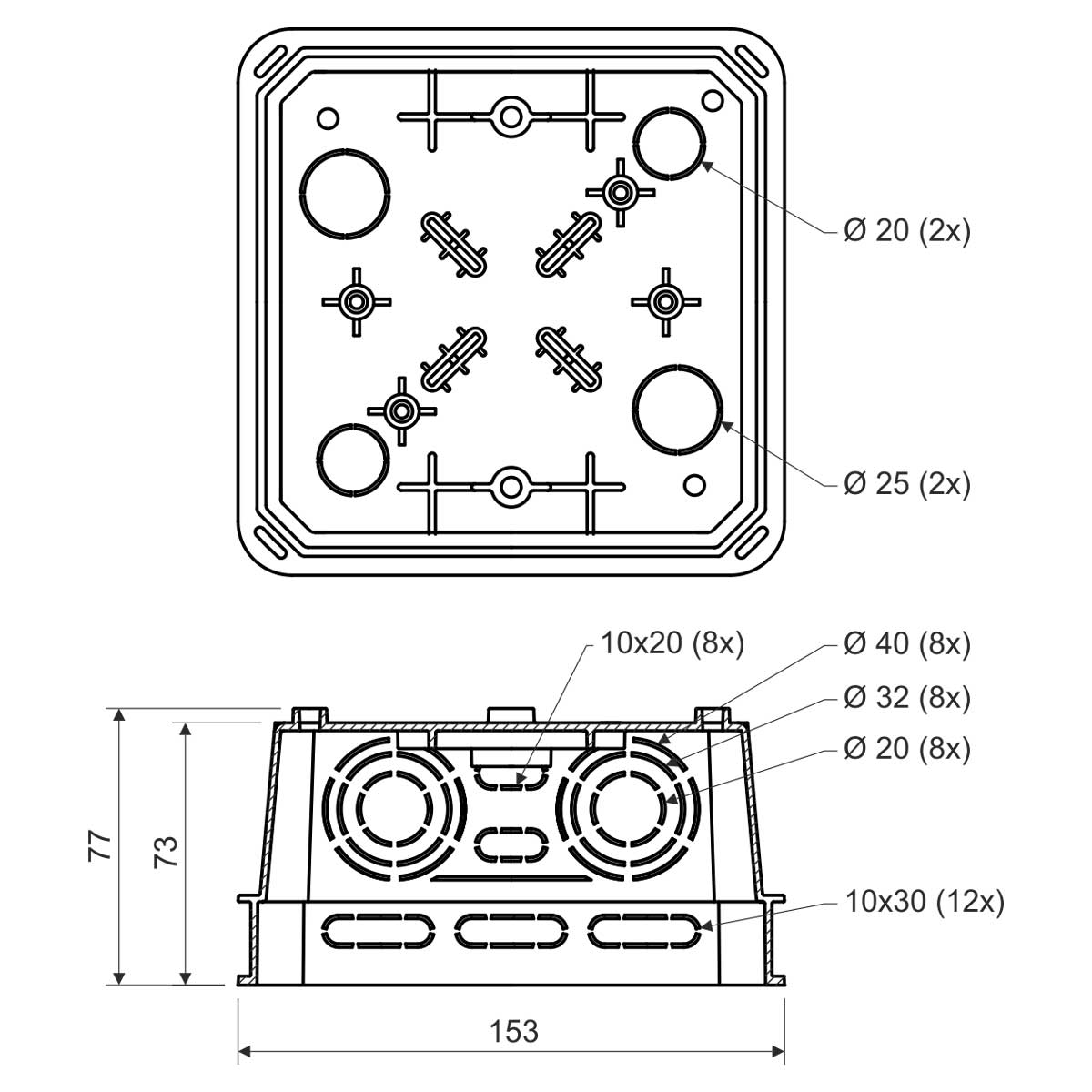

Lătime150 mm
Înăltime150 mm
Adâncime73 mm
Clasa de reacţie la foc a materialului de fondA1 - D
StandardeČSN EN 60 670-1
Descriere impachetare
individual boxes with lids individually packed in shrink foil and provided with a label, screws inserted in package

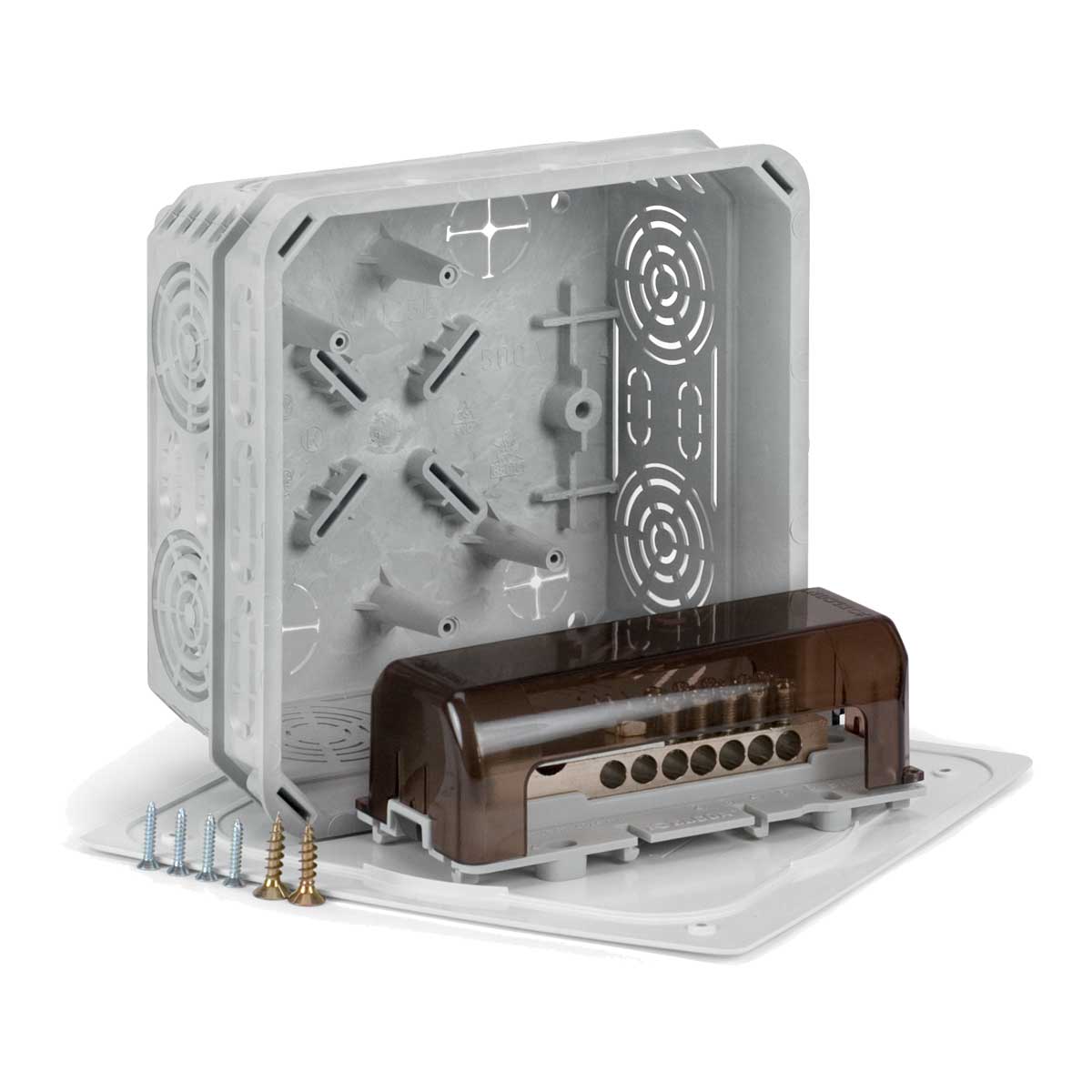

Equipotential terminal plates for 5 wires of 25 mm and 1 flat wire of 30x4 mm. A large number of knockouts for inserting cables and pipes. Possibility to set the lid in and horizontal position. Possibility to break the sidewall for easier cable handling.
