Cod Ean8595057603370
Cod vamal85363030
Greutate0.51 kg/pcs
Culoaredark grey
MaterialPVC
Cu suto-stingere30 sec.
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă650 °C
Lătime167 mm
Înăltime167 mm
Adâncime78 mm
Clasa de reacție la focA1 - D
Extinderea reacției la foc a materialelor de bază
Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1 - F
Tipuri de protecțieIP 54
StandardeČSN EN 60 670-1
Descriere impachetare
the screws inserted in the box, each box is packed in a shrink foil and labeled

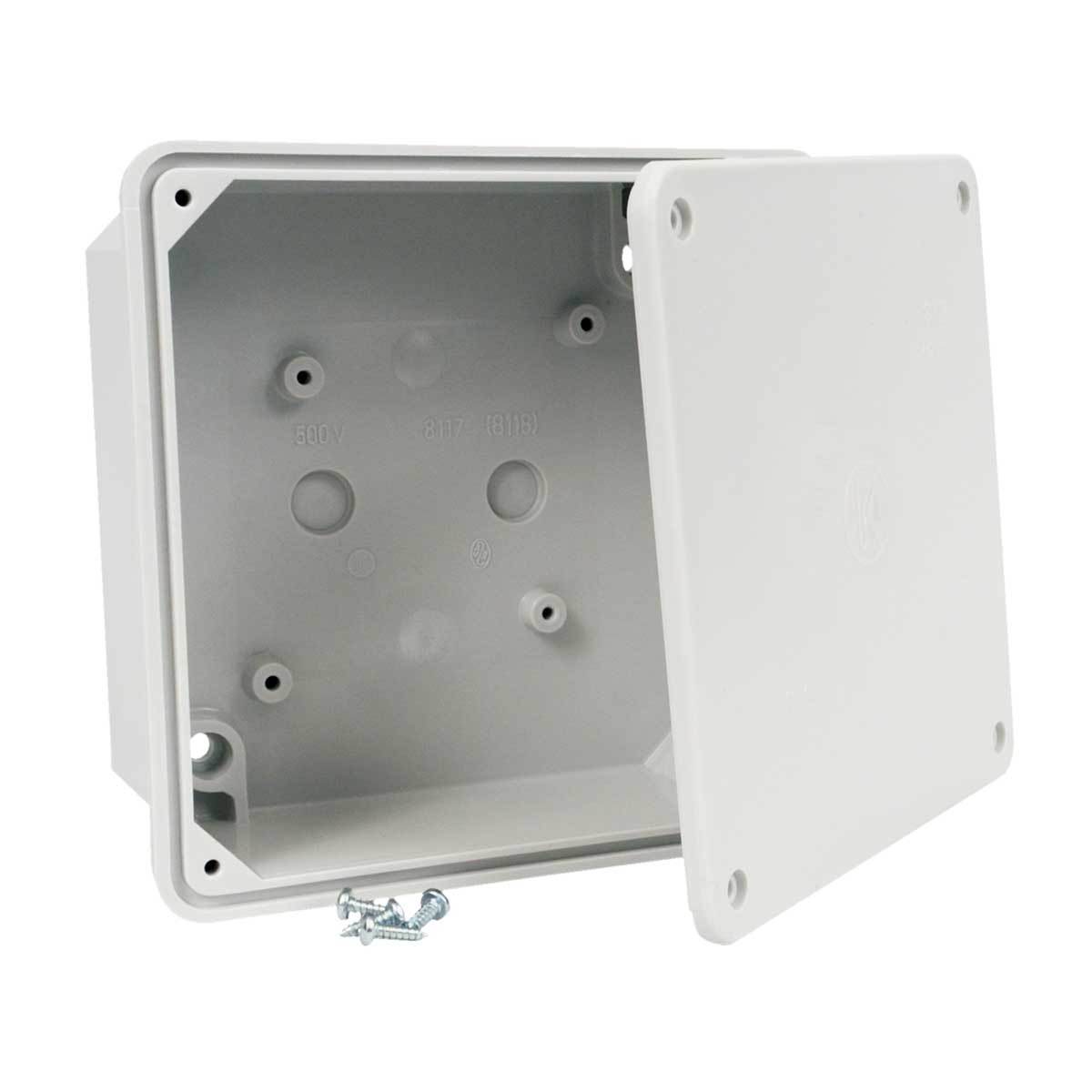

For installation in environment with increased humidity, dust, chemical and corrosion resistance in environments with increased risk of mechanical damage. Closed box without inlets. To install on materials with fire classes E or F, use thermally insulating pad.
