KSK175_DPO_EN
| Cod Ean | 8595568924346 |
| Cod vamal | 85381000 |
| Greutate | 0,65 kg/pcs |
| Lătime | 177 mm |
| Înăltime | 126 mm |
| Adâncime | 90 mm |
| Funcționalitate în foc | P90-R, E90, PS90 |
| Standardele cu privire lade rezistența la foc | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
Note for system with maintained functionality in fire:

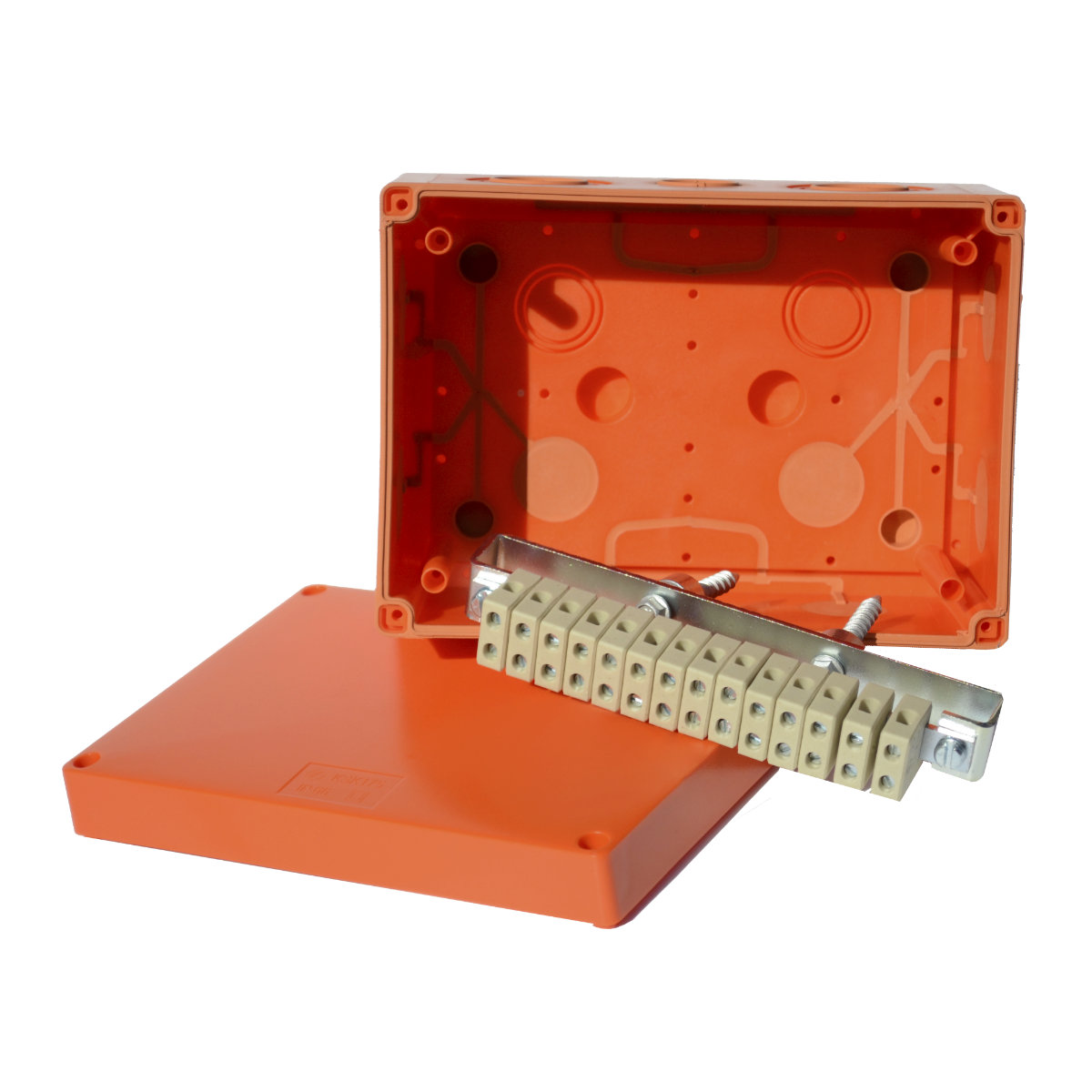

The box is equipped with a ceramic terminal block maintaining operability in fire. They are fixed using the attached bolts for concrete (included in the package).
The boxes are designed for use only for communication cables with proven functionality during fire. The fire-resistant wiring boxes are made from halogen-free material and
contain soft conduits to make it easier to cables into the box.
You find more information in the catalogue Systems with maintained functionality in fire.
