Imagine ilustrativă
KSK 100_PO6J
Cod Ean8595568934680
Cod vamal85381000
Greutate0,2300 kg/pcs

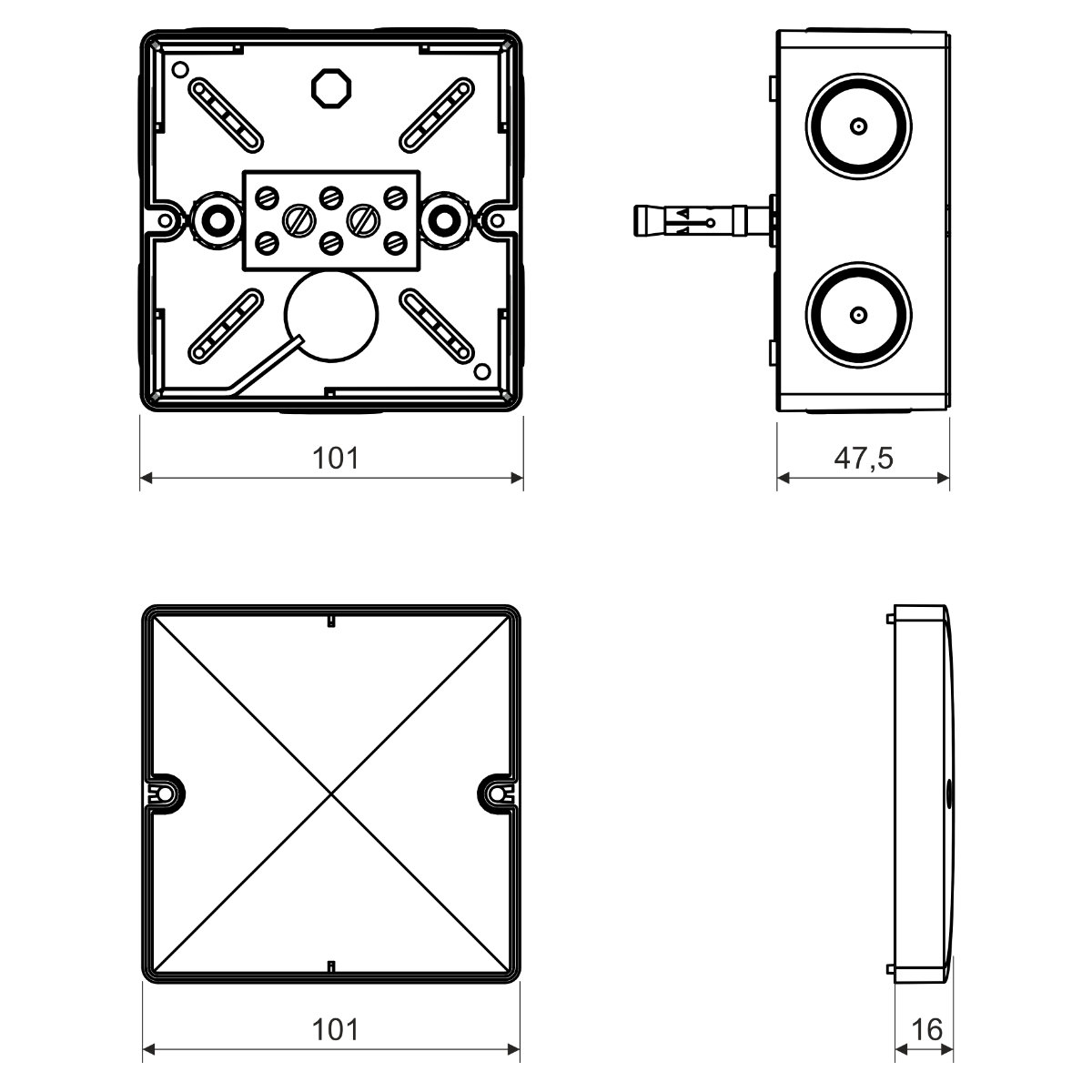

Lătime101 mm
Înăltime101 mm
Adâncime63,5 mm
Funcționalitate în focP90-R, E90, PS90
Standardele cu privire lade rezistența la focČSN 73 0895, DIN 4102-12, STN 92 0205

Note for system with maintained functionality in fire:

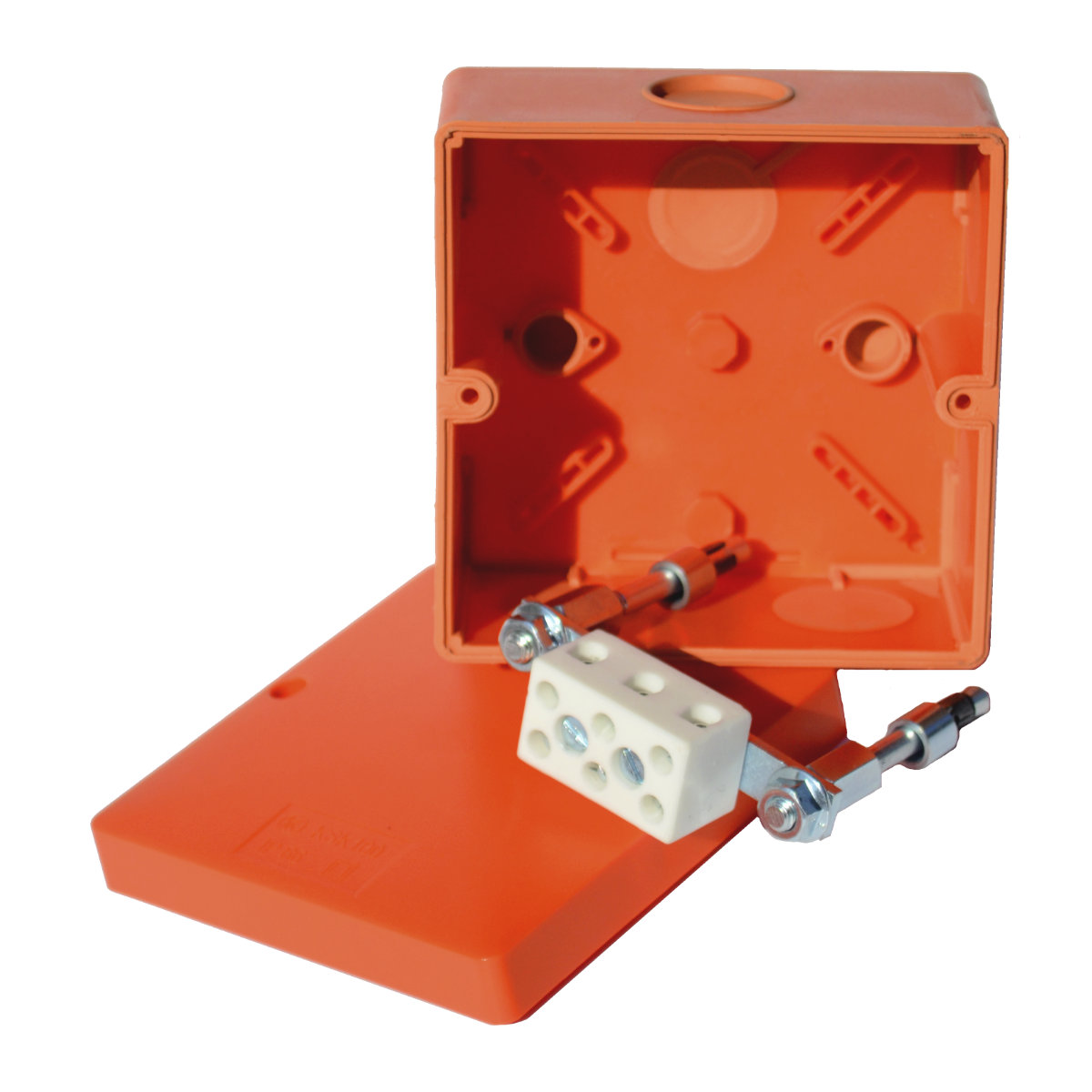

The box is equipped with a ceramic terminal block - 3 poles, with maintained functionality in fire. It is fastened using anchors for use in concrete (supplied). The boxes are designed for use only for power cables with proven functionality during fire. The fire-resistant wiring boxes are made from halogen-free material and contain soft conduits to make it easier to route cables into the box.
You find more information in the catalogue Systems with maintained functionality in fire.
