KSK 175_2PO10
To download 3D models, please login or create an account and request access.
Cod Ean8595568924353
Cod vamal85381000
Greutate0,67 kg/pcs
Lătime177 mm
Înăltime126 mm
Adâncime90 mm
Funcționalitate în focP90-R, E90, PS90
Standardele cu privire lade rezistența la focČSN 73 0895, DIN 4102-12, STN 92 0205

Note for system with maintained functionality in fire:

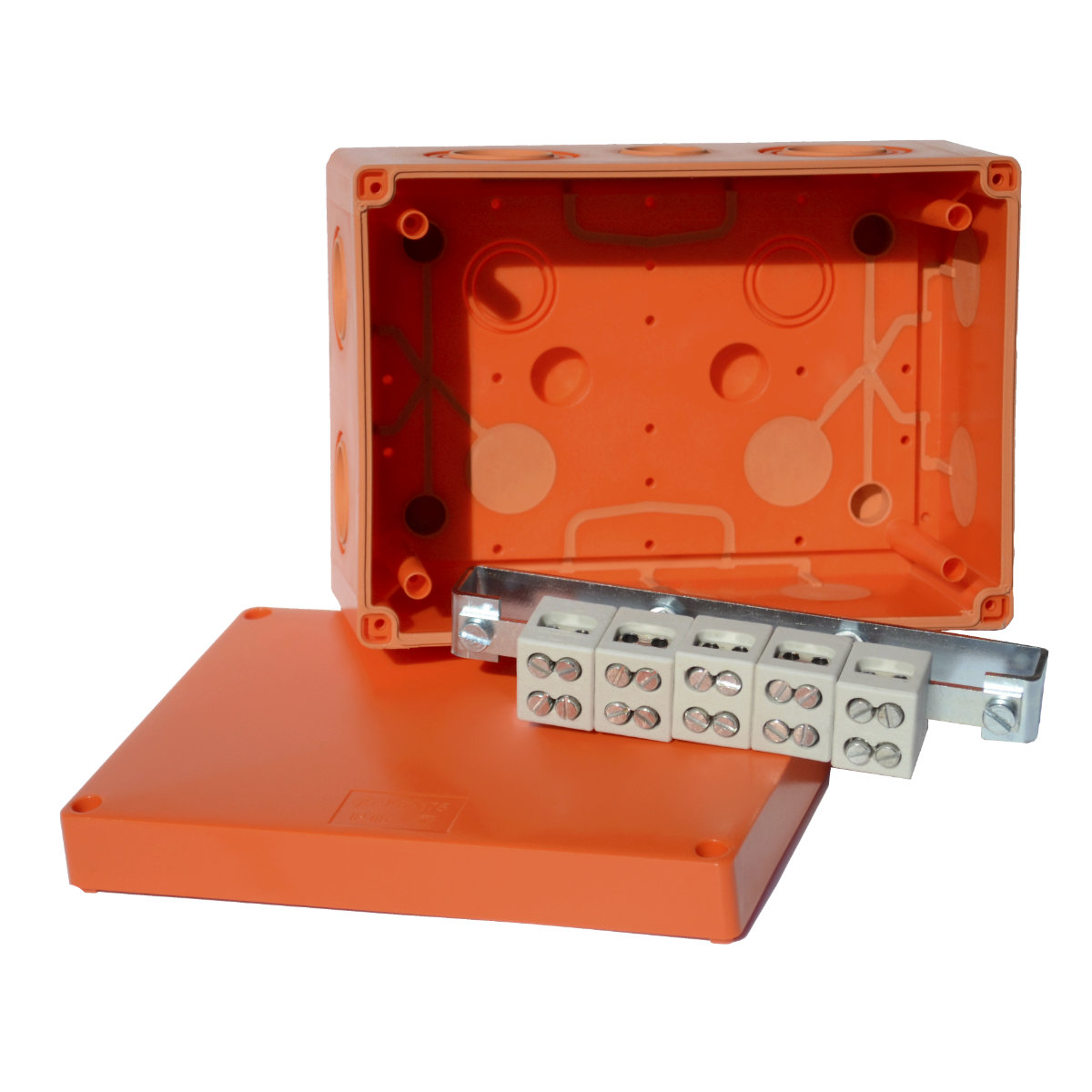

Boxes are fitted with 5 ceramic terminal blocks for installing up to 4 cable wires onto a one potential. It is fastened using anchors for use in concrete (supplied). The boxes are designed for use only for power cables with proven functionality during fire. The fire-resistant wiring boxes are made from halogen-free material and contain soft conduits to make it easier to cables into the box.
You find more information in the catalogue Systems with maintained functionality in fire.
