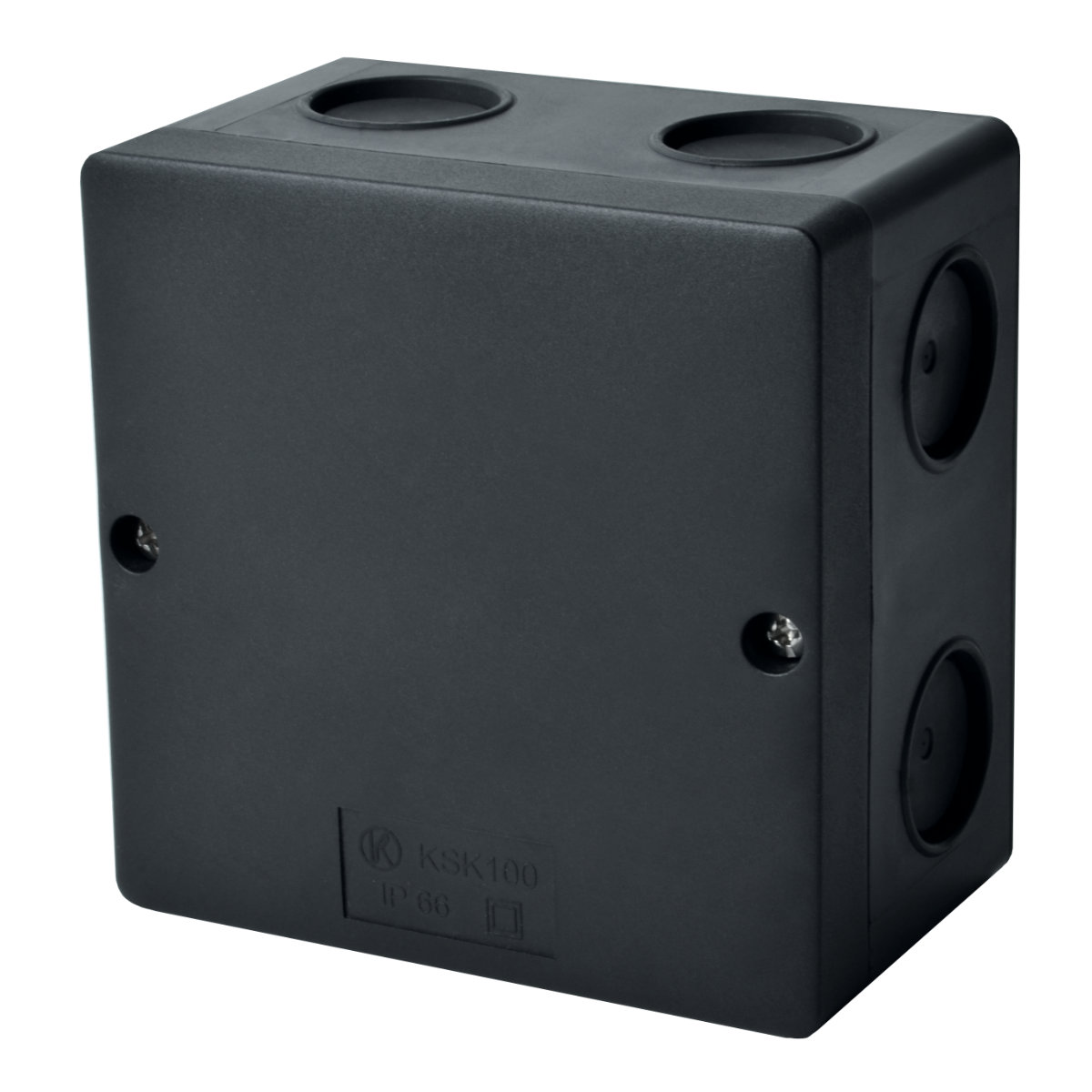

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KSK100_EN
| Cod Ean | 8595568930927 |
| Cod vamal | 39259080 |
| Greutate | 0,16 kg/pcs |
| Culoare | black |
| Material | PP, lid - PA |
| Material fără halogeni | yes |
| Material fără plumb | yes |
| Stabil la UV/Material stabil la UV | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 1000 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -25 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

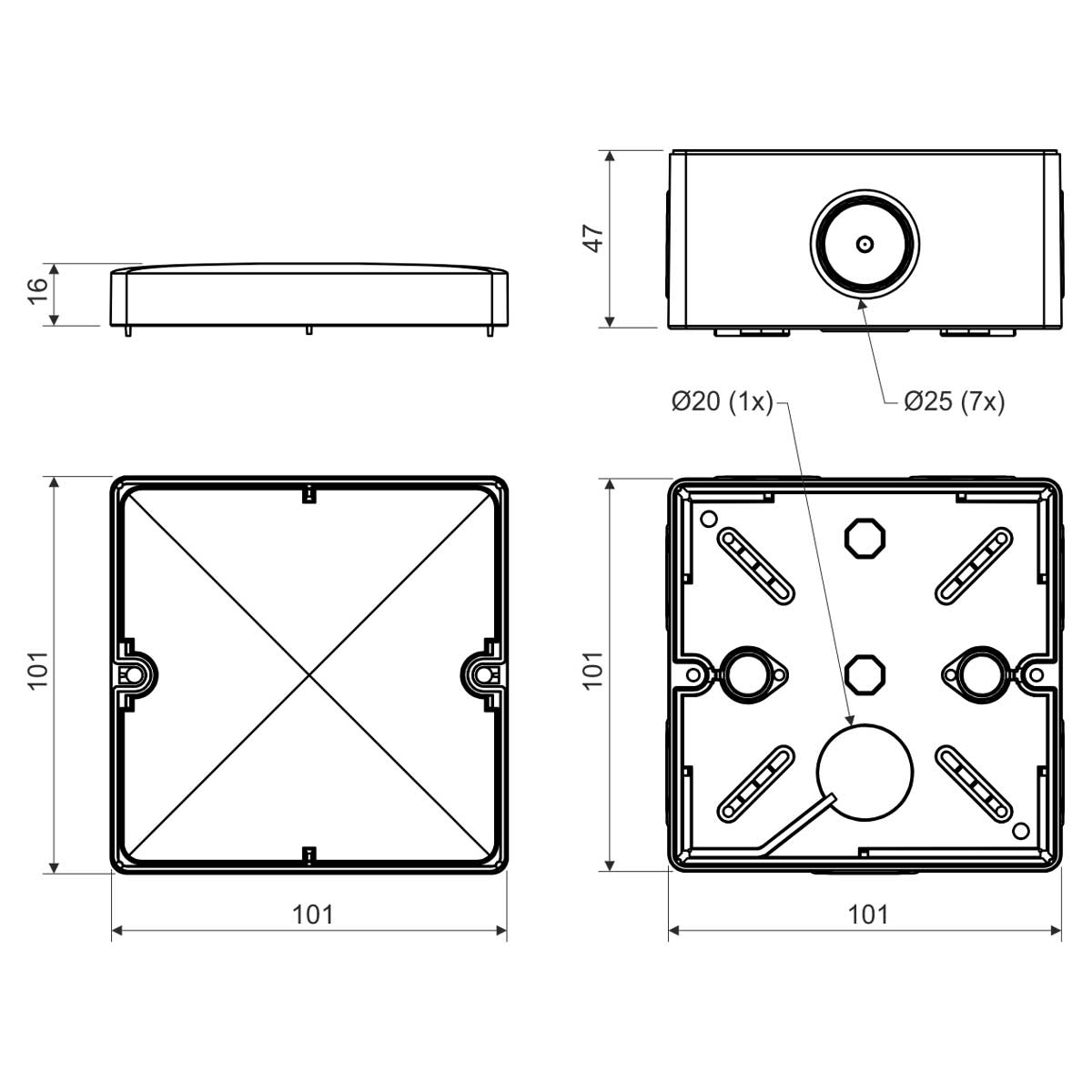

| Lătime | 101 mm |
| Înăltime | 101 mm |
| Adâncime | 63 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 66 |
| Descriere impachetare the plug and lid screws inserted in the box, each box packed in shrink foil and labeled | |
Intended for installation in environments that require IP 66 protection. Integrated knockouts for mounting on base. Intended for direct installation on the surface without having to support with insulating pad. Perfect sealing of cables and pipes, 7x knockouts with Ø25 mm and 1x Ø20 mm. The stainless screws for lid installation and caps for the heads of the mounting screws are included in the package. Option to install special terminal plate (S-KSK 1). Integrated O-ring to install cable glands. Alternatively the box is also available as fire resistant box, see the catalogue Systems maintaining functionality during fire. Protected by Utility model trademark.
