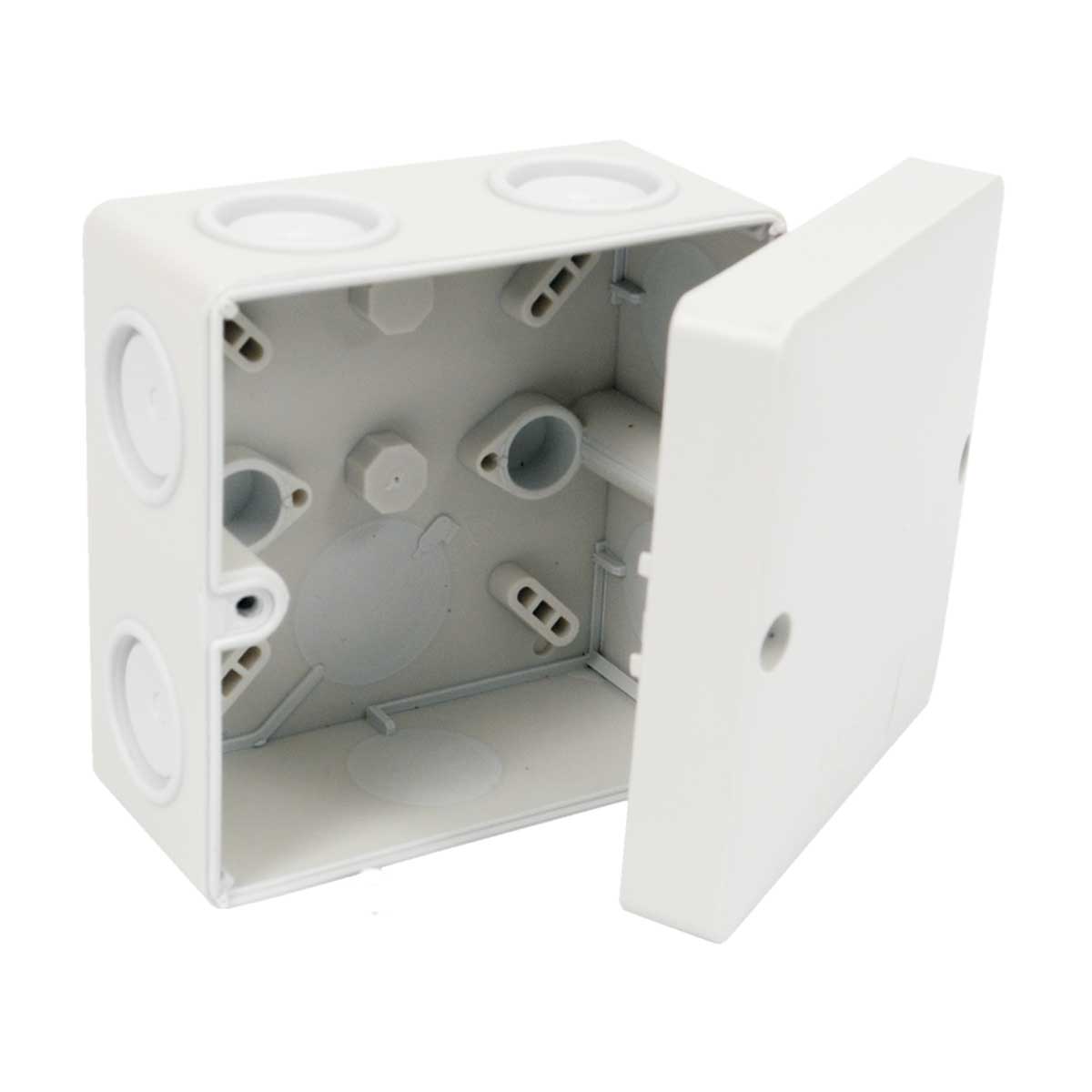

Imagine ilustrativă
KSK 80 KA - krabice s IP krytím
To download 3D models, please login or create an account and request access.
Cod Ean8595568910608
Cod vamal39259080
Greutate0,0950 kg/pcs
Culoarelight grey RAL 7035
MaterialPP, lid - PA
Material fără halogeniyes
Material fără plumbyes
Stabil la UV/Material stabil la UVyes
Cu suto-stingere30 s
Voltaj nominal<= 1000 V
Curent nominal<= 16 A
Rezistența la temperatură-25 - 60 °C
Testat cu buclă incinsă850 °C

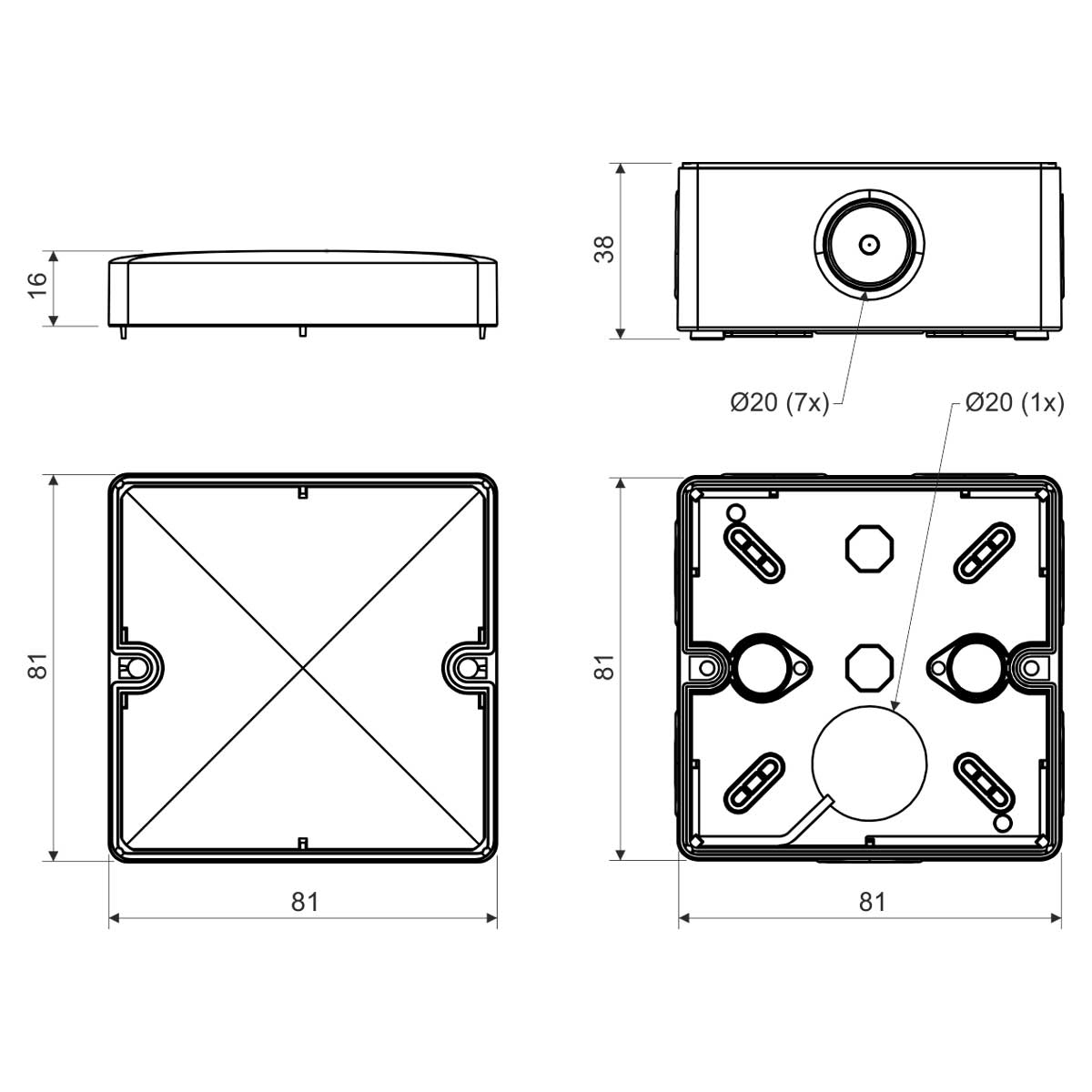

Lătime81 mm
Înăltime81 mm
Adâncime54 mm
Clasa de reacţie la foc a materialului de fondA1 - F
Tipuri de protecțieIP 66
Descriere impachetare
the plug and lid screws inserted in the box, each box packed in shrink foil and labeled

Intended for installation in environments that require IP 66 protection. Integrated knockouts for mounting on base. Intended for direct installation on the surface without having to support with insulating pad. Perfect sealing of cables and pipes, 8x knockouts with Ø20 mm. The stainless screws for lid installation and caps for the heads of the mounting screws are included in the package. Option to install special terminal plate (S-KSK 1). Integrated O-ring to install cable glands. Protected by Utility model trademark.
