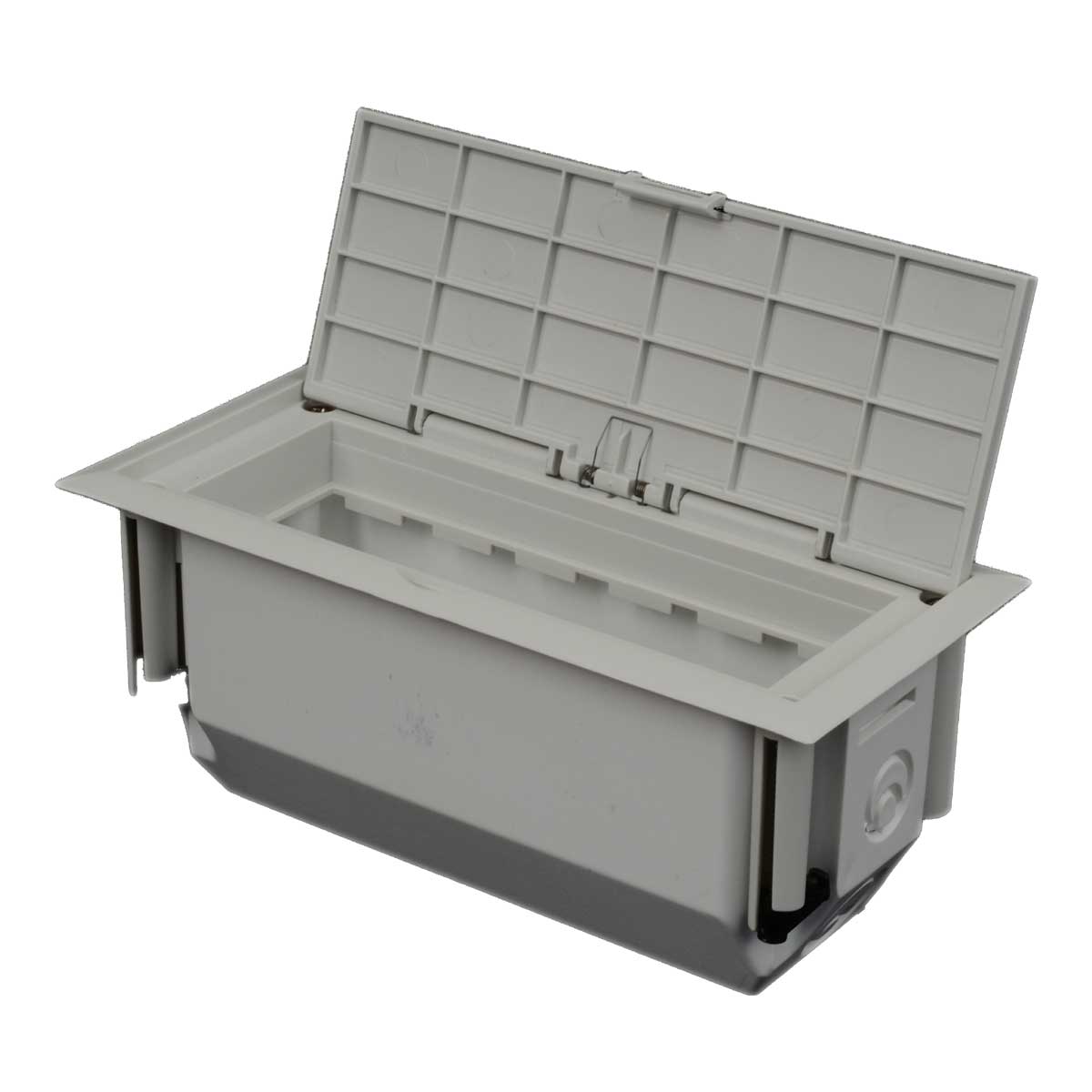

KOPOBOX mini L HB - sestava víceúčelové přístrojové krabice
To download 3D models, please login or create an account and request access.
Cod Ean8595568920041
Cod vamal39259080
Greutate0,1730 kg/pcs
Culoare
color of the visible parts (lid + frame) - white RAL 9003
MaterialPC-ABS
Material fără halogeniyes
Material fără plumbyes
Cu suto-stingere30 s
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C
Lătime175 mm
Înăltime80 mm
Adâncime75 mm
Clasa de reacţie la foc a materialului de fondA1 - F
Tipuri de protecțieIP 20

The dimension of completed configuration: 175 x 80 x 75 mm. Opening dimensions for cutting: 163 x 67 mm. The configuration is intended for assembling to furniture, into the hollow walls or to double floors. Box KOPOBOX MINI L there is possible to assemble to the thickness of the desks from 9 till 38 mm. Fast assembling by help of fixation lugs. The bottom cover box enables the fixation of cables against their rapture. KOPOBOX mini L enables the assembling of modular devices of 3 pcs 45x45 or 6 pcs 22,5x45 or their combination. Suitable for QUADRO instruments, tailor-made for KOPOS products. Installation of instruments made by ABB, Legrand, PEHA, Simon connect, Schneider Electric is also possible.
