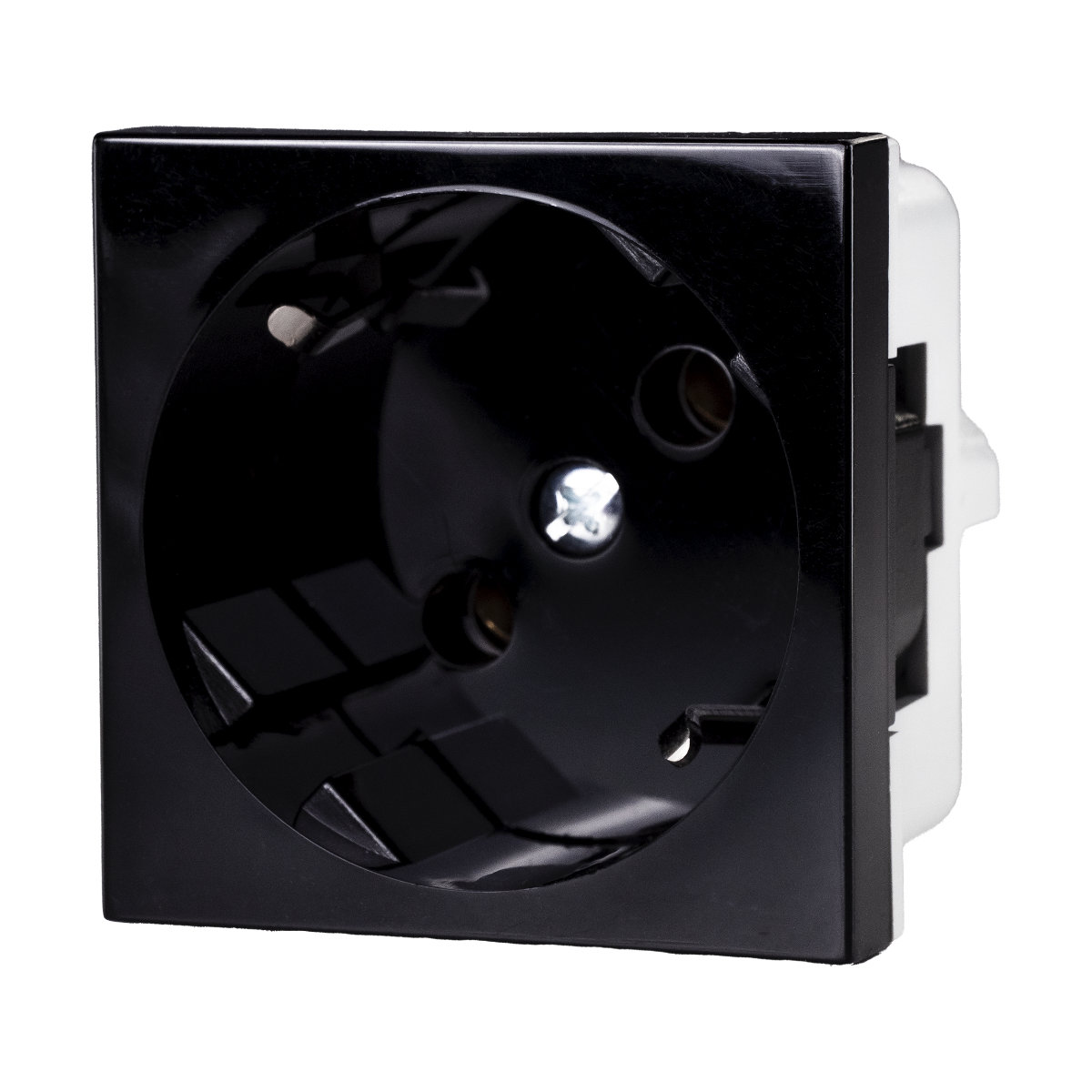

Imagine ilustrativă
QS45X45_EN
| Cod Ean | 8595568940940 |
| Cod vamal | 85366990 |
| Greutate | 0,0398 kg/buc |
| Culoare | black |
| Material | PC-ABS |
| Voltaj nominal | 250 V |
| Curent nominal | 16 A |
| Lătime | 45 mm |
| Înăltime | 45 mm |
| Adâncime | 40 mm |
| Utilizare PK 90X55 D, PK 120X55 D, PK 160X65 D, PK 210X70 D | |
| Tipuri de protecție | IP 20 |
| Cuplu de strângere | 0,6 Nm |
For 1.5-2.5 mm2 Cu wires. The fixing of the conductor is performed by means of screws. Installation by snap-on movement only. The socket modules can continuously connect, max. is determined by the parapet trunkings or boxes series KOPOBOX®. The use of the PIN system (with pin) and the SCHUKO system (with spring contacts) sockets should be according to the standards of each particular country.
