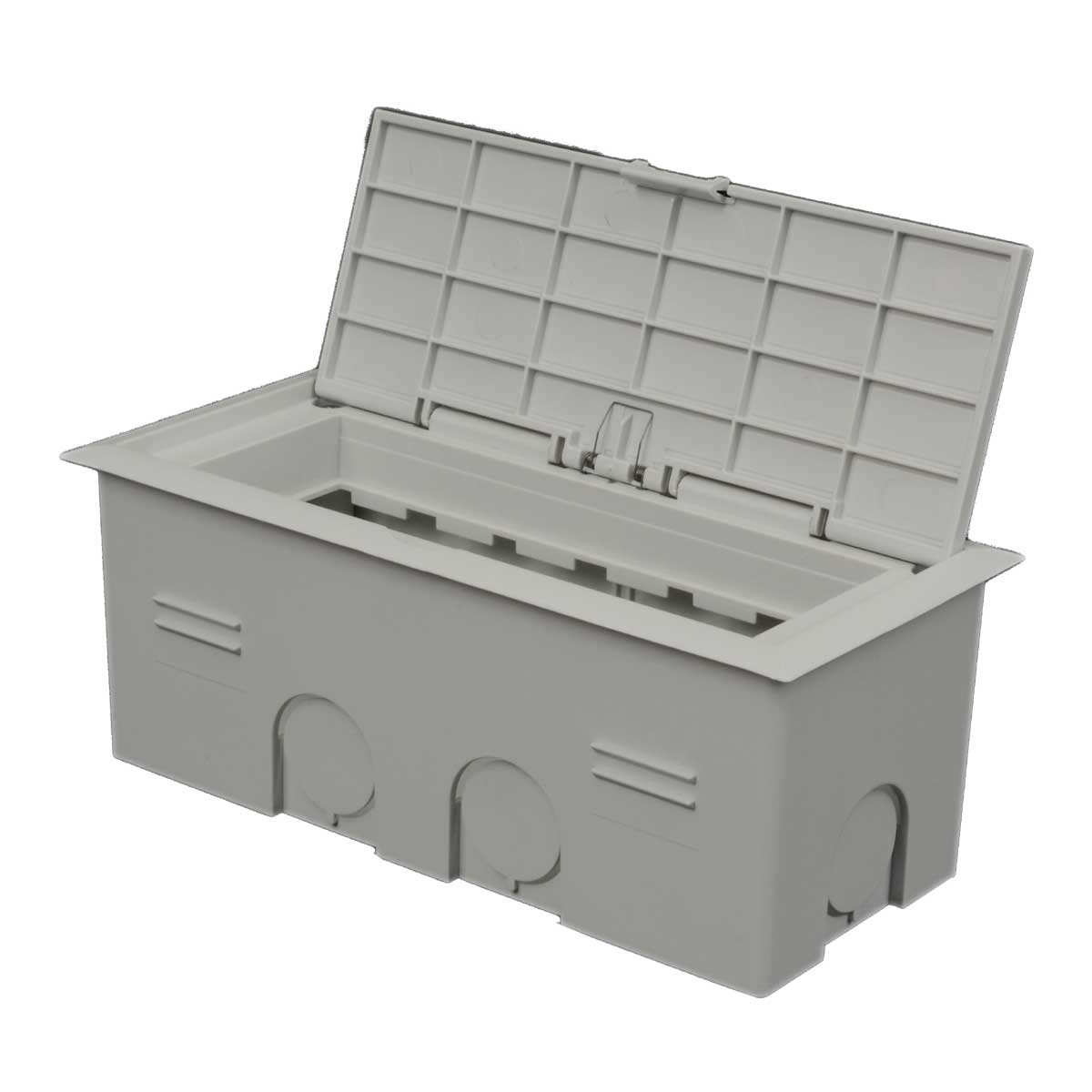

KOPOBOX mini B HB - sestava víceúčelové přístrojové krabice
To download 3D models, please login or create an account and request access.
Cod Ean8595568920065
Cod vamal39259080
Greutate0,1830 kg/pcs
Culoare
color of the visible parts (lid + frame) - white RAL 9003
MaterialPC-ABS
Material fără halogeniyes
Material fără plumbyes
Cu suto-stingere30 s
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C
Lătime175 mm
Înăltime80 mm
Adâncime68 mm
Clasa de reacţie la foc a materialului de fondA1 - F
Tipuri de protecțieIP 20

The dimension of completed configuration: 175 x 80 x 68 mm. The configuration is intended for assembling to/under parget or to concrete floors. Prior to installation of assembling box there is necessary to insert the distance rail, which is replaced upon the plaster induration. Subgrade assembling box puts down into plaster seam. During the completion the assembling box is subsequently shouldered by KOPOBOX MINI box frame. It enables the assembling of modular devices of 3 pcs 45x45, or 6 pcs 22,5x45 or their combination. Suitable for QUADRO instruments, tailor-made for KOPOS products. Installation of instruments made by ABB, Legrand, PEHA, Simon connect, Schneider Electric is also possible. Max. load: 1000 N to total surface of cover (lid + frame).
