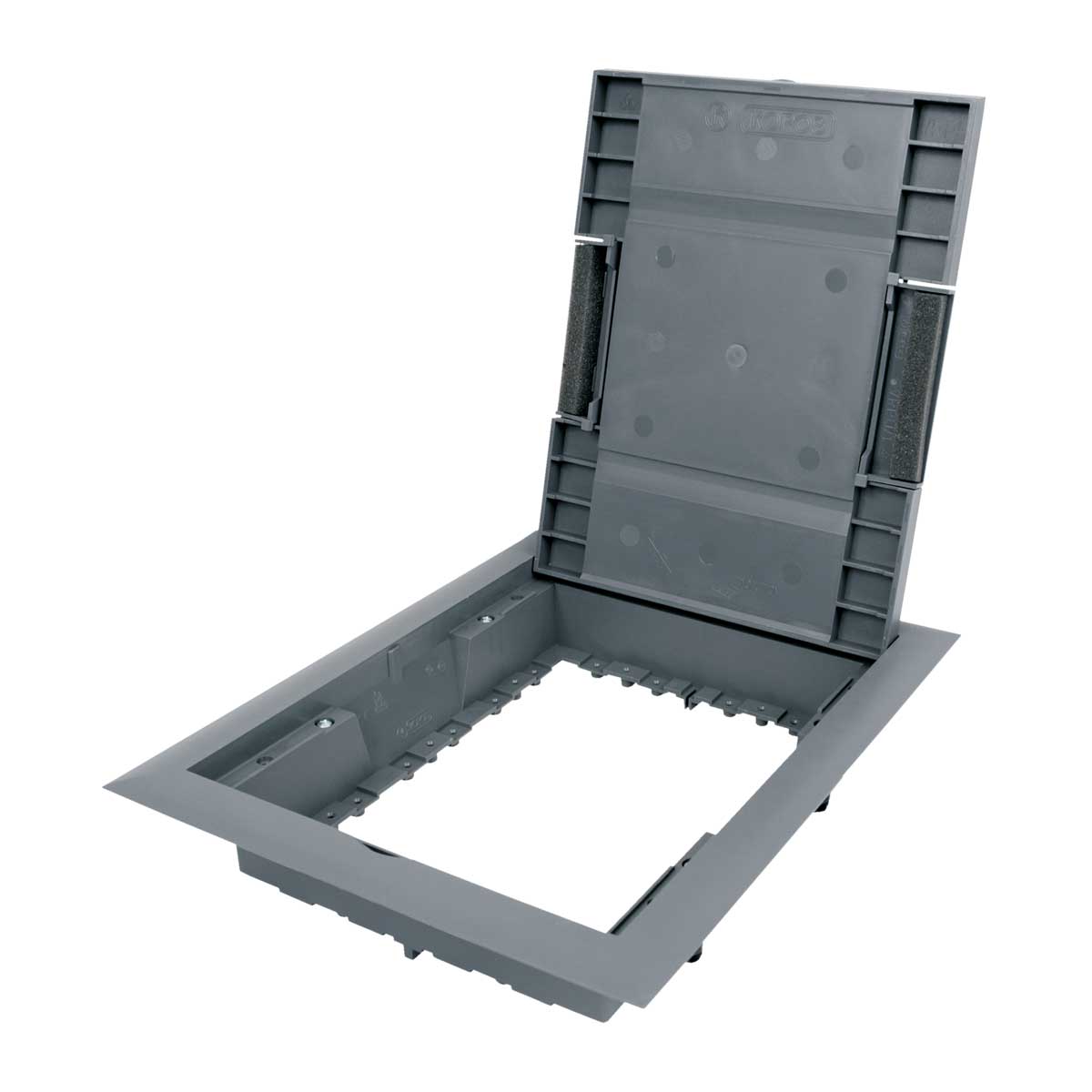

Imagine ilustrativă
KOPOBOX 80 LB - rám podlahové krabice
To download 3D models, please login or create an account and request access.
Cod Ean8595057690738
Cod vamal39259080
Greutate1,2000 kg/pcs
Culoaredark grey RAL 7012
MaterialPA
Material fără halogeniyes
Material fără plumbyes
Cu suto-stingere30 s
Rezistența la temperatură-5 - 105 °C
Testat cu buclă incinsă850 °C
Lătime330 mm
Înăltime260 mm
Adâncime59 mm
Clasa de reacţie la foc a materialului de fondA1 - F
Tipuri de protecțieIP 30

Designed for installation into the universal floor box KUP 80. The use of KPP 80 instrument boxes (max 2 pcs) together with PP 80/3 instrument plates allows the assembly of standard instruments (max 6 pcs); with PP 80/45 instrument plates allows the assembly of QUADRO modular instruments (max 8 pcs) or instruments with compatible construction, e.g. those made by ABB, PEHA, Legrand, OBO Bettermann, Schneider Electric. Reinforcement of the lid by the sheet ensures its high mechanical strength while maintaining the possibility of inserting the final floor covering at a height of max. 7 mm. The lid has 2 tilt flaps enabling the outlet of the cables from the box. Included are screws for attaching the frame to the floor box KUP. KOPOBOX® comes in dark grey as a standard. For orders over 500 pieces we can supply different RAL colour (except for actual device carriers). The frame is separately applied for double floors with a thickness of 10-40 mm, the proposition of hole to insert the floor box is 218 x 288 mm.
