Cod Ean8595057690721
Cod vamal39259080
Greutate1,3000 kg/pcs
Culoaredark grey RAL 7012
MaterialPA
Material fără halogeniyes
Material fără plumbyes
Cu suto-stingere30 s
Rezistența la temperatură-5 - 105 °C
Testat cu buclă incinsă850 °C

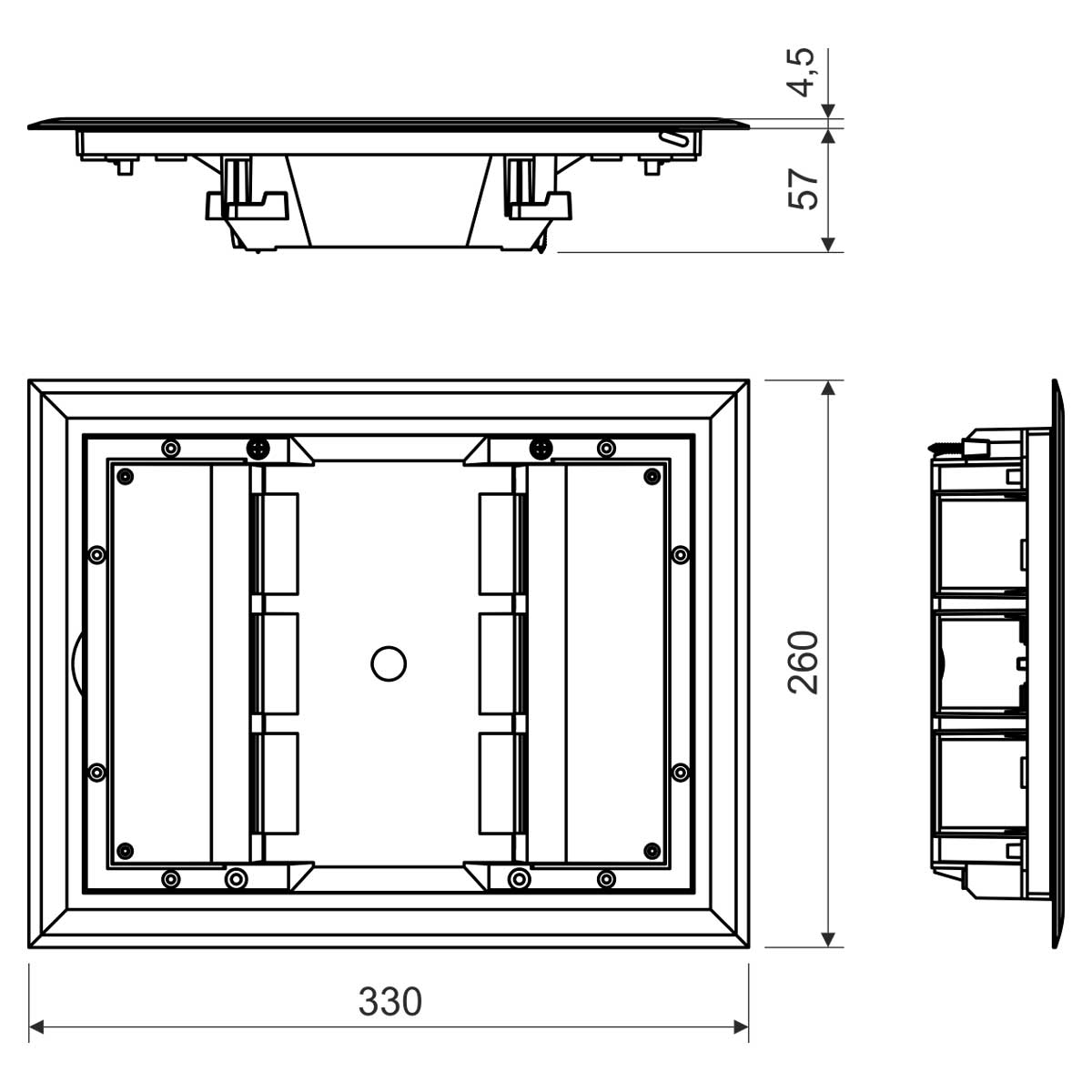

Lătime330 mm
Înăltime260 mm
Adâncime57 mm
Clasa de reacţie la foc a materialului de fondA1 - F
Tipuri de protecțieIP 30

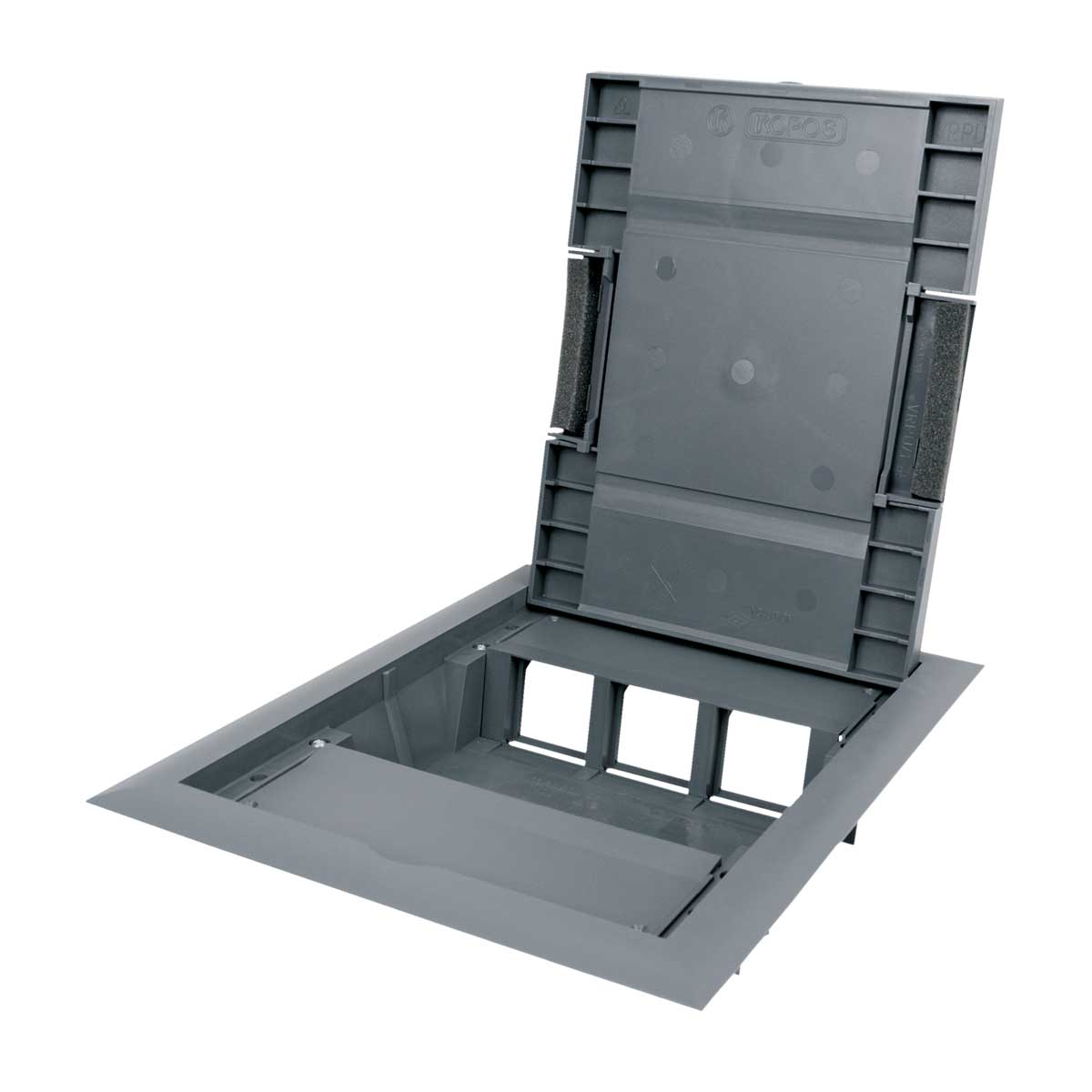

Designed for installation into the universal floor box KUP 57 or KUP 80. It is possible to assemble QUADRO modular instruments of 45 x 45 mm (max 6 pcs - pg. 2-48), instruments with compatible construction, e.g. those made by ABB, PEHA, Legrand, OBO Bettermann, Schneider Electric. Reinforcement of the lid by sheet metal ensures its high mechanical strength while maintaining the possibility to insert the final floor covering. The lid has 2 tilt flaps enabling the outlet of the cables from the box. Included are screws for attaching the frame to the floor box KUP. KOPOBOX® comes in dark grey as a standard. For orders over 500 pieces we can supply different RAL colour (except for actual device carriers). The frame is separately applied for double floors with a thickness of 10-40 mm, the proposition of hole to insert the floor box is 218 x 288 mm.
