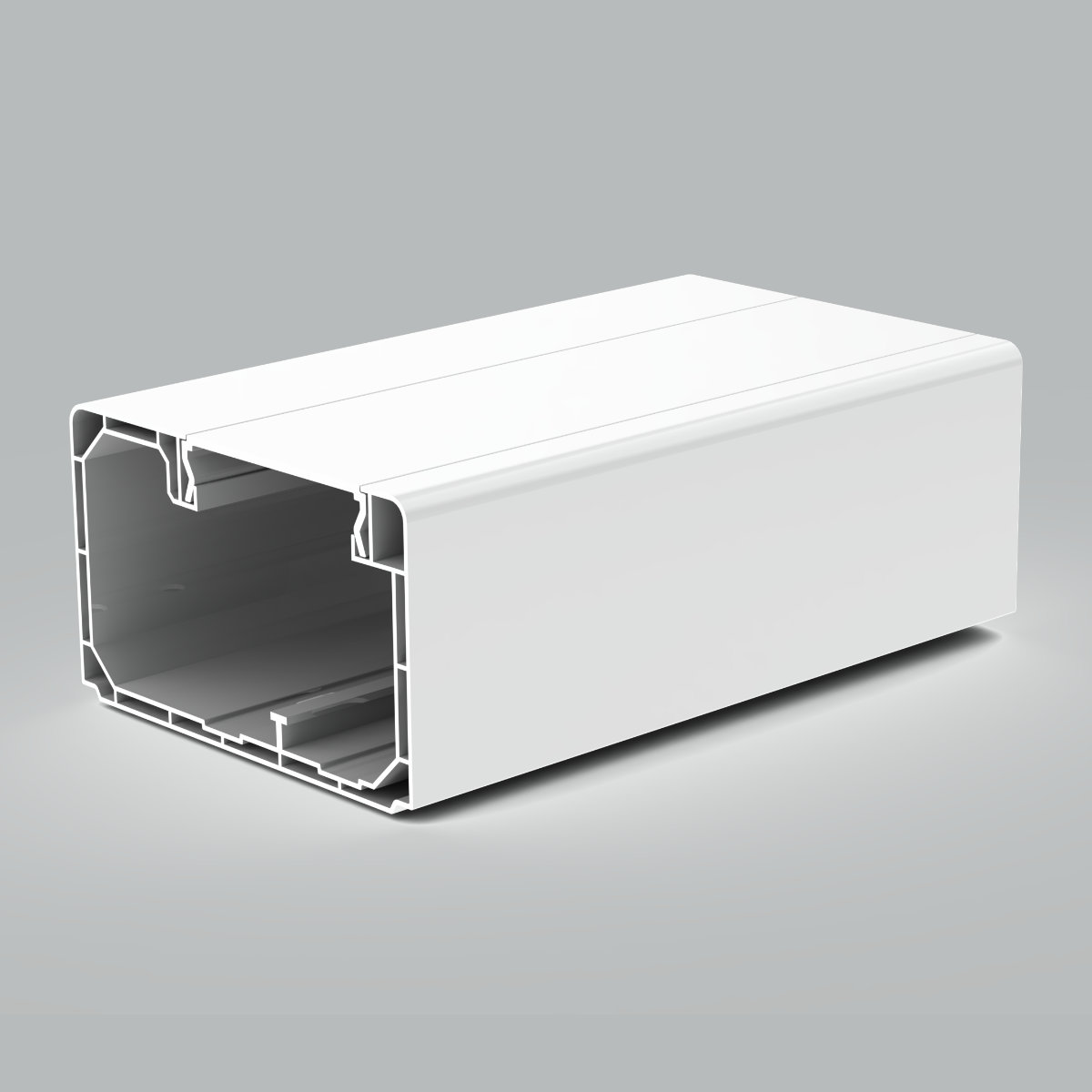

Imagine ilustrativă
PK 90X55 D HD - parapetní kanál dutý
To download 3D models, please login or create an account and request access.
Cod Ean8595057688056
Cod vamal39259020
Greutate0,8850 kg/m
Culoarewhite
MaterialPVC
Material fără plumbyes
Cu suto-stingere30 s
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C
Protectie mecanicăIK07
Rezistență la impact1 J
Antibacterialyes
Lătime90 mm
Înăltime54 mm
Lungime2 m
Zona interioară3800 mm2
Toleranță
The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C.
Utilizare
they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use.
Recomandările producătorului
The producer recommends checking the depth of a particular device before installation.
Zonă cu pericol de explozie
Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14.
Clasa de reacţie la foc a materialului de fondA1 - F
Tipuri de protecțieIP 40
StandardeČSN EN 50 085-1
Descriere impachetarepackage - cardboard
Cu folie de protecţieyes

Designed for installation of modular devices 45x45 or 45x22,5 mm. KOPOS recommends installing QUADRO instruments, tailor-made for KOPOS products. The installation devices from other manufacturers is possible e.g. ABB, PEHA, Legrand, OBO Bettermann, Schneider Electric Altira with maximal depth of 42 mm. To separate the circuit, partition wall PEKE 60 or PKS 70/60 can be used. Maximum number of modular instruments placed next to each other is 3 pcs. When installing multiple instruments next to each, it is necessary to put about 5 cm wide piece of lid after 3 pieces to fasten them. There is no need to use instrument washers for the final installation of modular devices. The lid is cut to the desired length and inserted next to the instrument.
