Cod Ean8595568905840
Cod vamal73269098
Greutate0,28 kg/pcs
Acoperire de suprafatăStainless steel AISI 304
Rezistența la temperatură-50 - 150 °C
Lungime280 mm
StandardeČSN EN 61537
Grosimea foii de tablă1,5 mm
Pentru inălțimea jgheabului de cabluri60 mm

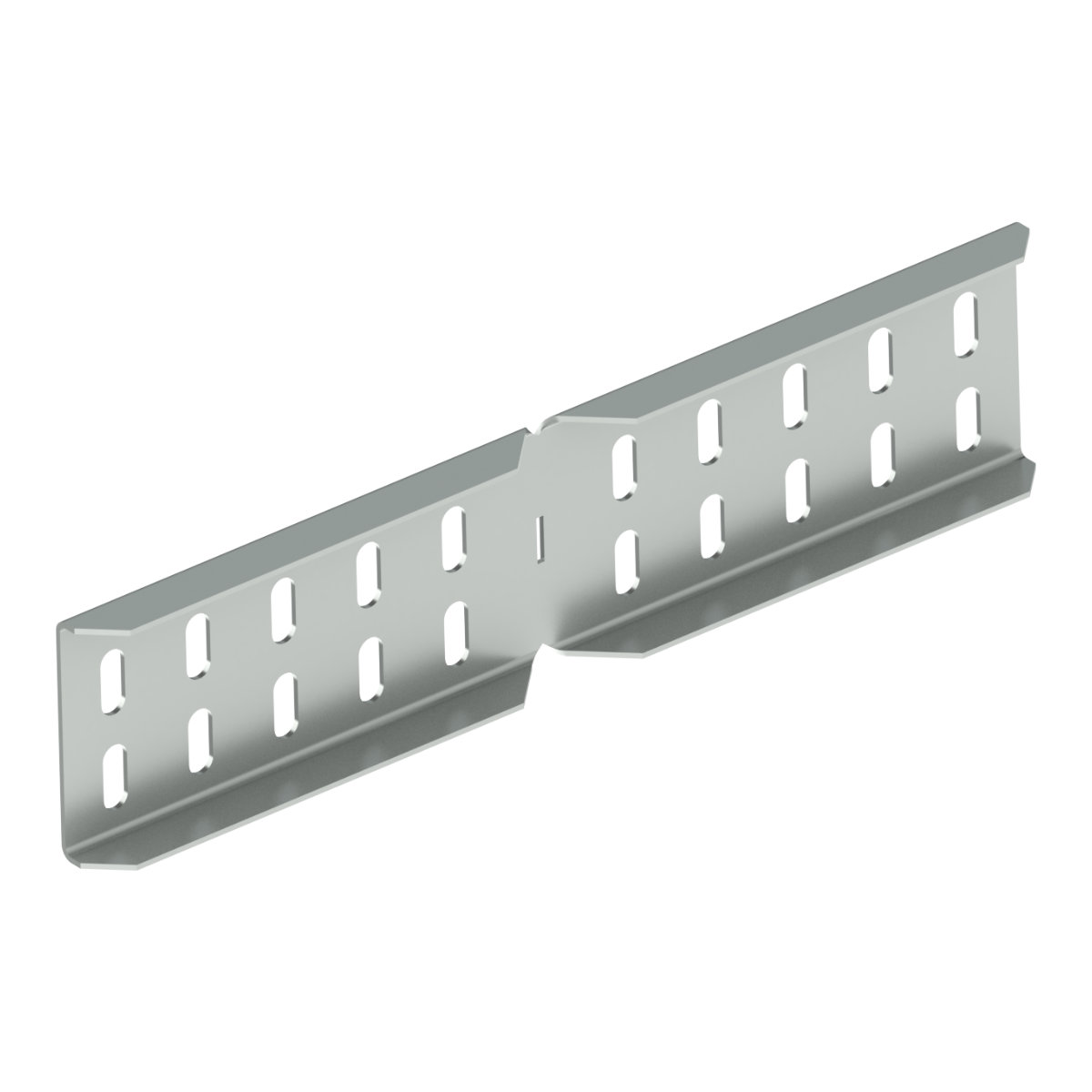

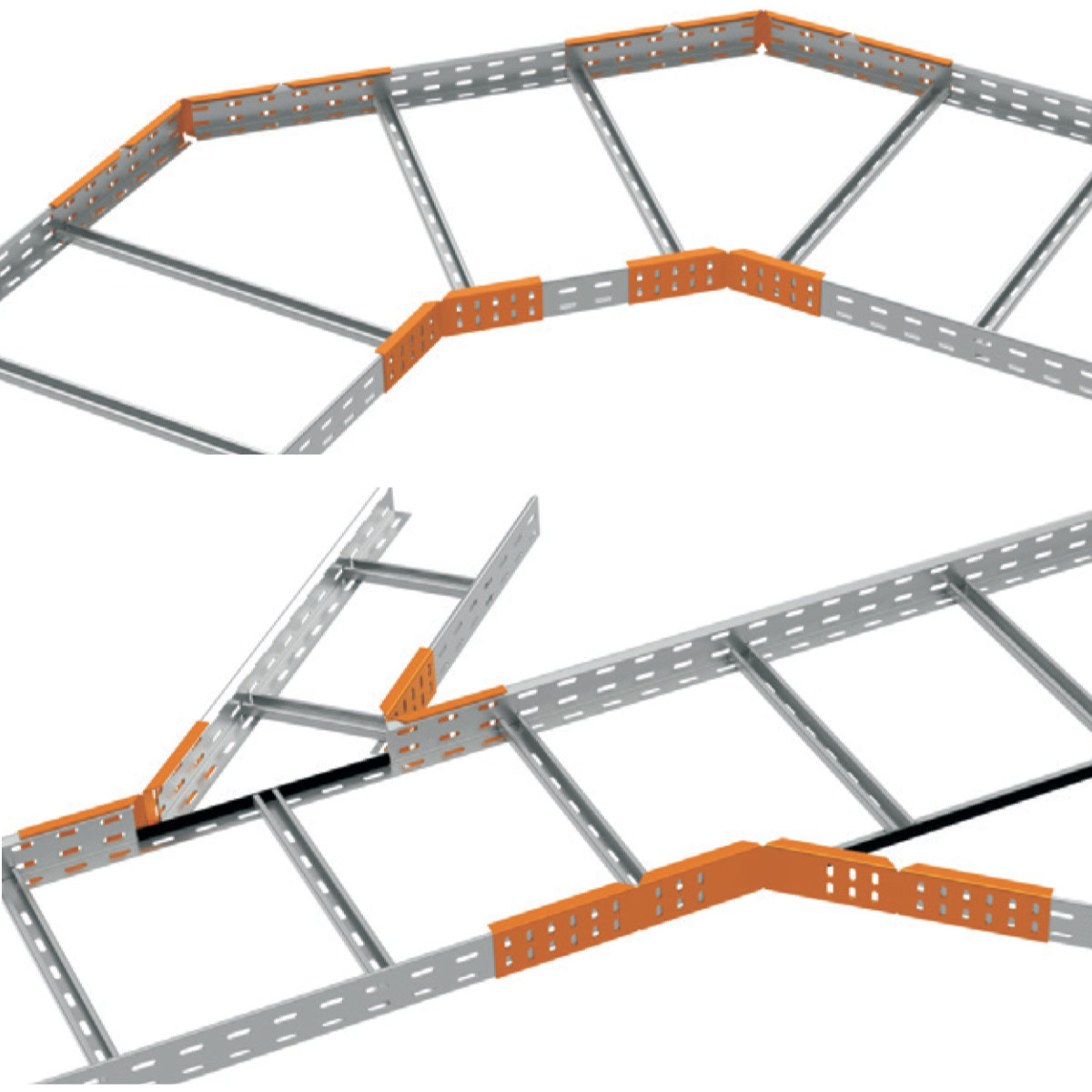

It is used for bending off of the cable ladder line or as a replacement of cable ladder adapting piece. Couplings are a more cost-effective and versatile way of creating a tray branch in a horizontal direction. Cut the side wall of the cable ladder to bend off c. 15 mm above the bottom – in the bottom perforation axis. It is necessary to use NCH. To fix the connection use the bolt NIXSM 6X10. To protect the cables, the bolt head is inside the cable tray.
