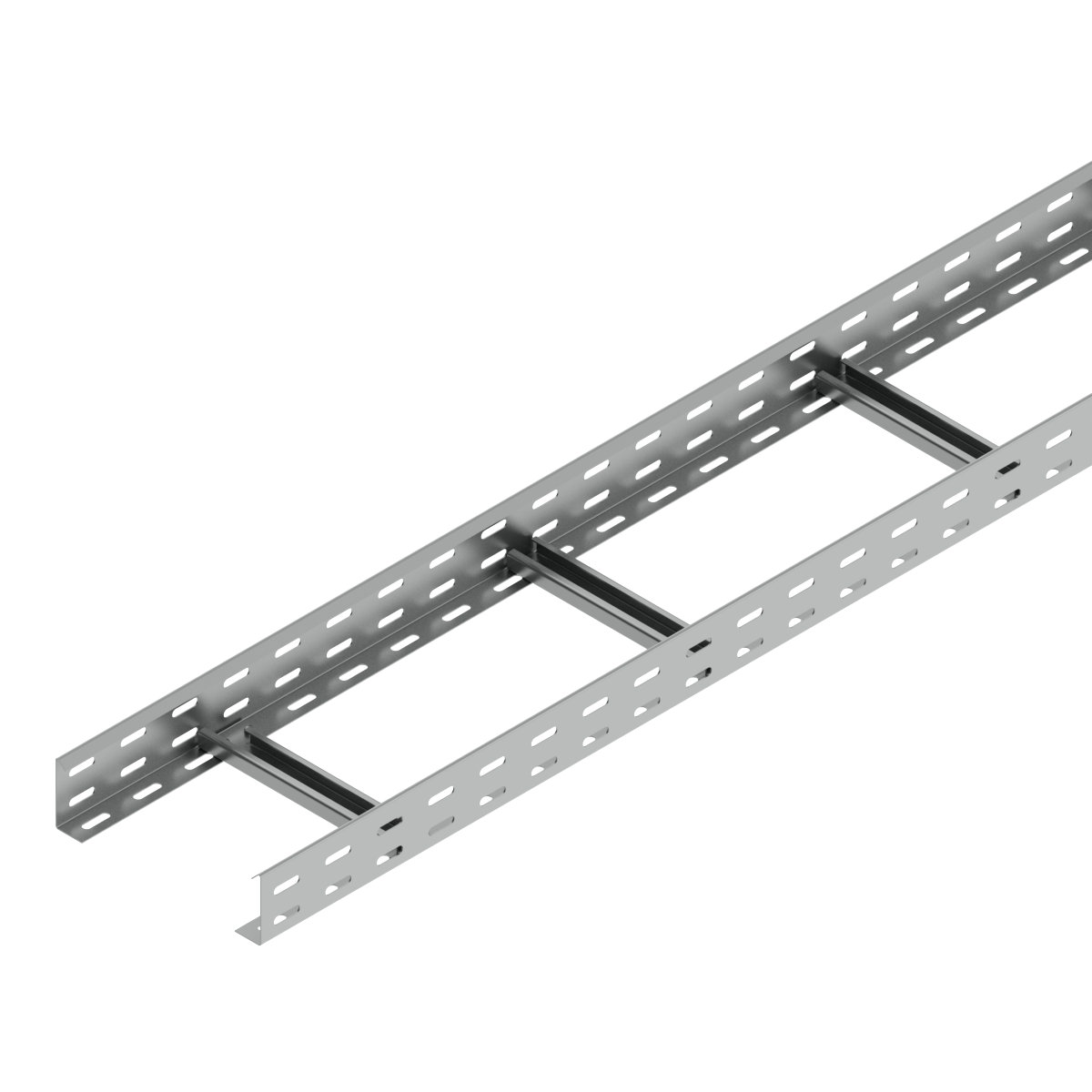

Imagine ilustrativă
INOXKL60_EN
| Cod Ean | 8595057641907 |
| Cod vamal | 73089059 |
| Greutate | 2,10 kg/m |
| Acoperire de suprafată | Stainless steel AISI 304 |
| Rezistența la temperatură | -50 - 150 °C |
| Lătime | 200 mm |
| Înăltime | 60 mm |
| Lungime | 2100 mm |
| Standarde | ČSN EN 61537 |
| Grosimea foii de tablă | 1,2 mm |
| Distanta partiției | 300 mm |
The joining of the ladders is performed by using the couplings INOXS 60 and min. 4 pcs of bolts NIXSM 6X10. The side walls are L-profiles with return flange. The perforated C-profile rungs are placed in the side walls by extrusion with a spacing of 300 mm, with open side of the profile facing up.
