Imagine ilustrativă
Datový list
Cod Ean8595568934185
Cod vamal83024190
Greutate0,34 kg/pcs
Acoperire de suprafatăStainless steel AISI 304
StandardeČSN EN 61537
Încarcatura maximă150 kg
Pentru lățimea jgheabului de cabluri200 mm

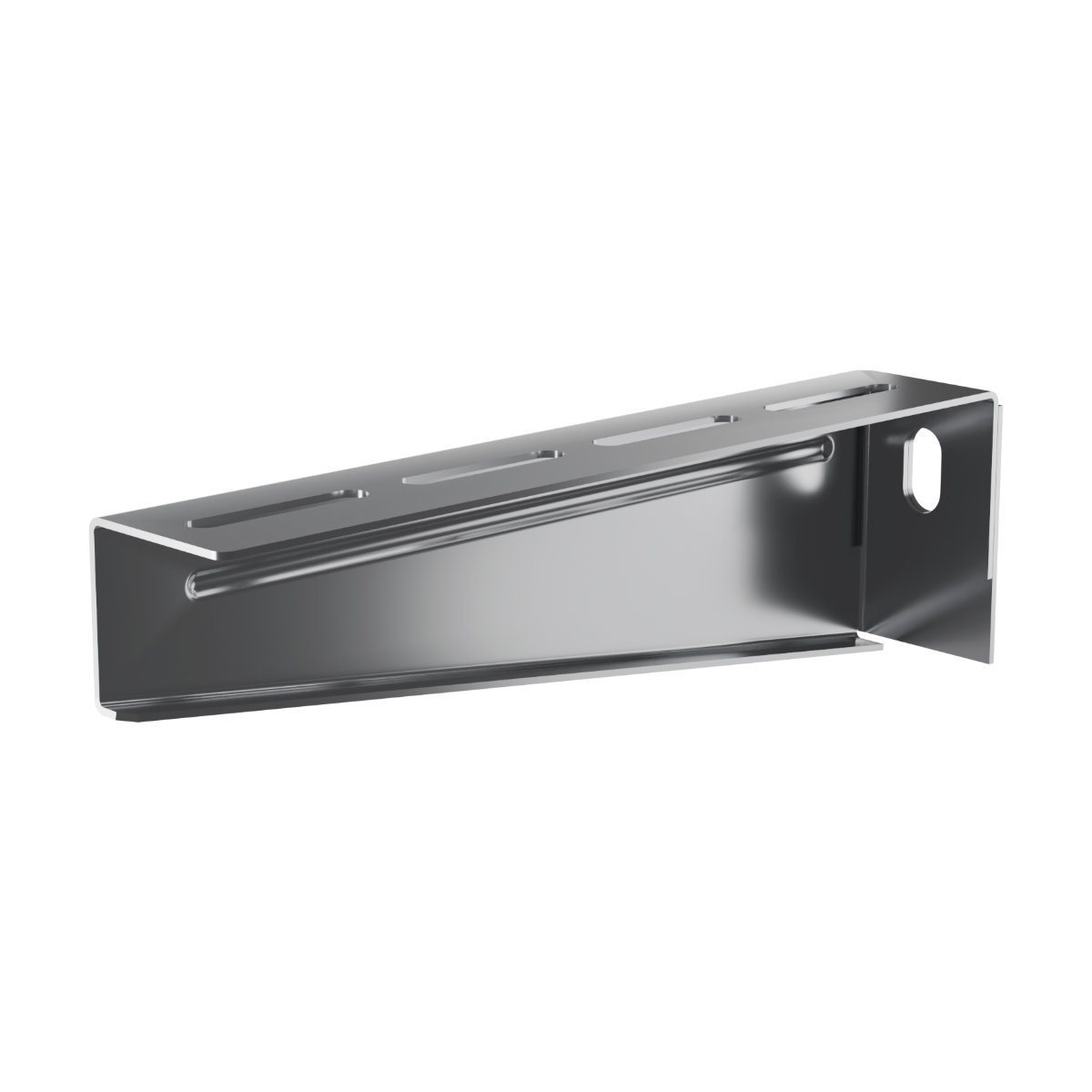

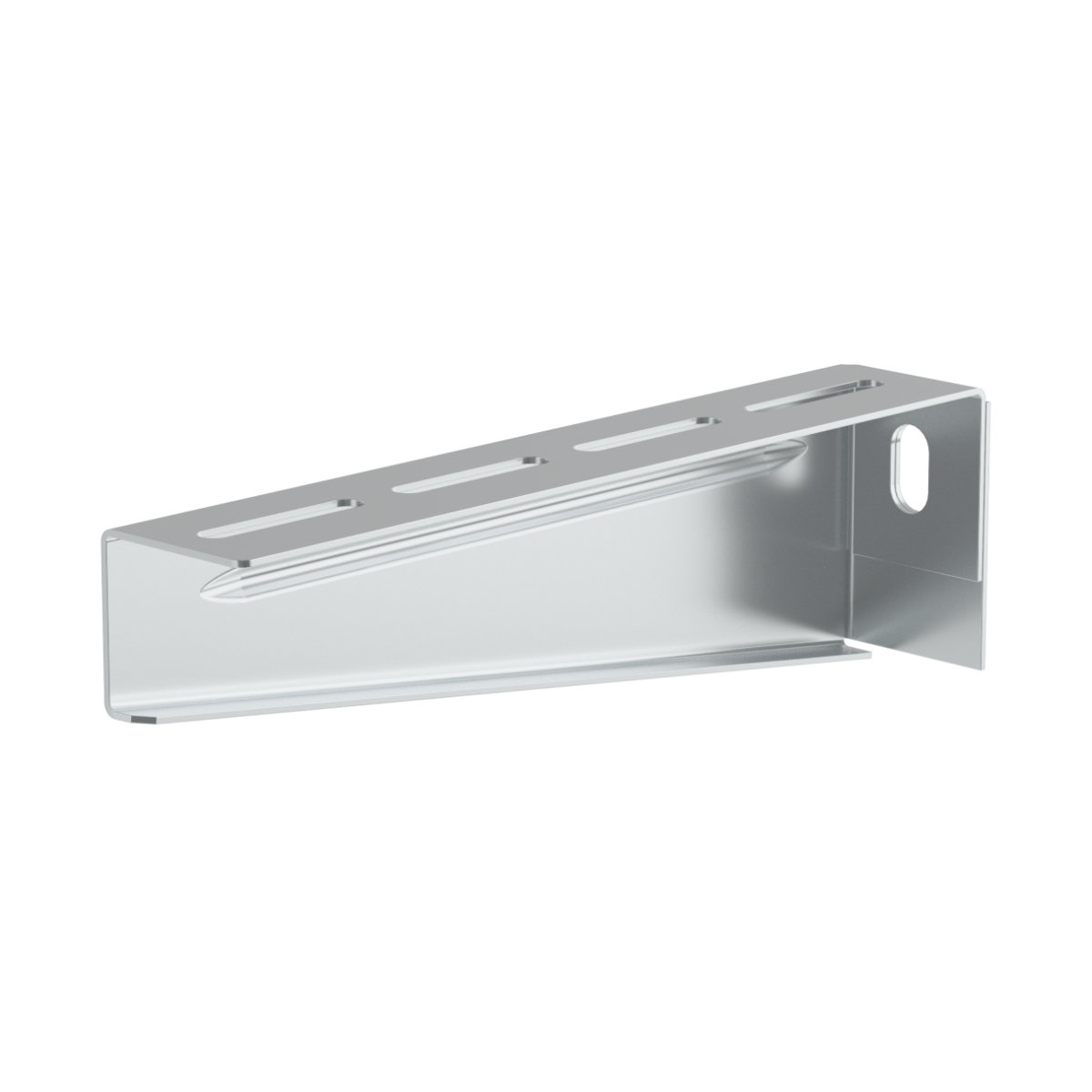

The bracket is used as an element to create a supporting structure for a cable tray. It is designated for installation on the wall or mounting profile. Attached to the wall using 2 pcs Ø 8 mm anchors. NIXSM 6X10 bolts are used to attach the cable tray to the bracket. To protect the cables, the bolt head is inside the cable tray.
