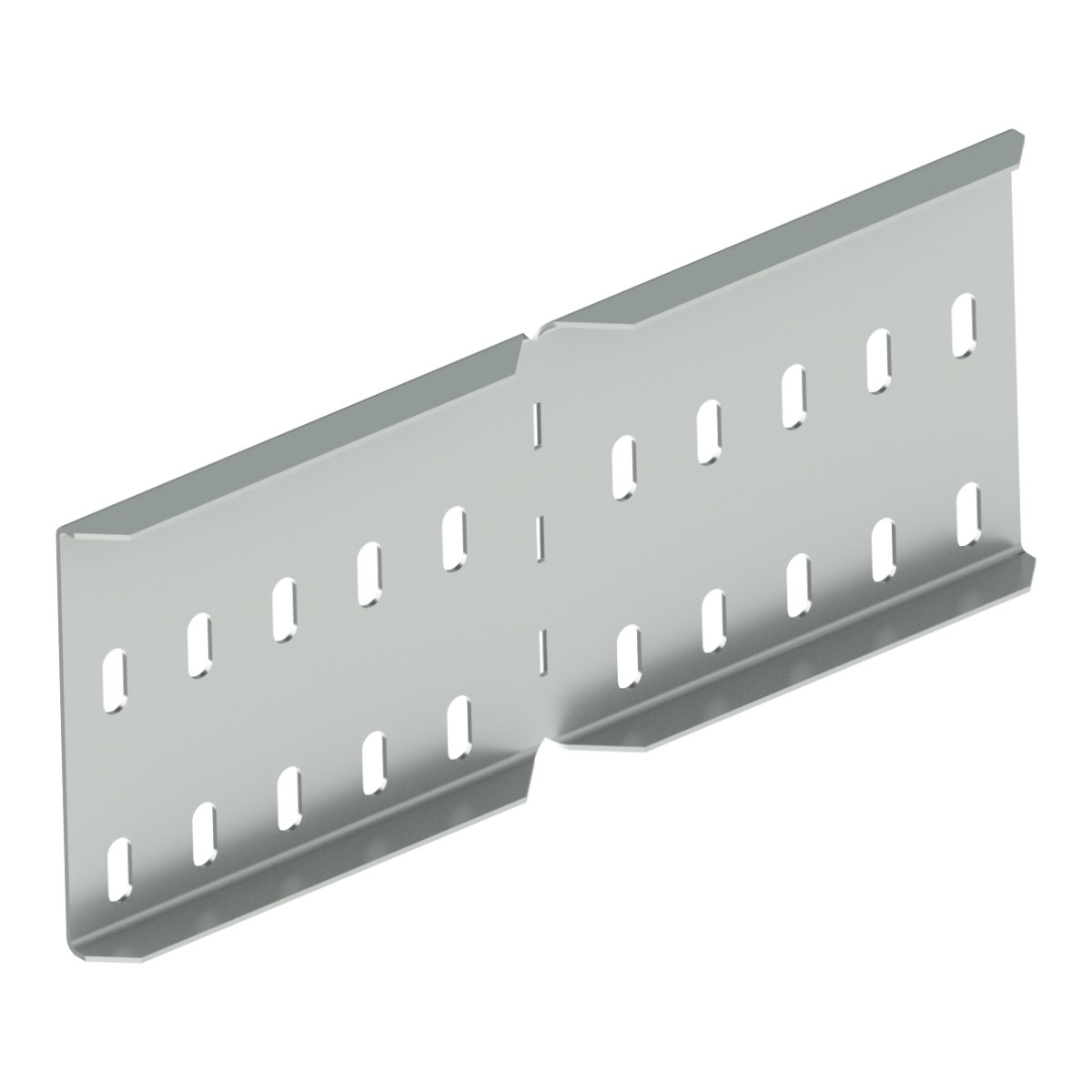

Imagine ilustrativă
| Cod Ean | 8595568934161 |
| Cod vamal | 73269098 |
| Greutate | 0,4200 kg/buc |
| Acoperire de suprafată | Stainless steel AISI 304 |
| Rezistența la temperatură | -50 - +150 °C |
| Lungime | 280 mm |
| Standarde | ČSN EN 61537 |
| Grosimea foii de tablă | 1,5 mm |
| Pentru inălțimea jgheabului de cabluri | 110 mm |
It is used for bending off of the cable ladder line or as a replacement of cable ladder adapting piece. Couplings are a more cost-effective and versatile way of creating a tray branch in a horizontal direction. Cut the side wall of the cable ladder to bend off c. 15 mm above the bottom – in the bottom perforation axis. It is necessary to use NCH. To fix the connection use the bolt NIXSM 6X10. To protect the cables, the bolt head is inside the cable tray.
INOXBSKH_EN
