Imagine ilustrativă
DZI 60x500_BZNCR
DZI 60x500_BZNCR
To download 3D models, please login or create an account and request access.
Cod Ean8595568927910
Cod vamal73262000
Greutate2,76 kg/m
Acoperire de suprafatăElectrolytic Galvanized
Lătime500 mm
Înăltime60 mm
Lungime3000 mm
StandardeČSN EN 61537
Diametru cablu4,6 mm
Grătar inferior50x100
Partea de instalare pe baza jgheabului de tablă2

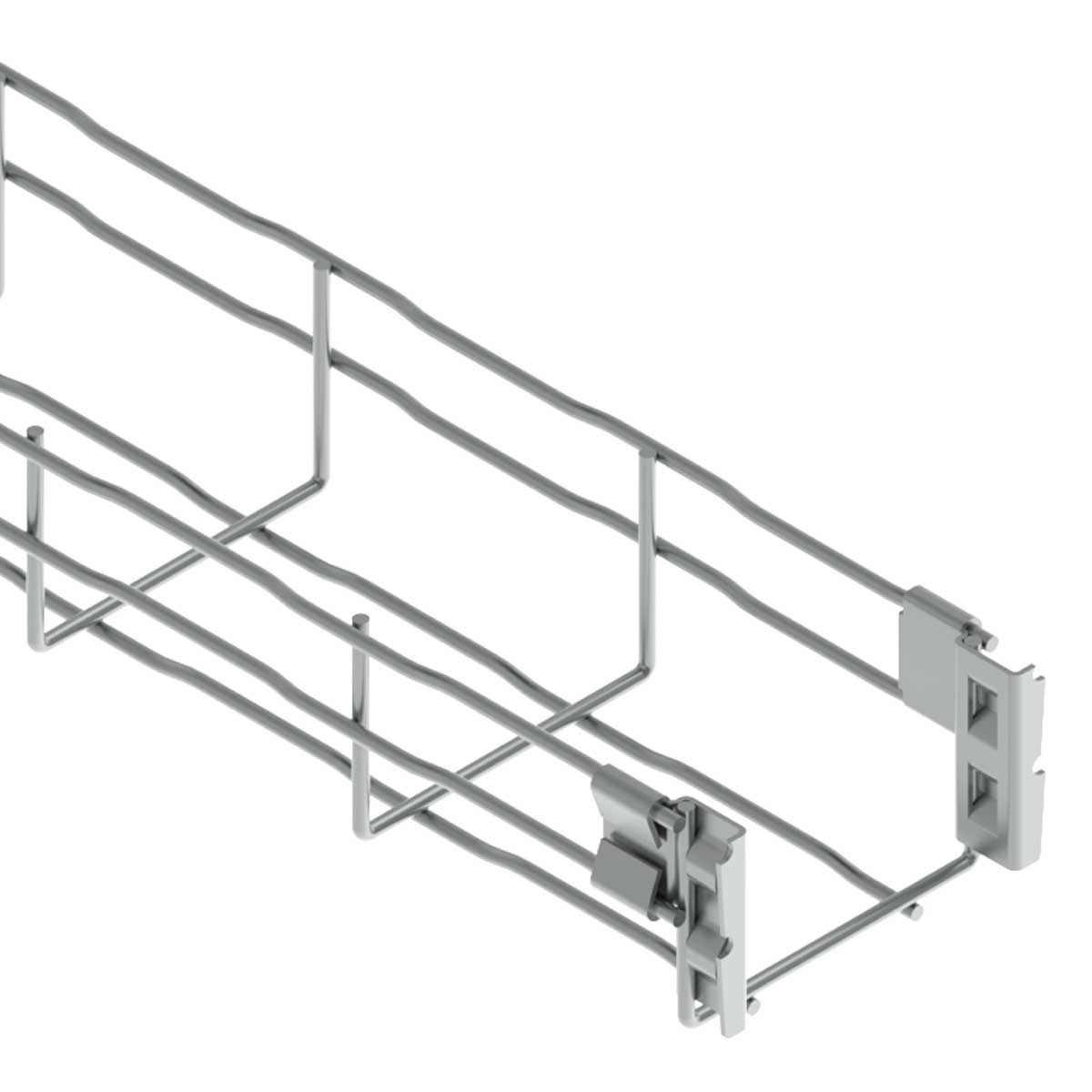

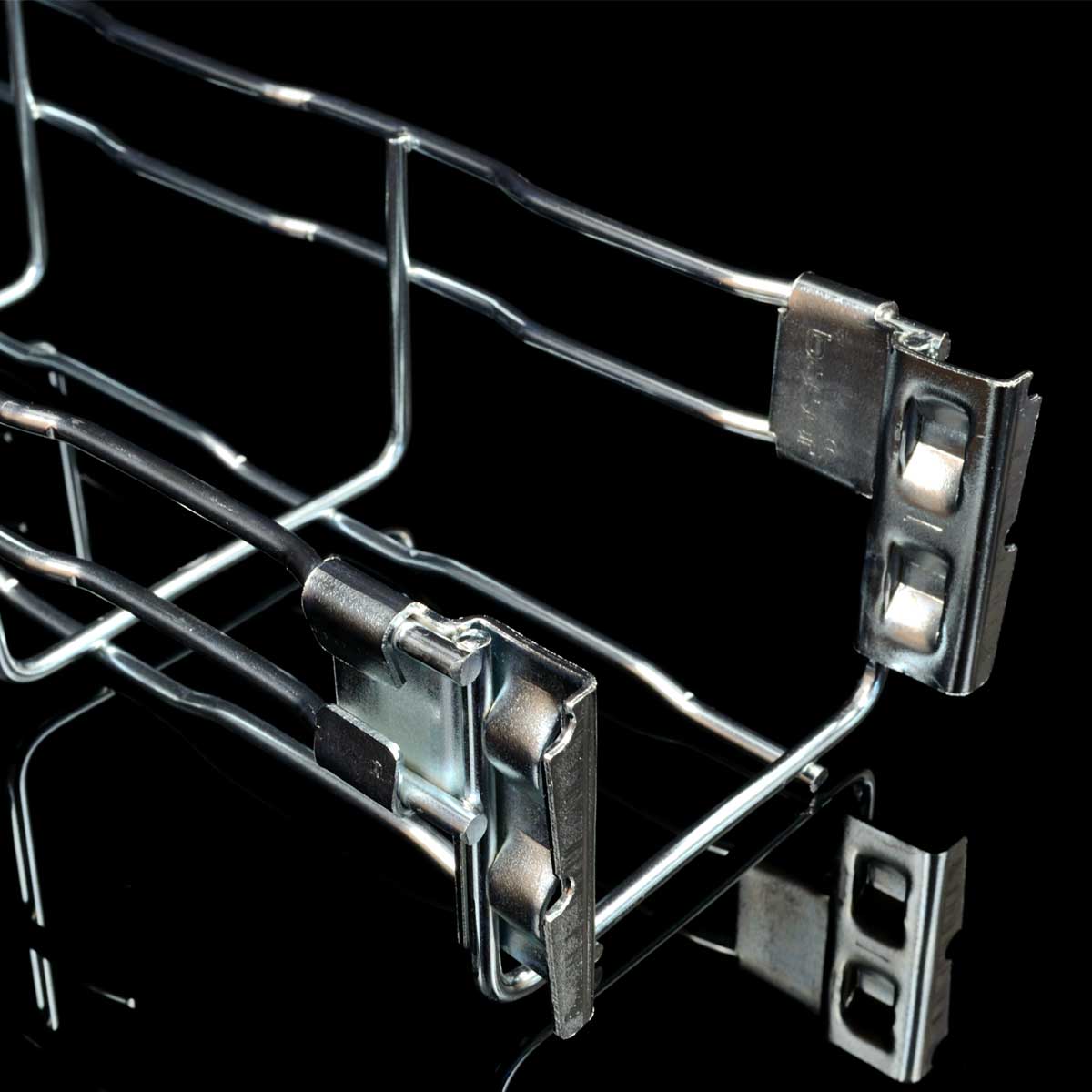

There are couplings at one end of the wire cable tray. In this way the conductive connection is fulfilled. To enable the proper ventilation it is recommended to install the trays at a distance at least 250 mm from each other and 20 mm from the wall.
