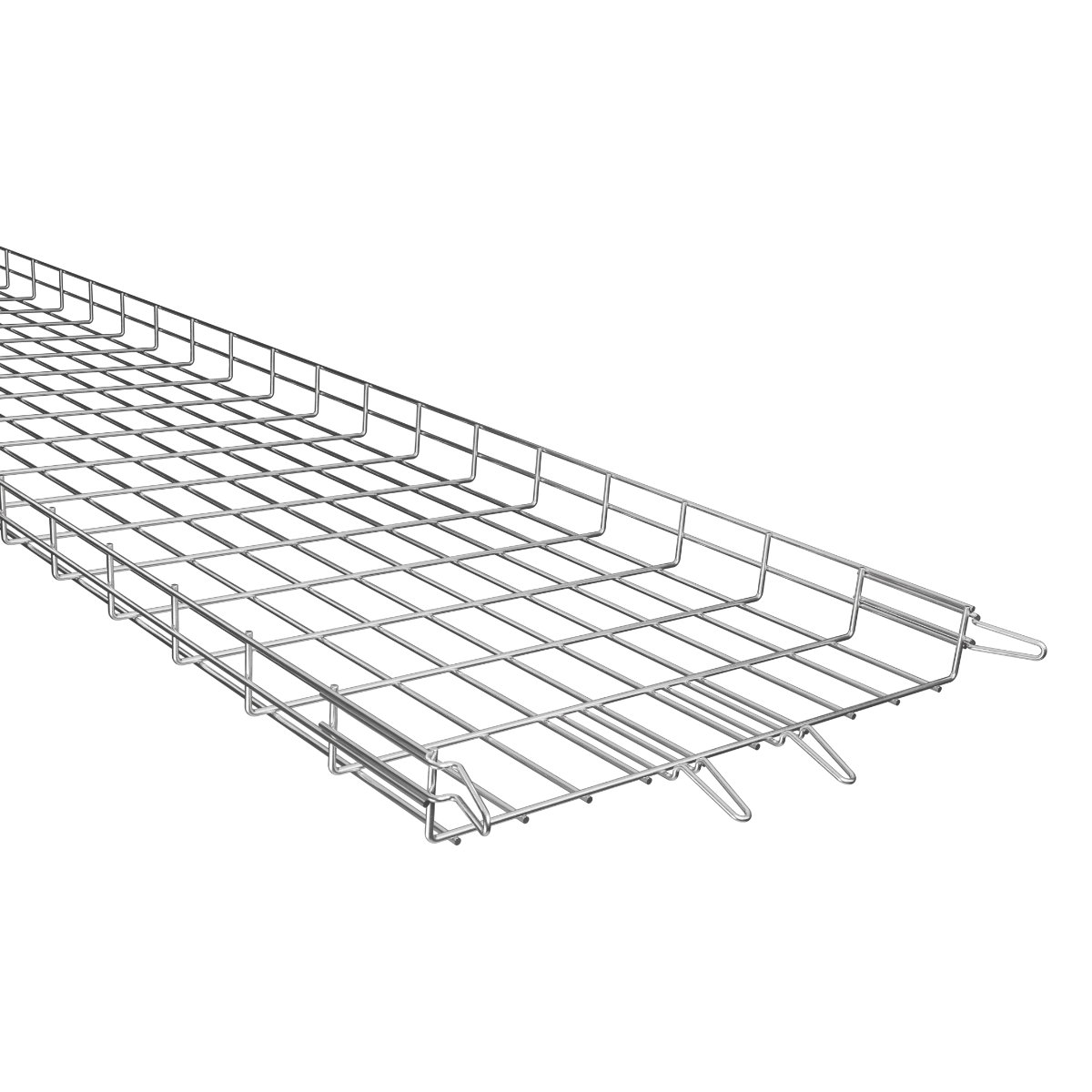

Imagine ilustrativă
Datový list
Cod Ean8595568939982
Cod vamal73262000
Greutate2,7100 kg/m
Acoperire de suprafatăElectrolytic Galvanized

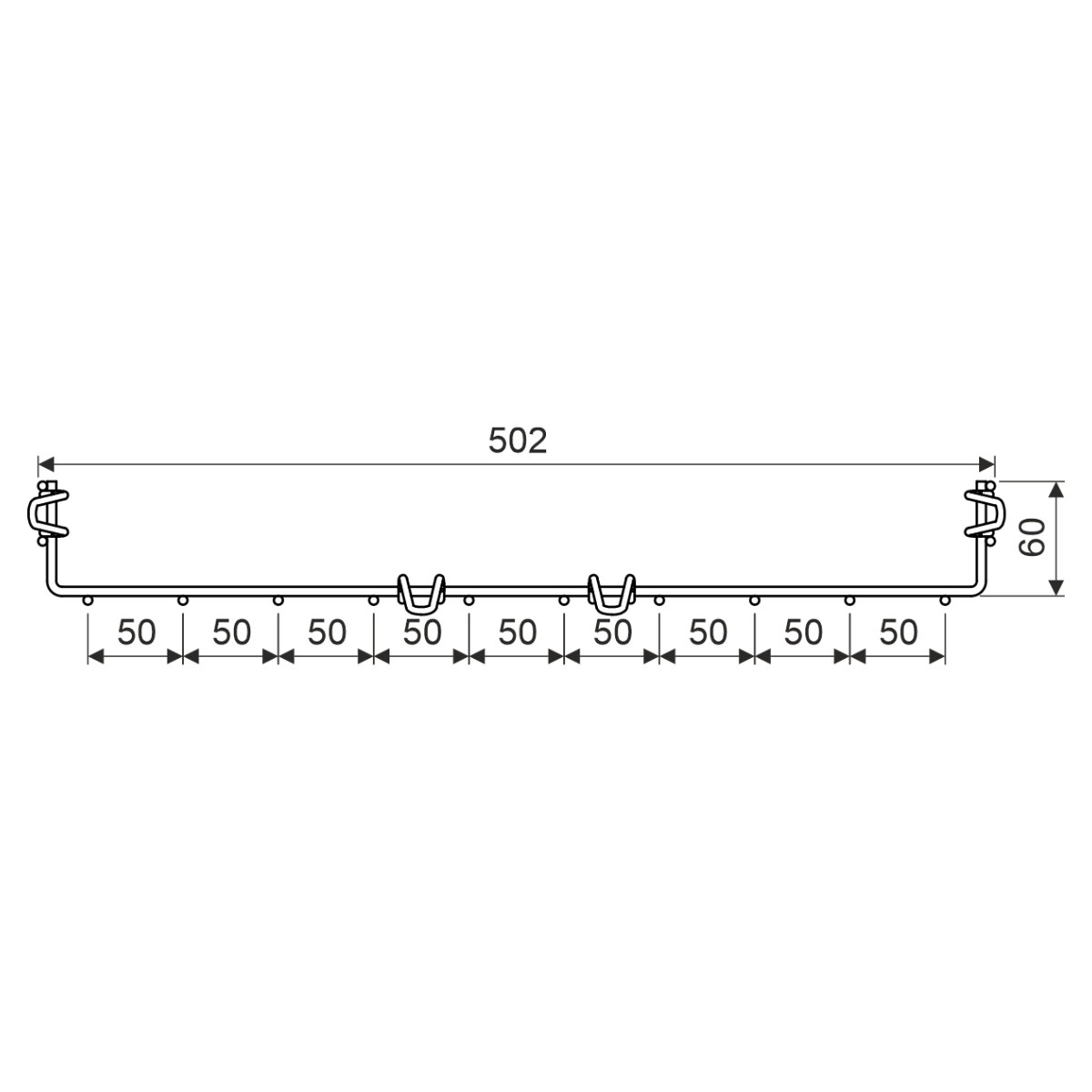

Lătime500 mm
Înăltime60 mm
Lungime3000 mm
StandardeČSN EN 61537
Diametru cablu4,6 - 4,8 mm
Grătar inferior50x100
Partea de instalare pe baza jgheabului de tablă2

Each wire tray has integrated connectors at one end designed to firmly connect the route. In this way the conductive connection is fulfilled.

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
