Cod Ean | 8595057616370 |
Cod vamal | 39259080 |
Greutate | 0,0540 kg/pcs |
Culoare | white |
Material | PVC |
Material fără plumb | yes |
Cu suto-stingere | 30 s |
Voltaj nominal | <= 400 V |
Curent nominal | <= 16 A |
Rezistența la temperatură | -5 - 60 °C |
Testat cu buclă incinsă | 850 °C |
Lătime | 80 mm |
Înăltime | 104 mm |
Adâncime | 28 mm |
Clasa de reacţie la foc a materialului de fond | A1 - D |
Extinderea reacției la foc a materialelor de bază Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F | |
Permite instalarea aparatajului dublu | yes |
Standarde | ČSN EN 60 670-1 |
Descriere impachetare the boxes are packed in a shrink foil of 10 pieces and the screws are enclosed |

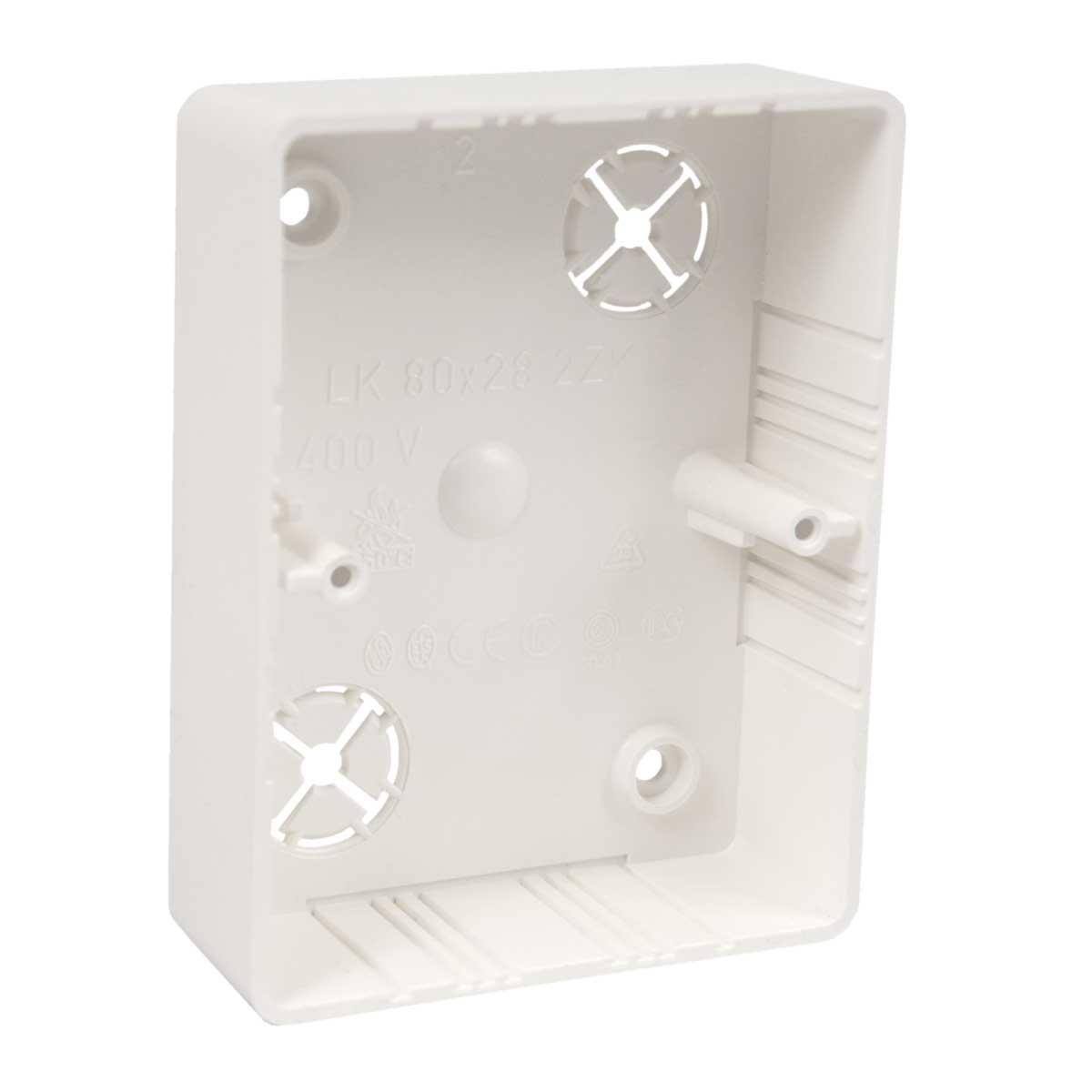

Intended for devices of Classic and Swing - ABB series with greater mounting depth. To install on materials with fire classes E or F, use insulating pad.
