Cod Ean8595568909046
Cod vamal39259080
Greutate0,04 kg/pcs
Culoarelight wood
MaterialPVC
Material fără plumbyes
Cu suto-stingere30 s
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C
Lătime80,5 mm
Înăltime80,5 mm
Adâncime28 mm
Clasa de reacţie la foc a materialului de fondA1 - D
Extinderea reacției la foc a materialelor de bază
Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F
StandardeČSN EN 60 670-1
Descriere impachetare
the boxes are packed in a shrink foil of 10 pieces and the screws are enclosed

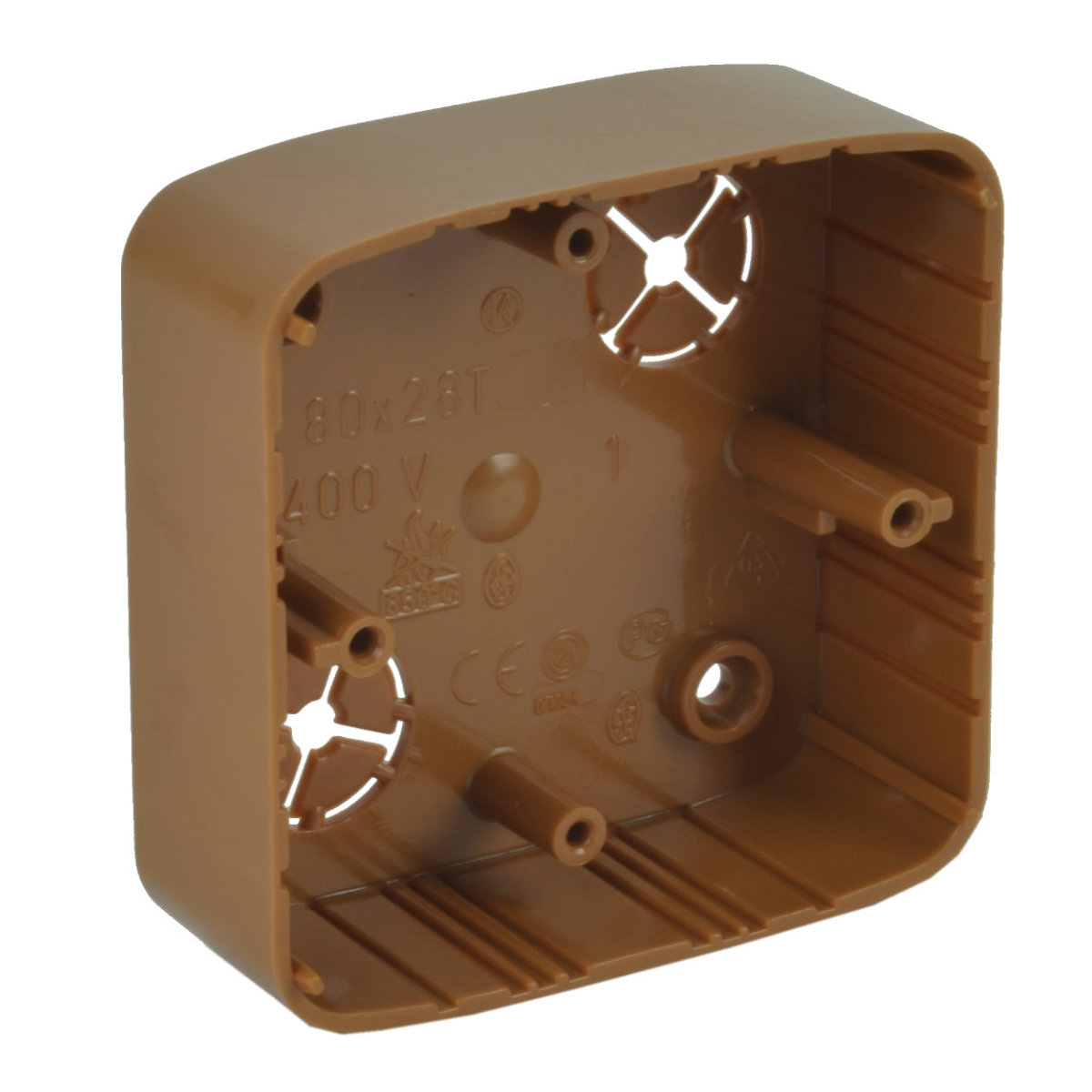

Intended for devices of Tango - ABB series with greater mounting depth. To install on materials with fire classes E or F, use insulating pad.
