Imagine ilustrativă
To download 3D models, please login or create an account and request access.
V_EN
| Cod Ean | 8595057681019 |
| Cod vamal | 72169180 |
| Greutate | 0,46 kg/m |
| Acoperire de suprafată | Hot Dip Galvanized |
| Rezistența la temperatură | -50 - 150 °C |
| Lătime | 40 mm |
| Înăltime | 10 mm |
| Lungime | 2000 mm |
| Standarde | ČSN EN 61537 |
| Grosimea foii de tablă | 0,8 mm |

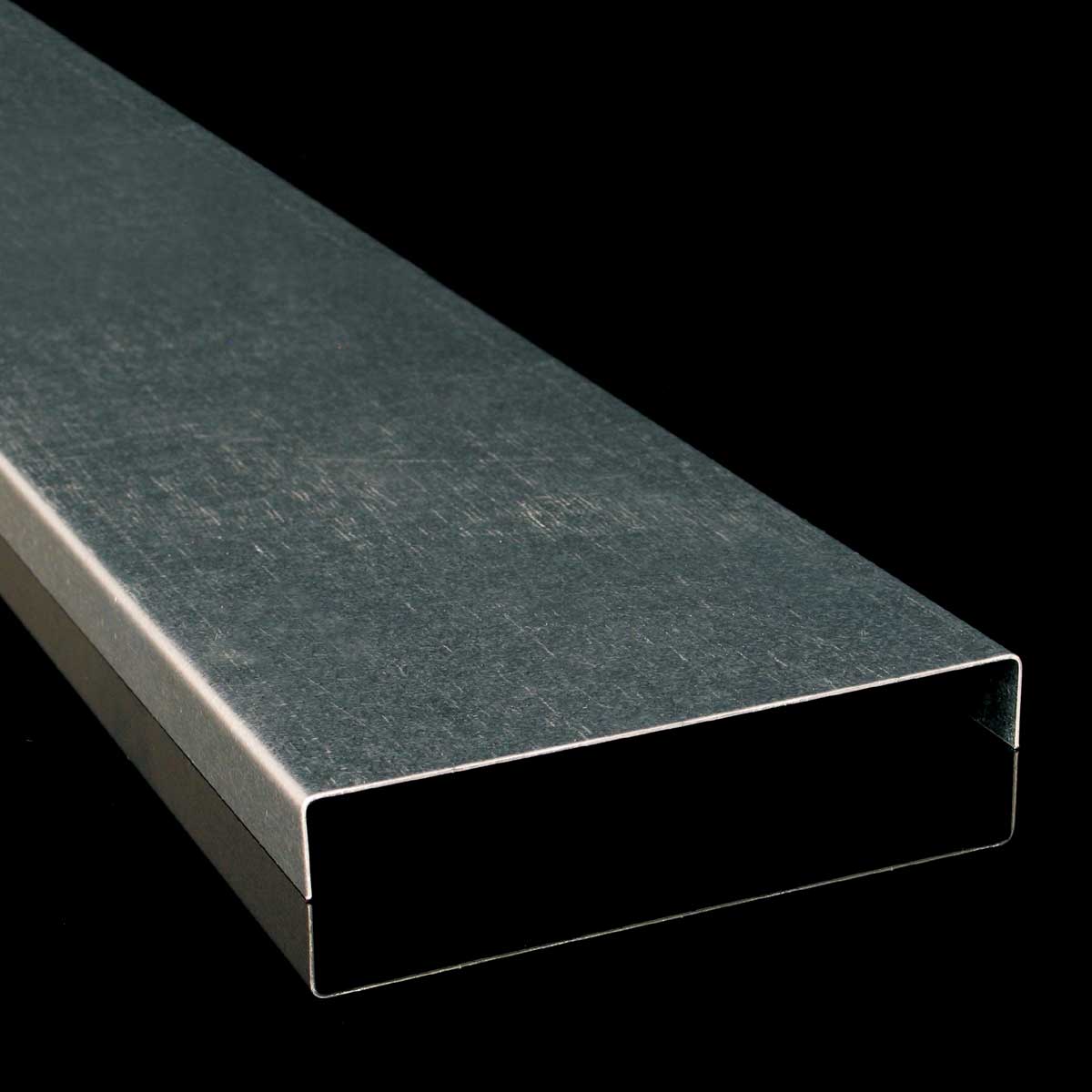

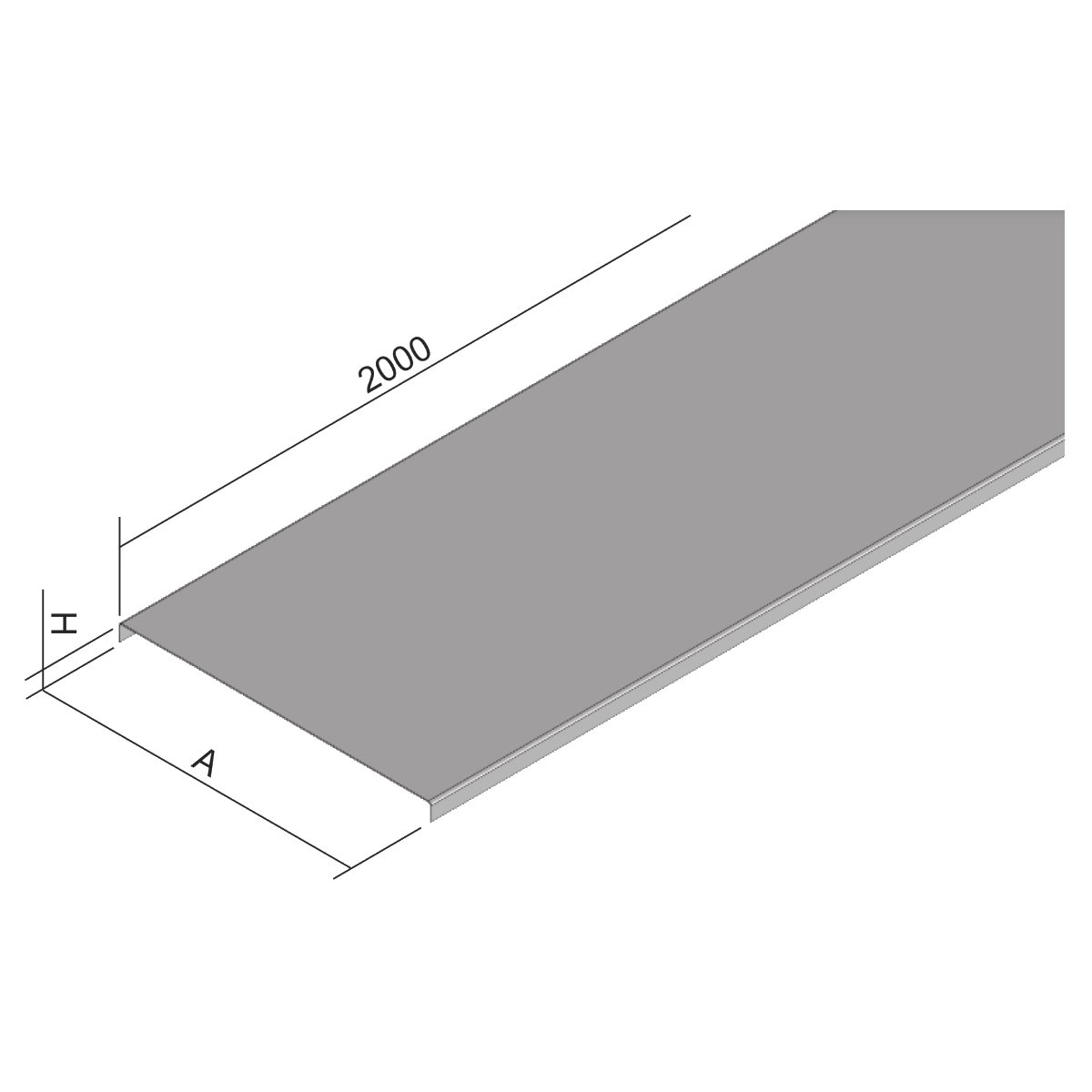

The standard length of the cable tray cover is 2 m. Stated sheet metal thickness is delivered as standard. Cover with thicker sheet metal can be delivered without prior notice. The fixing of the cover to the tray is done using the cover fixture VU (2 pcs per meter).
