Cod Ean8595568937841
Cod vamal72169180
Greutate0,7100 kg/m
Acoperire de suprafatăMagnelis®
Rezistența la temperatură-50 - 150 °C
Lătime100 mm
Înăltime11 mm
Lungime2000 mm
Funcționalitate în focP90-R, E90, PS90
StandardeČSN EN 61537
Standardele cu privire lade rezistența la focČSN 73 0895, DIN 4102-12, STN 92 0205
Grosimea foii de tablă0,75 mm

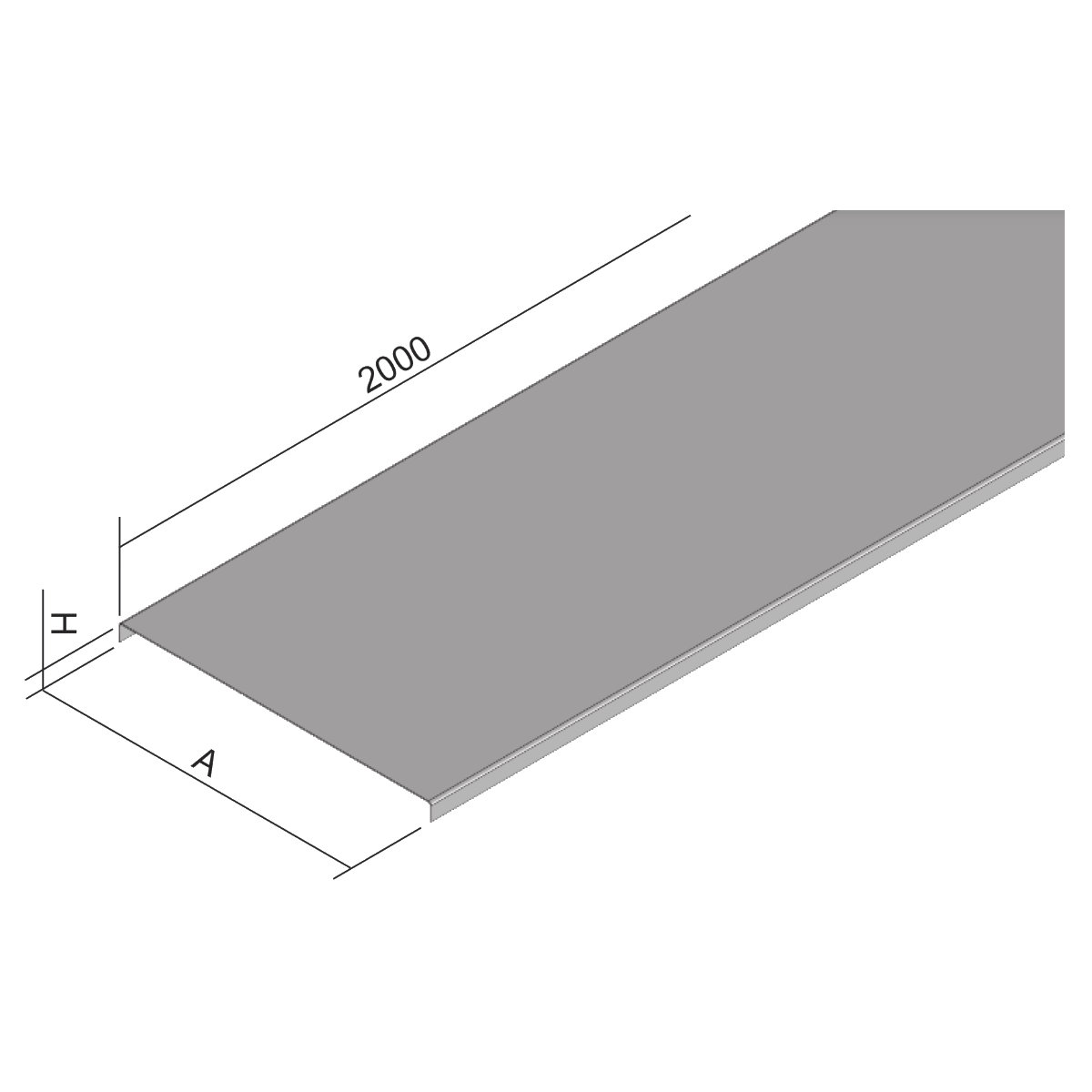

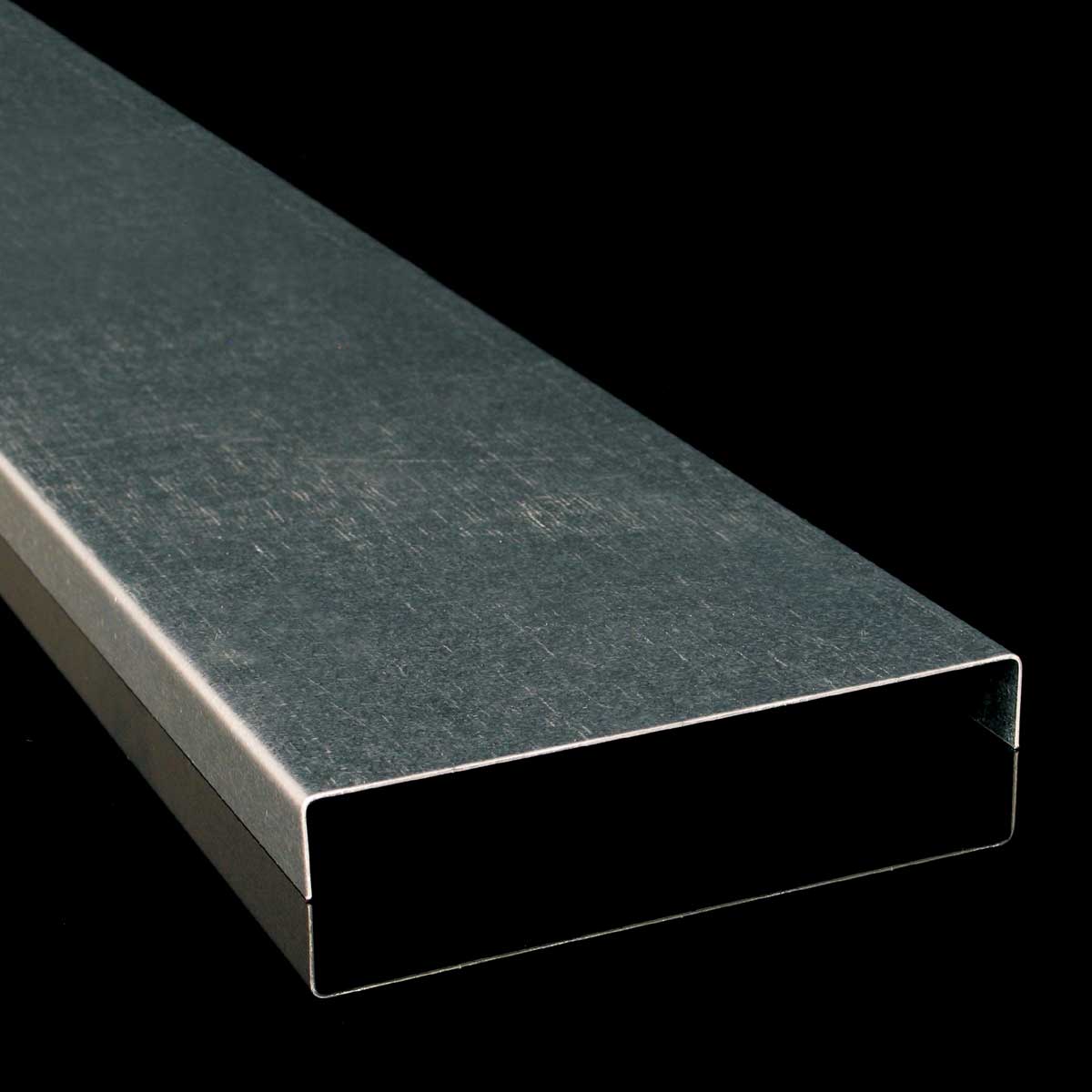

The standard length of the cable tray cover is 2 m. Stated sheet metal thickness is delivered as standard. Cover with thicker sheet metal can be delivered without prior notice. The fixing of the cover to the tray is done using the cover fixture VU (2 pcs per meter).

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
