Imagine ilustrativă

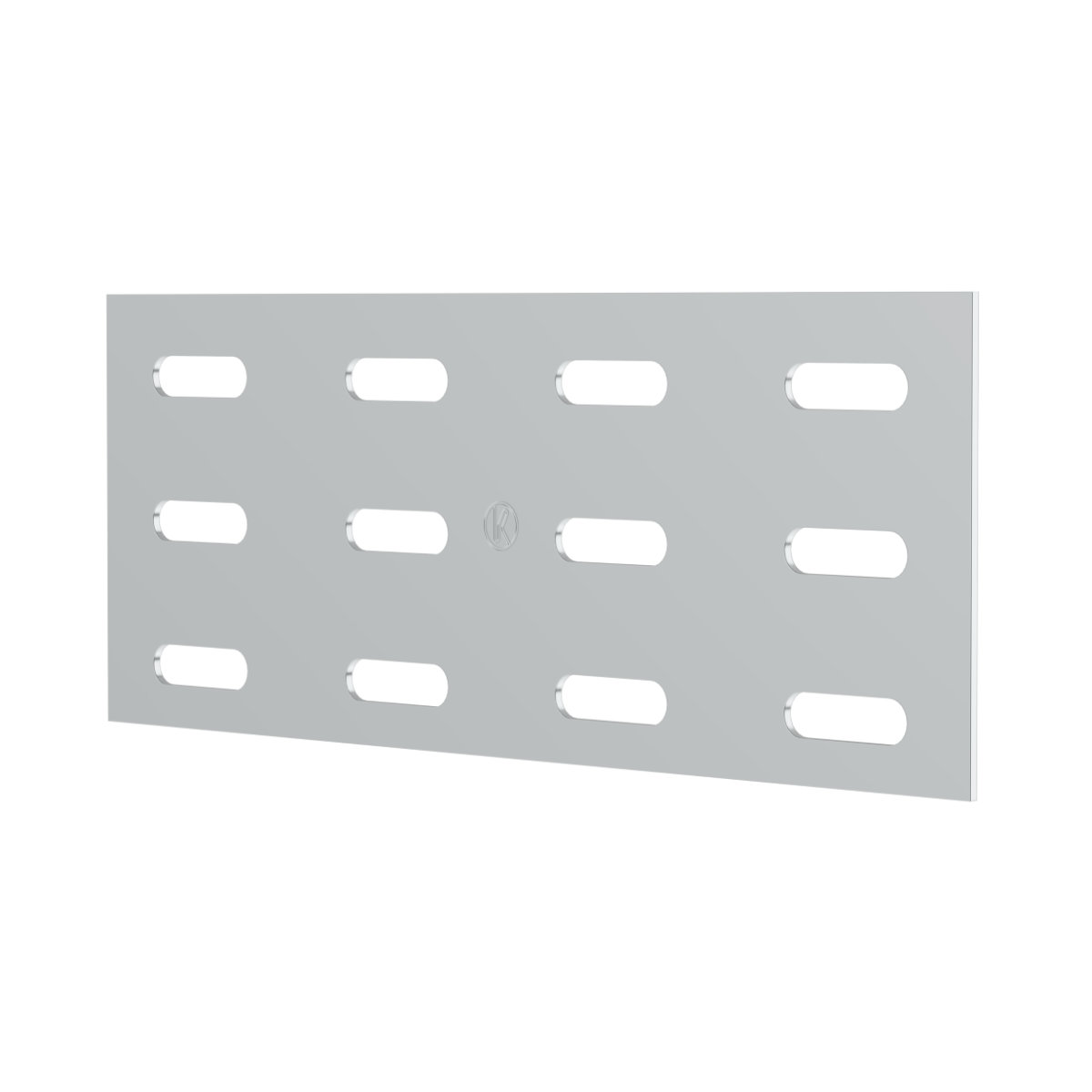

S 85X200_GMT
S 85X200_GMT
S 85X200_GMT
S 85X200_GMT
To download 3D models, please login or create an account and request access.
Cod Ean8595568926098
Cod vamal73269098
Greutate0,15 kg/pcs
Acoperire de suprafatăNon electrolytic plating Geomet
Rezistența la temperatură-50 - 150 °C
StandardeČSN EN 61537
Grosimea foii de tablă1,2 mm
Cantitatea de şuruburi pentru instalare12

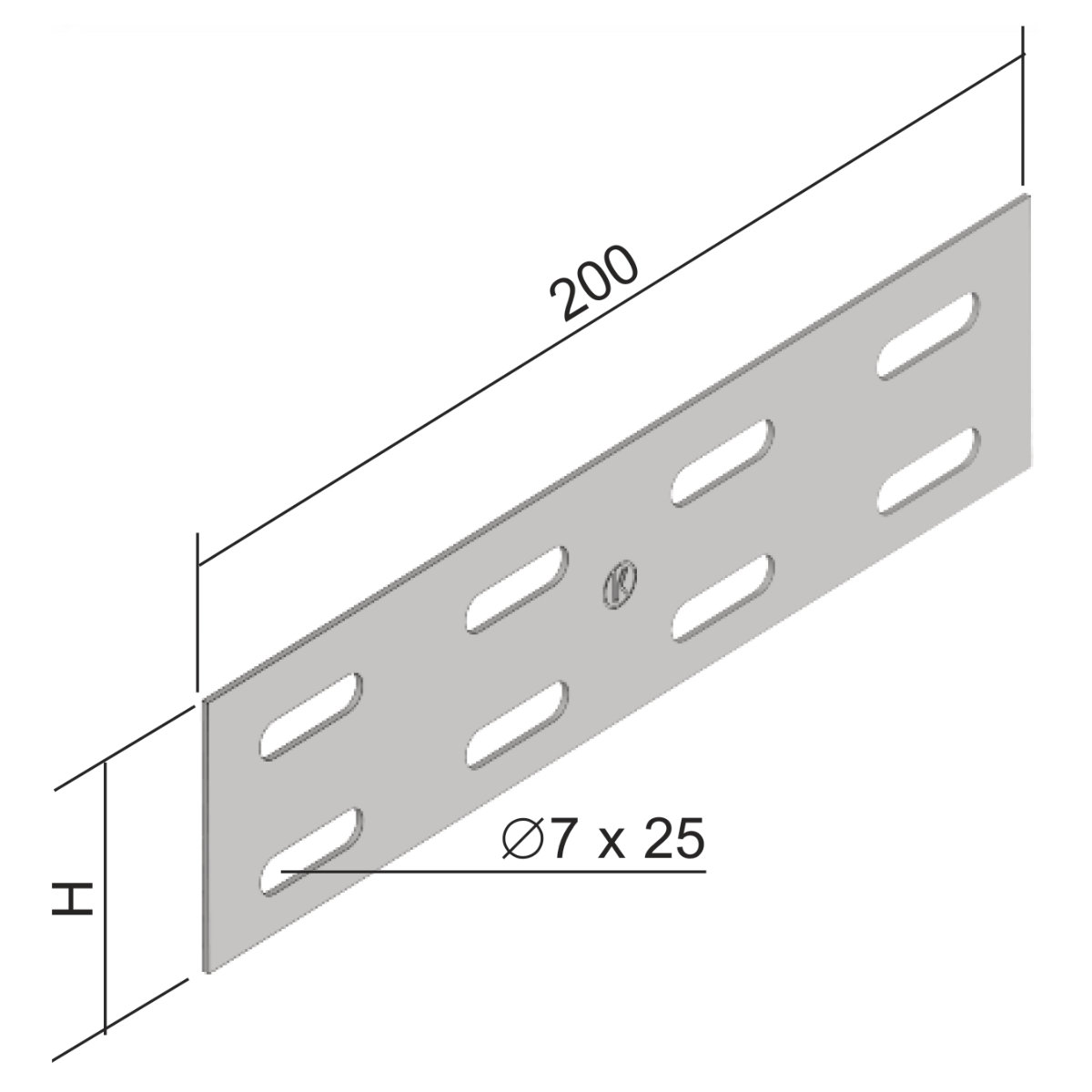

Dimensiunea H75 mm
Pentru inălțimea jgheabului de cabluri85 mm

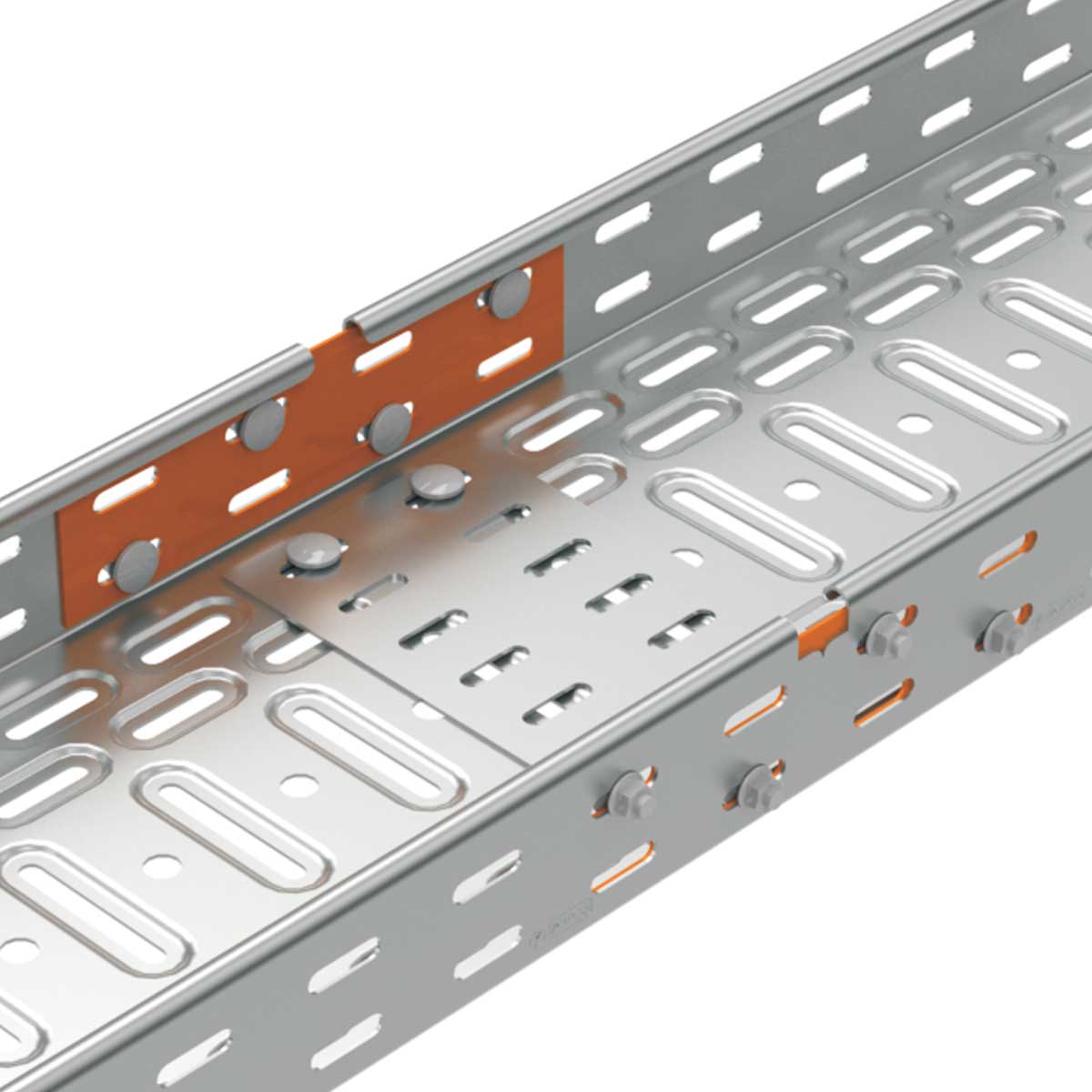

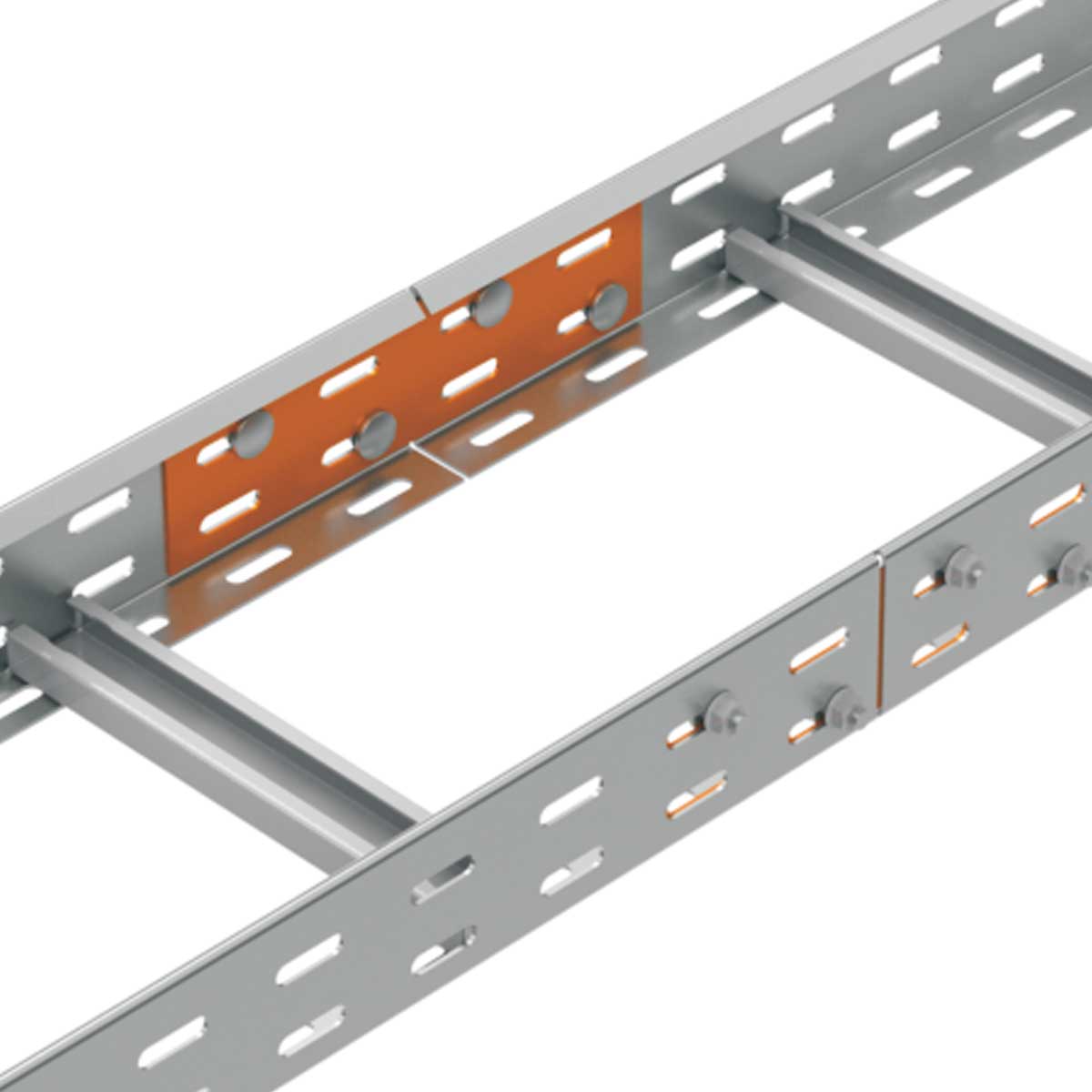

Used to connect trays / ladders with no built-in connector or if the connector has been removed. Connectors can be bent to create an angled branch. Attached using NSM 6X10 screws that meet the requirement for conductive bonding.
