Cod Ean8595568926081
Cod vamal73269098
Greutate0,10 kg/pcs
Acoperire de suprafatăNon electrolytic plating Geomet
Rezistența la temperatură-50 - 150 °C
Funcționalitate în focP90-R, E90, PS90
StandardeČSN EN 61537
Standardele cu privire lade rezistența la focČSN 73 0895, DIN 4102-12, STN 92 0205
Grosimea foii de tablă1,2 mm
Cantitatea de şuruburi pentru instalare8

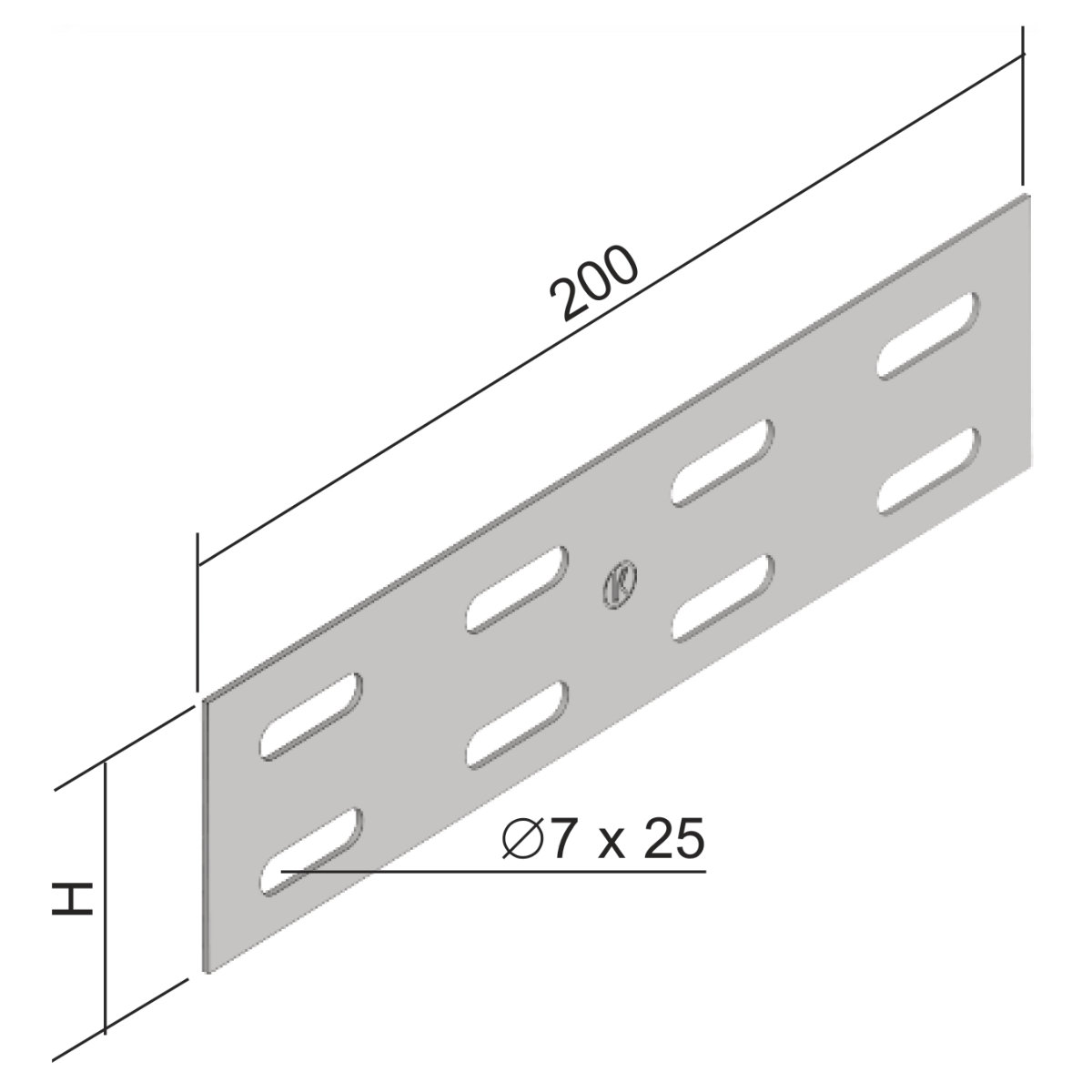

Dimensiunea H50 mm
Pentru inălțimea jgheabului de cabluri60 mm

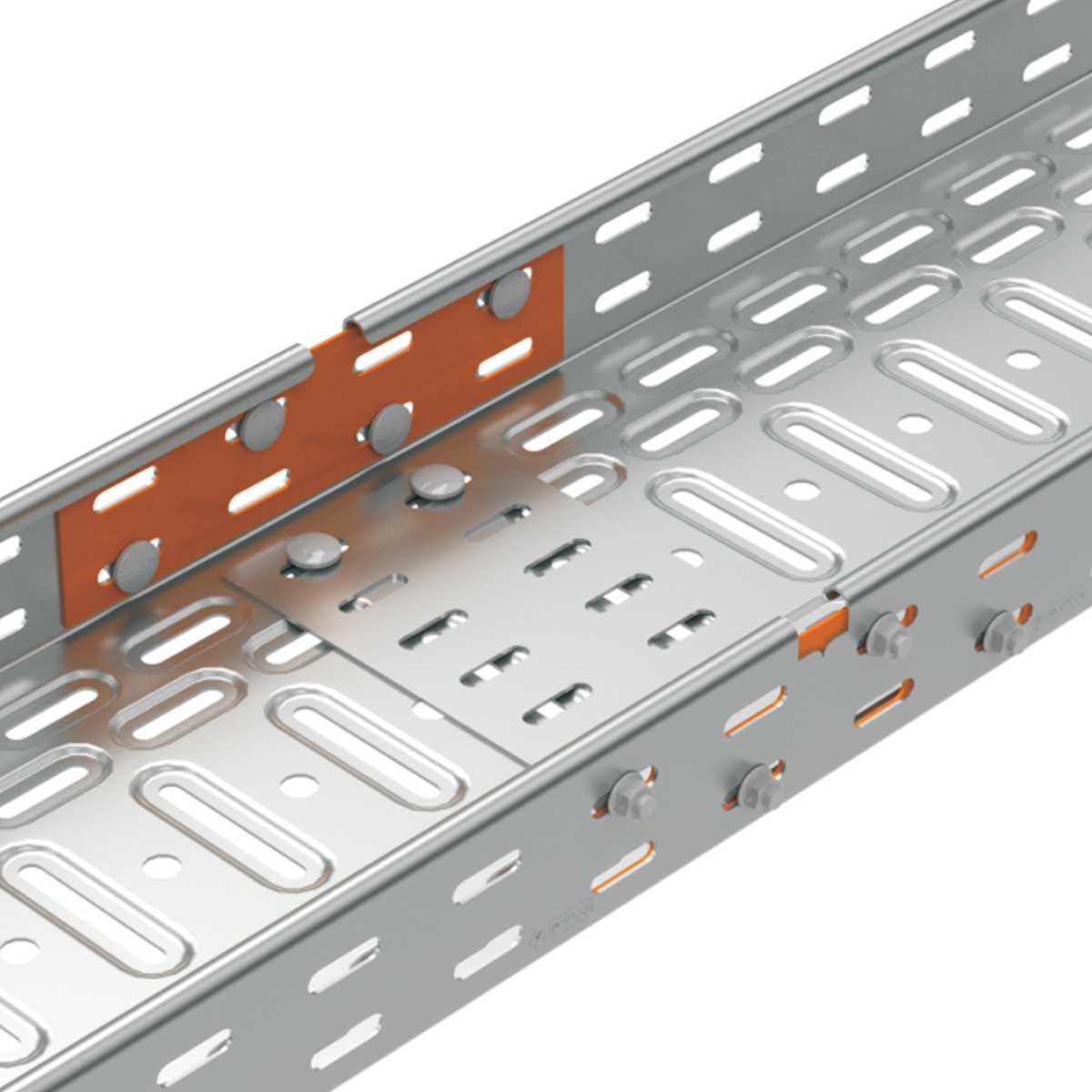

Used to connect trays / ladders with no built-in connector or if the connector has been removed. Connectors can be bent to create an angled branch. Attached using NSM 6X10 screws that meet the requirement for conductive bonding.

Note for system with maintained functionality in fire:
It serves for connecting trays. Fixing is carried out by screws NSM 6X10.
You find more information in the catalogue Systems with maintained functionality in fire.
