NIXKZN_EN
| Cod Ean | 8595057669451 |
| Cod vamal | 73089059 |
| Greutate | 1,13 kg/m |
| Acoperire de suprafată | Stainless steel AISI 304 |
| Rezistența la temperatură | -50 - 150 °C |

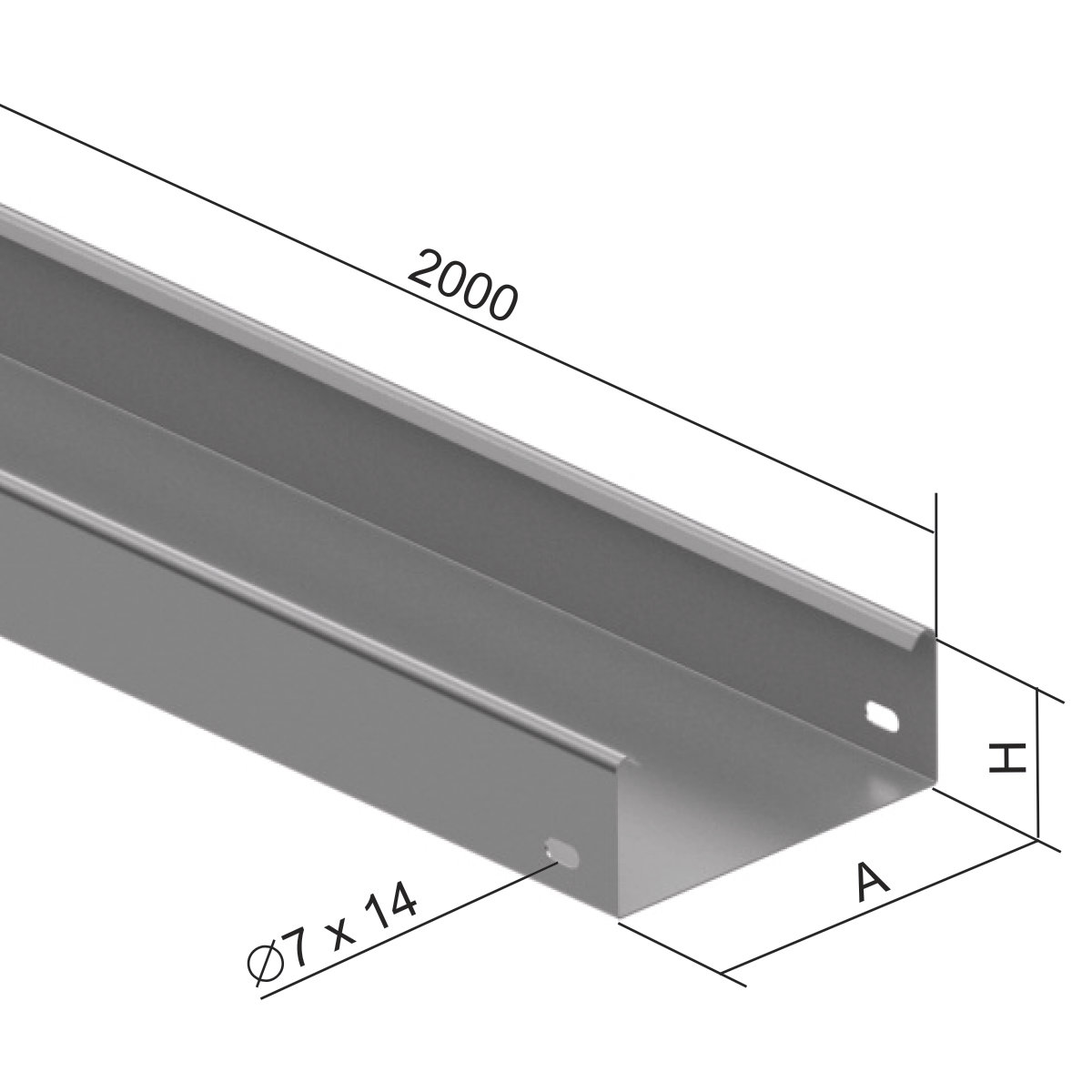

| Lătime | 62 mm |
| Înăltime | 50 mm |
| Lungime | 2000 mm |
| Standarde | ČSN EN 61537 |
| Grosimea foii de tablă | 0,8 mm |
| Cantitatea de şuruburi pentru instalare | 4 |
The joining of the trays is performed by using of the couplings NIXS 100 and by the bolts NIXSM 6X10. Tray is connected directly to accessories (with no connectors – the tray is inserted into the accessory), using NIXSM 6X10 screws.
