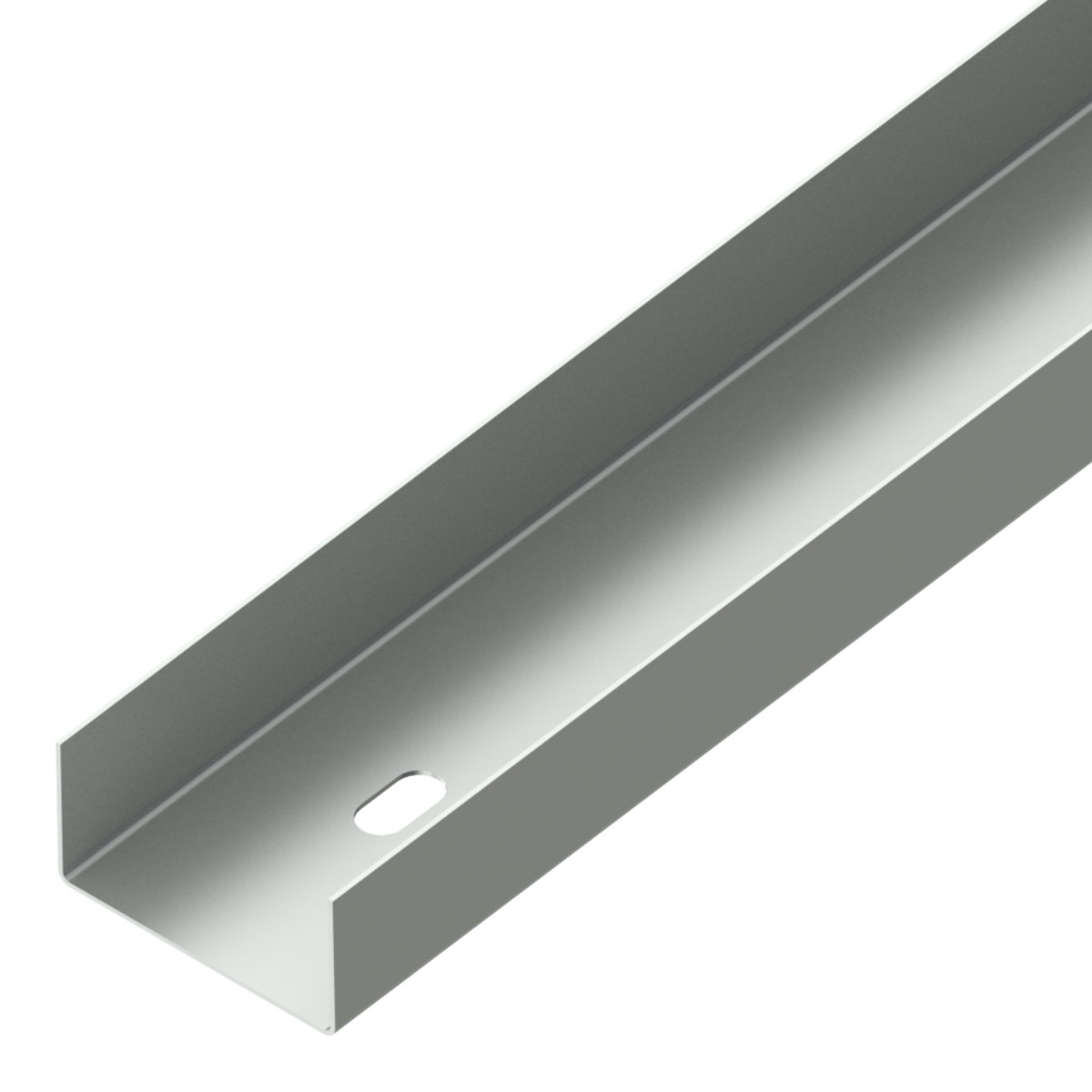

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
NIXKZN20X40_EN
| Cod Ean | 8595057669444 |
| Cod vamal | 73089059 |
| Greutate | 0,40 kg/m |
| Acoperire de suprafată | Stainless steel AISI 304 |
| Rezistența la temperatură | -50 - 150 °C |

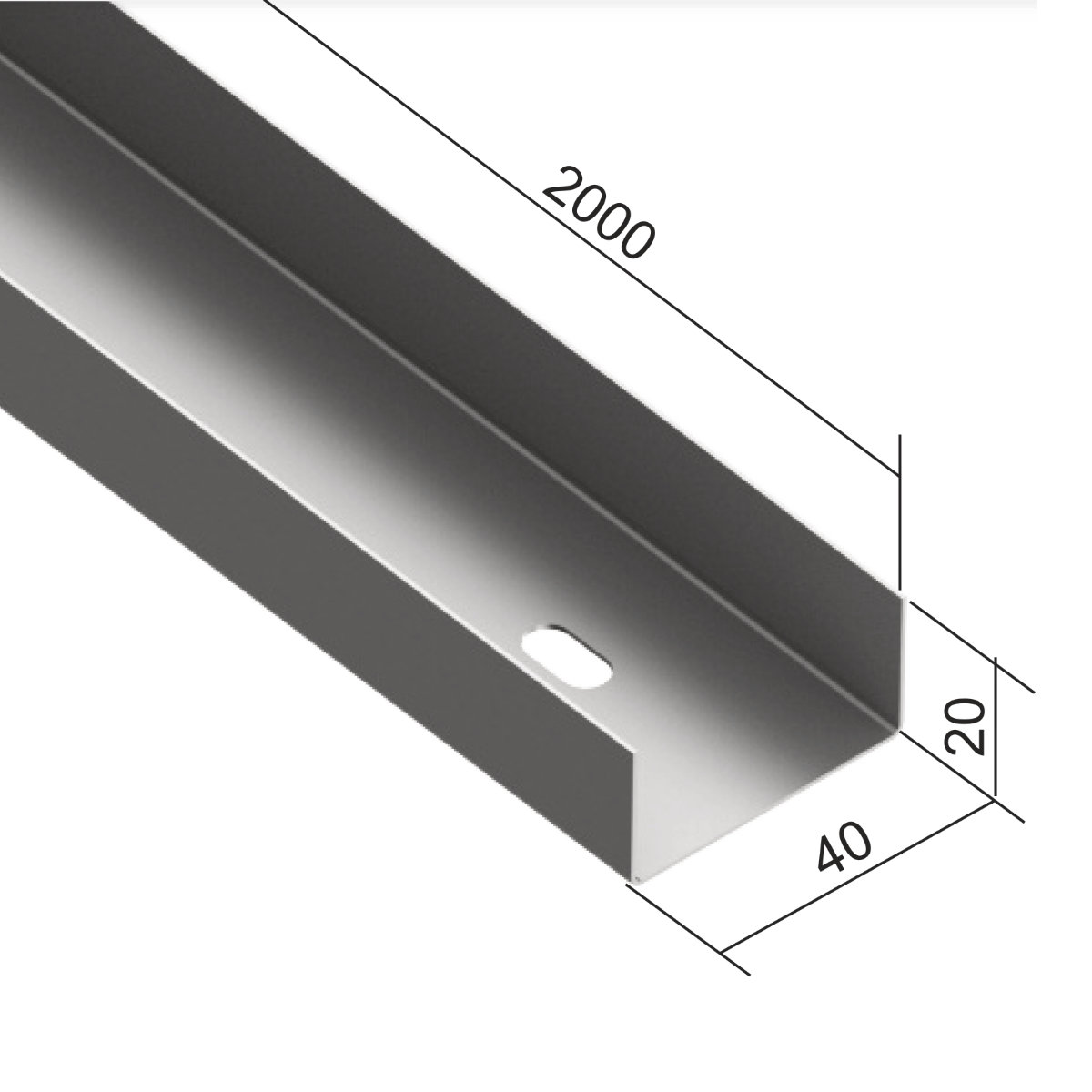

| Lătime | 40 mm |
| Înăltime | 20 mm |
| Lungime | 2000 mm |
| Standarde | ČSN EN 61537 |
| Grosimea foii de tablă | 0,8 mm |
| Cantitatea de şuruburi pentru instalare | 2 |
The joining of the trays is performed by using of the coupling NIXS 40 and by two bolts NIXSMP 5X10.
In the bottom, at the ends of the cable tray there is a hole Ø6x12 mm for connection.
