Cod Ean8595057610163
Cod vamal39259020
Greutate0,2300 kg/m
Culoarewhite
MaterialPVC
Material fără plumbyes
Cu suto-stingere30 s
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C
Protectie mecanicăIK06
Rezistență la impact0,5 J
Antibacterialyes

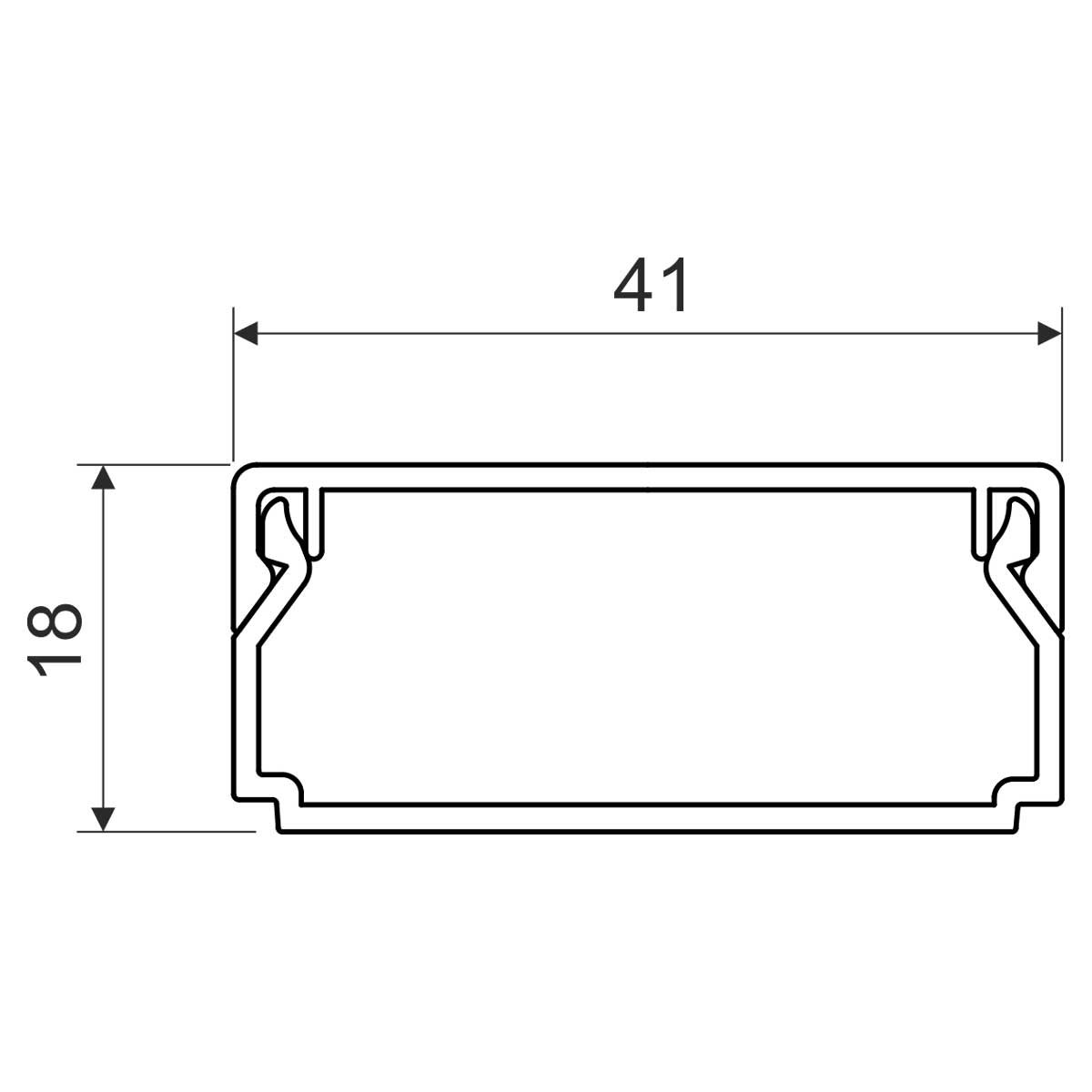

Lătime41 mm
Înăltime18 mm
Lungime2 m
Zona interioară560 mm2
Toleranță
The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C.
Utilizare
they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use.
Zonă cu pericol de explozie
Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14.
Clasa de reacţie la foc a materialului de fondA1 - F
Tipuri de protecțieIP 40
StandardeČSN EN 50 085-1
Descriere impachetarepackage - foil

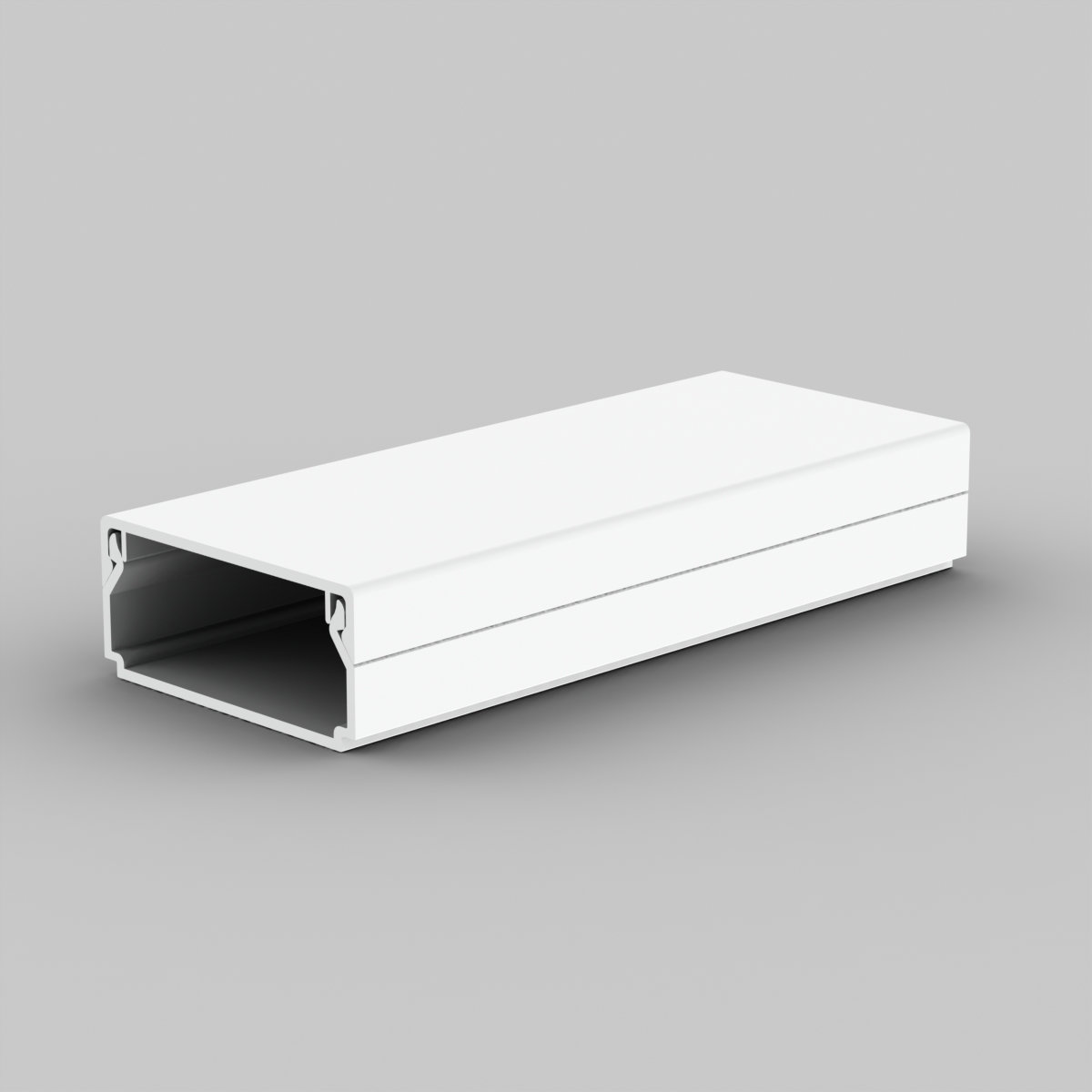

Standard shape. Designed for wall or ceiling mounting. Double lock on lid increasing the trunking’s rigidity and ensuring stronger cover fixation.
