Cod Ean8595057657175
Cod vamal39259020
Greutate0,12 kg/m
Culoarewhite
MaterialHF
Material fără halogeniyes
Material fără plumbyes
Cu suto-stingere30 s
Rezistența la temperatură-25 - 90 °C
Testat cu buclă incinsă850 °C
Protectie mecanicăIK06
Rezistență la impact1 J
Antibacterialyes

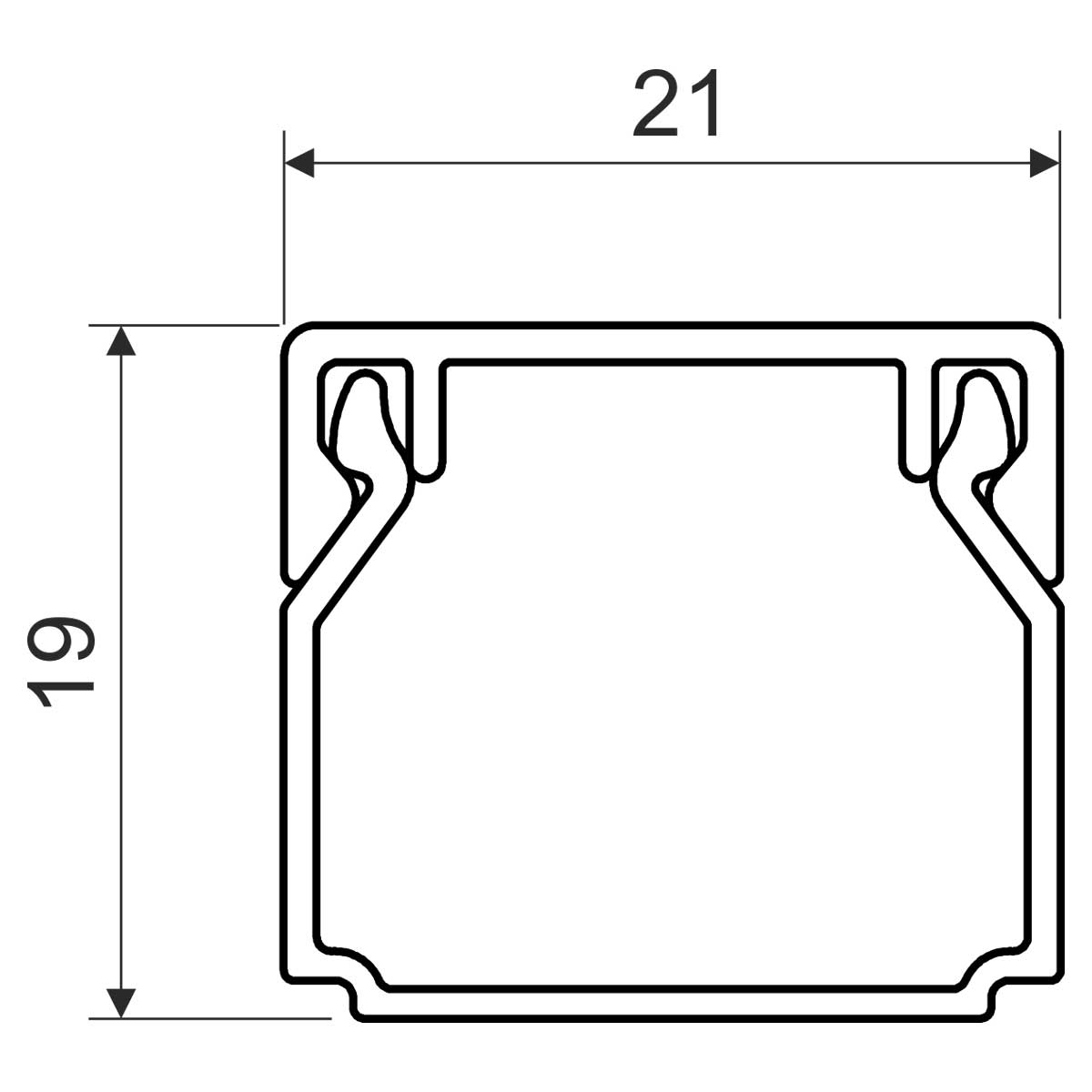

Lătime21 mm
Înăltime19 mm
Lungime2 m
Zona interioară260 mm2
Toleranță
The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C.
Utilizare
they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use.
Zonă cu pericol de explozie
Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14.
Clasa de reacţie la foc a materialului de fondA1 - F
Tipuri de protecțieIP 40
StandardeČSN EN 50 085-1
Descriere impachetarepackage - cardboard
Cu folie de protecţieyes

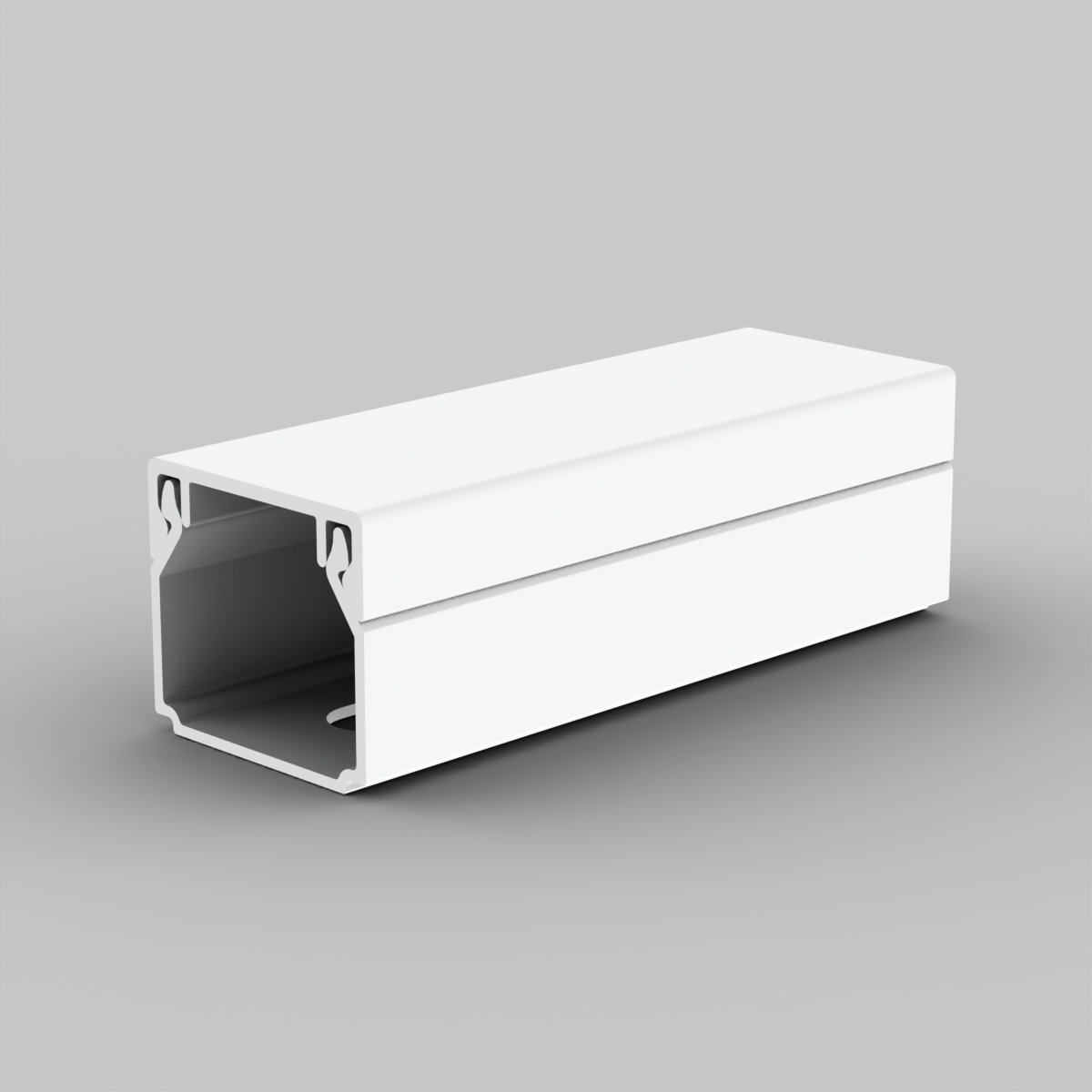

It does not contain halogen elements, suitable for environments with high concentrations of people. Standard shape. Designed for wall or ceiling mounting. Double lock on lid increasing the trunking’s rigidity and ensuring stronger cover fixation.
