Imagine ilustrativă
KUL6845LD2_EN
| Cod Ean | 8595568930644 |
| Cod vamal | 39259080 |
| Greutate | 0,0448 kg/buc |
| Material | PVC |
| Material fără plumb | yes |
| Izolare fonică | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

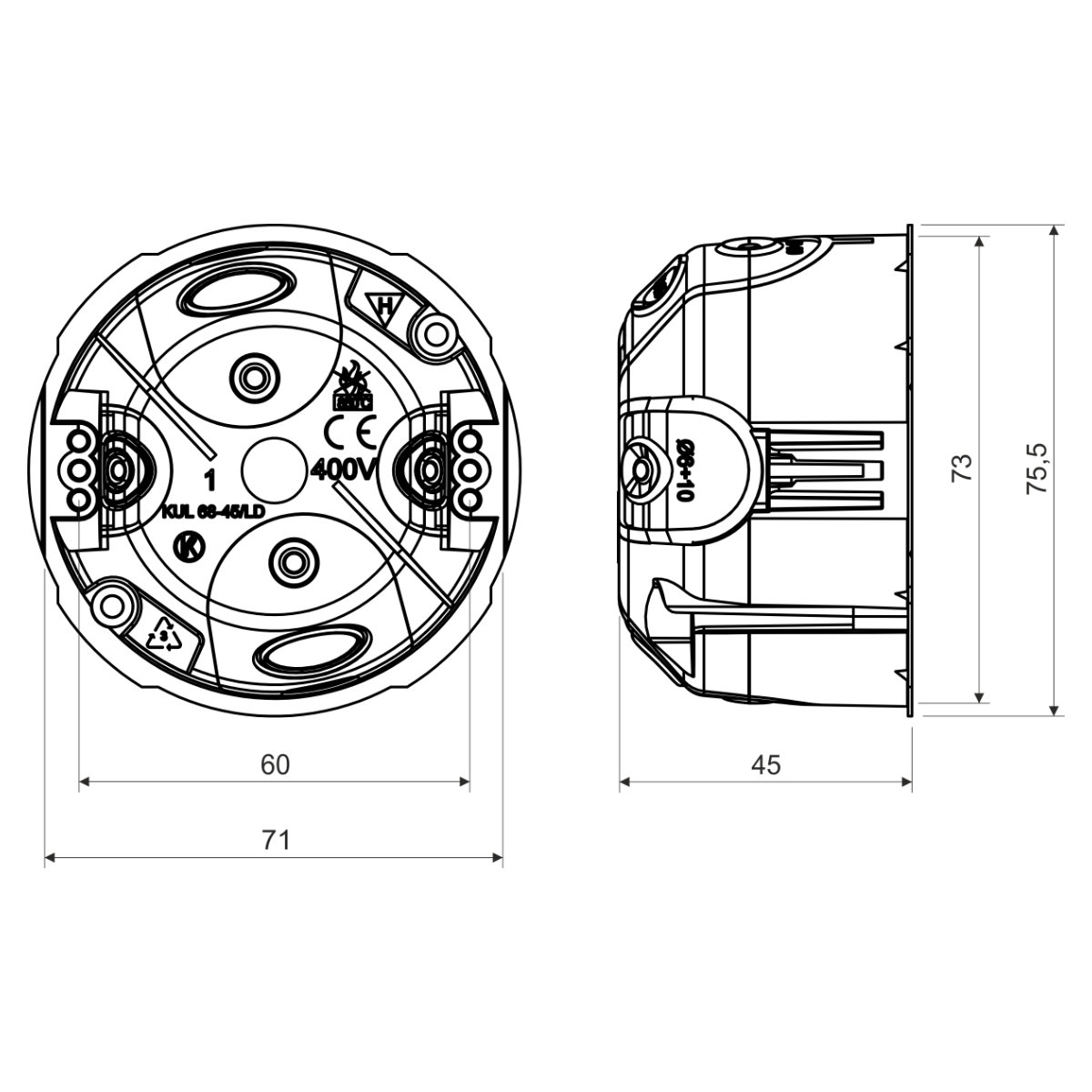

| În medie | 73 mm |
| Adâncime | 45 mm |
| Diametrul orificiului găurit (forat) | 73 mm |
| Recomandările producătorului For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Tipuri de protecție | IP 30 |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare boxes fitted with screws for mounting the box in plasterboard, the lid screwed to the box | |

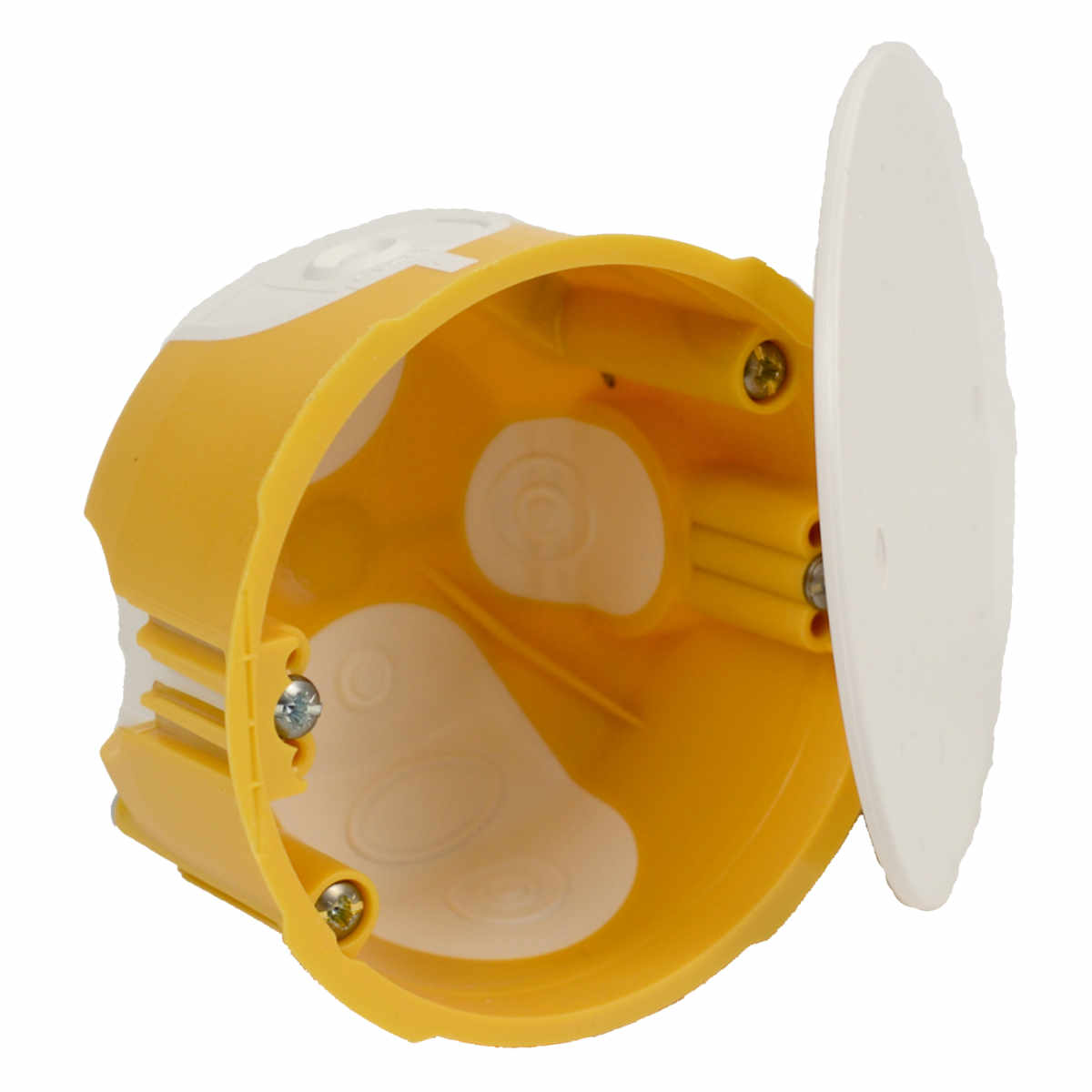

Inlet openings made of flexible material. The instalation of the cable is done by pulling the pre-pressed inlet on the flexible membranes and inserting the cable or pipe into the hole formed. Air proofed even with inserted cable or pipe. Suitable for low-energy or passive houses and for soundproof walls with attenuation up to 69 dB. Mounting screws are fitted with a double thread for quick installation, the box includes plastic feet. Prevents airflow through the installation. The IP30 protection complys a box fitted with a lid. When mounting, it is not necessary to countersink the plasterboard edge.
