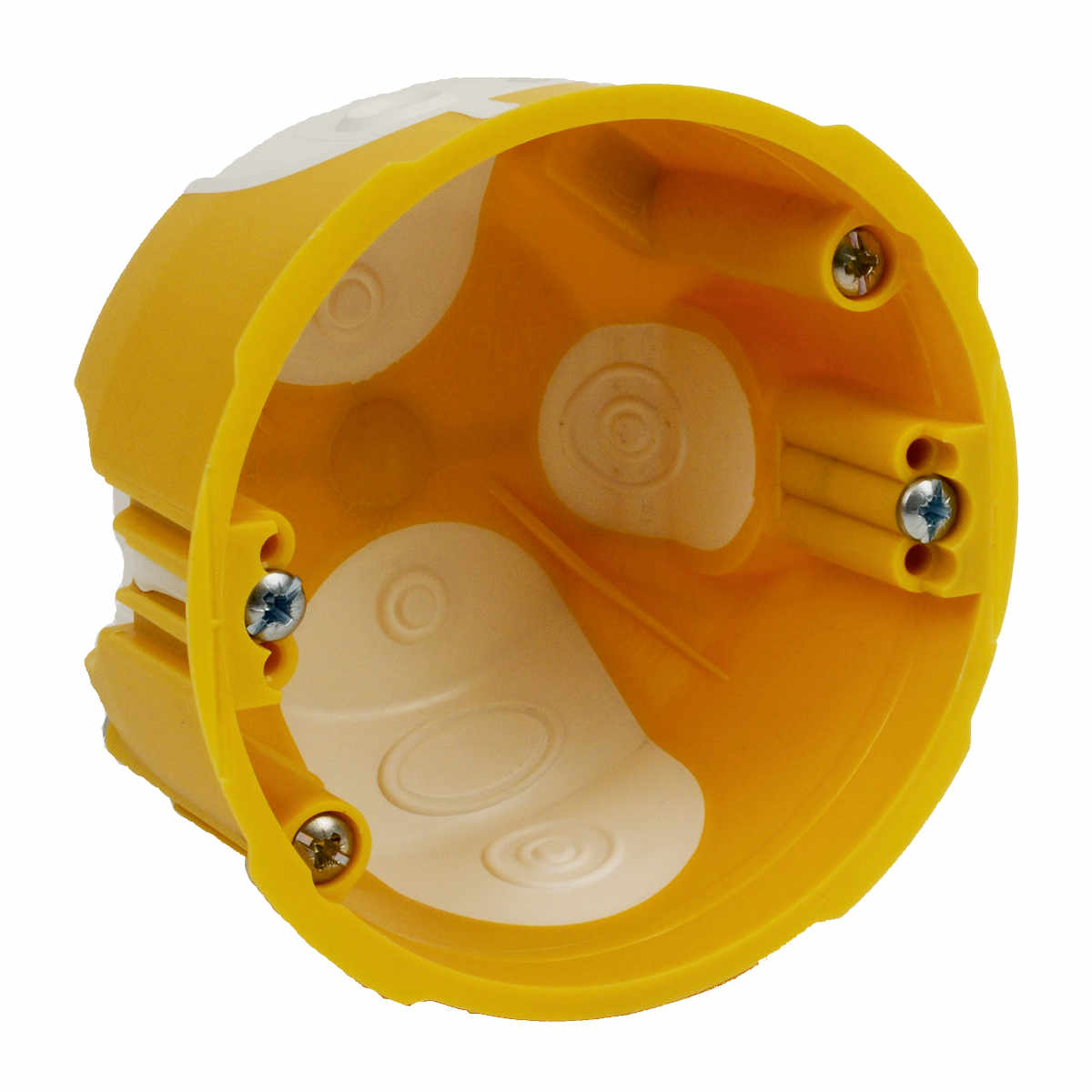

KUL 68-45/LD NA - krabice univerzální
To access download of 3D models login or register.
Cod Ean8595568929709
Cod vamal85363030
Greutate0,03 kg/pcs
MaterialPVC
Material fără plumbyes
Cu suto-stingere30 s
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C

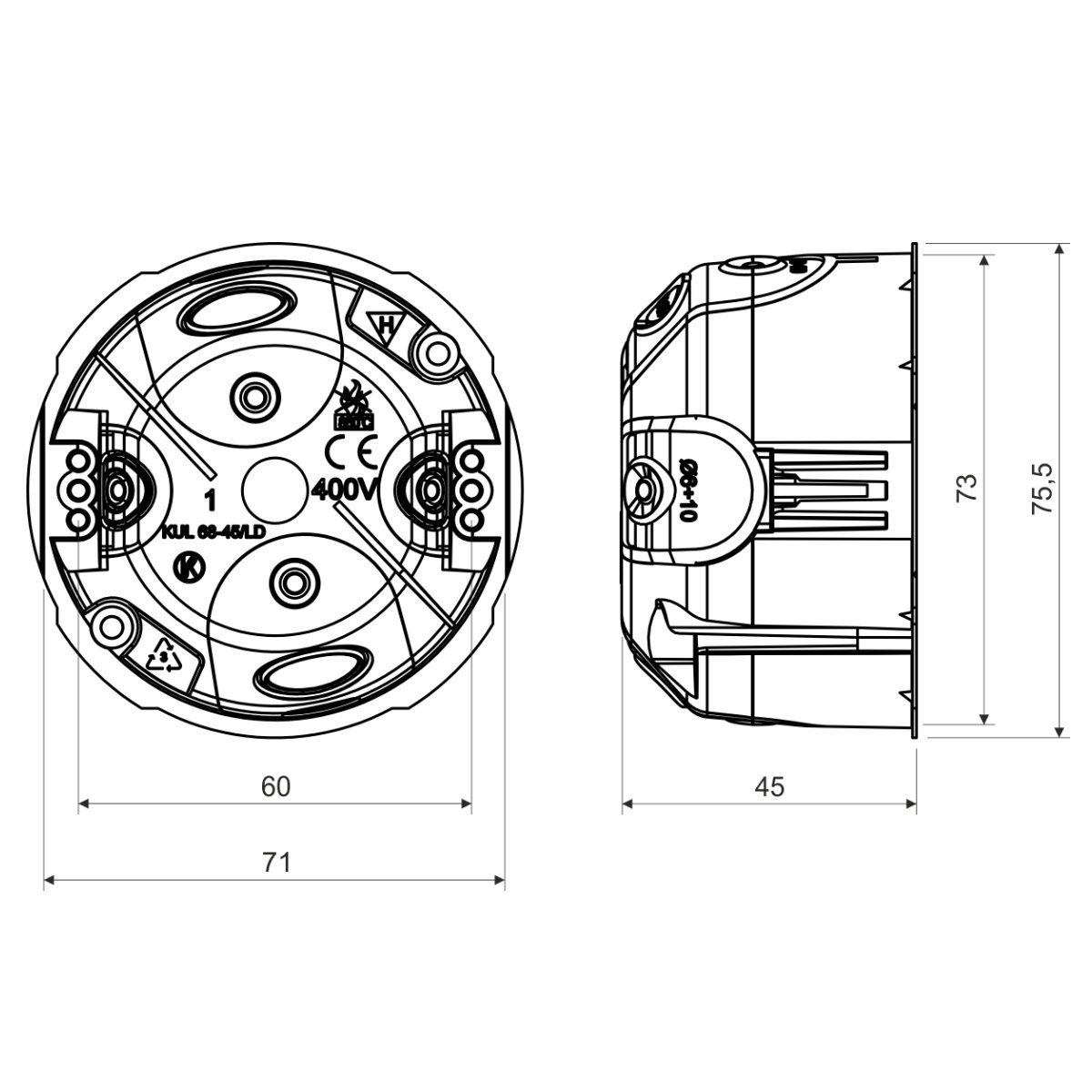

În medie73 mm
Adâncime45 mm
Diametrul orificiului găurit (forat)73 mm
Recomandările producătorului
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Clasa de reacție la focA1 - F
Posibilitate de conectare a 2 doze in serieyes
Tipuri de protecțieIP 30
StandardeČSN EN 60 670-1
Descriere impachetare
the box is fitted with screws for fixing onto plasterboard and with instrument screws

Inlet openings made of flexible material. The instalation of the cable is done by pulling the pre-pressed inlet on the flexible membranes and inserting the cable or pipe into the hole formed. Air proofed even with inserted cable or pipe. Suitable for low energy and passive houses. The fixing screws as well as the instrument screws are double-threaded for quick installation; the box has plastic flanges. When mounting, it is not necessary to countersink the plasterboard edge. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection. Boxing with 71 mm axial spacing can be done with the SKLD 2 coupling (not included), when joining, it is necessary to tear off the pre-marked part of the box rim. Protected by a European industrial design trademark.
