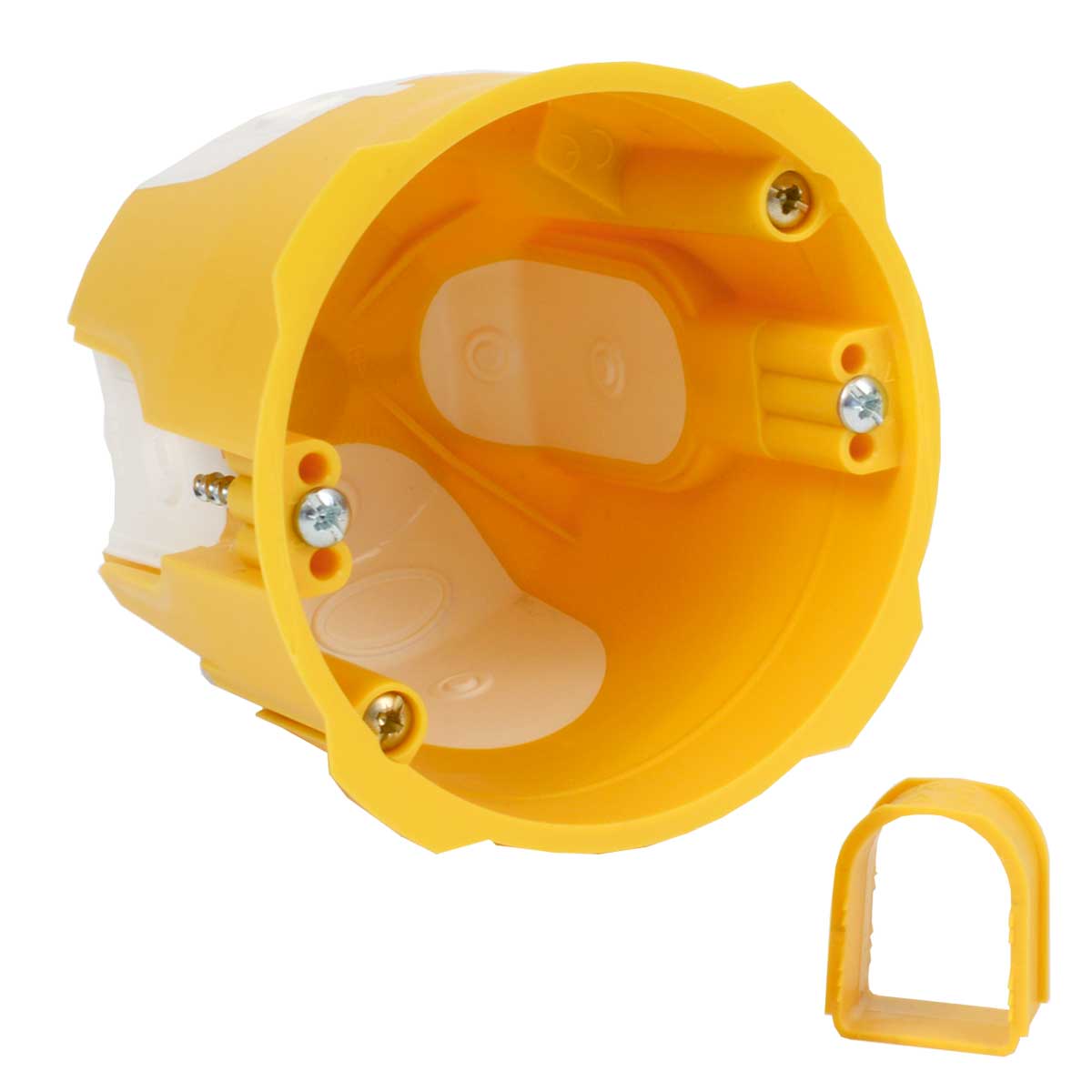

KPRL 68-70/LD NA - krabice univerzální
To download 3D models, please login or create an account and request access.
Cod Ean8595568925879
Cod vamal39259080
Greutate0,04 kg/pcs
Material fără plumbyes
Izolare fonicăyes
Cu suto-stingere30 s
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C

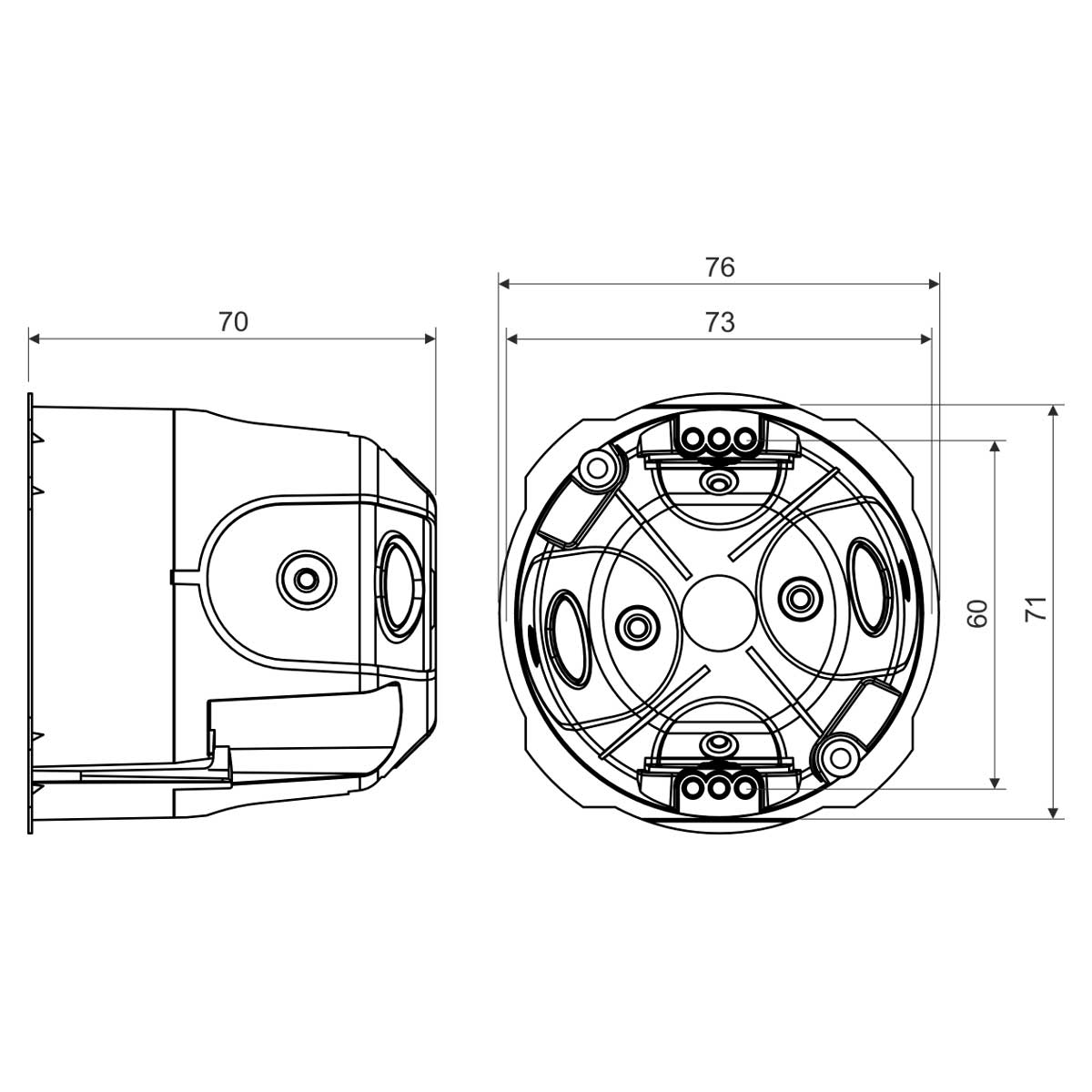

În medie73 mm
Adâncime70 mm
Diametrul orificiului găurit (forat)73 mm
Recomandările producătorului
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Clasa de reacție la focA1 - F
Distanța dintre 2 doze71
Permite instalarea aparatajului dubluyes
Tipuri de protecțieIP30
StandardeČSN EN 60 670-1
Descriere impachetare
packed in 8-pc packages in schrink foil, packs aligned in cardboard, box is equipped with screws for mounting in plasterboard and instrument screws

Inlet openings made of flexible material. The cable or tube installation is performed by extracting the pre-pressed inlet to the flexible membranes and then inserting the required item into the opening. Installation box in the hole is made by tightening mounting screws. Air proofed even with inserted cable or pipe. Suitable for low energy and passive houses. The fixing screws as well as the instrument screws are double-threaded for quick installation; the box has plastic flanges. The connecting pieces for the assembly of boxes with pitch 71 mm are part of the set; during assembly it is necessary to remove the pre-marked part of the box edge. When mounting, it is not necessary to countersink the plasterboard edge. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection. Boxing with 71 mm axial spacing can be done with the SKLD 2 coupling (not included), when joining, it is necessary to tear off the pre-marked part of the box rim. Protected by a European industrial design trademark.
