Imagine ilustrativă
To download 3D models, please login or create an account and request access.
Cod Ean8595568937674
Cod vamal39259080
Greutate0,0160 kg/pcs
MaterialPP
Material fără halogeniyes
Material fără plumbyes
Izolare fonicăyes
Cu suto-stingere30 s
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-5 - 60 °C
Testat cu buclă incinsă850 °C

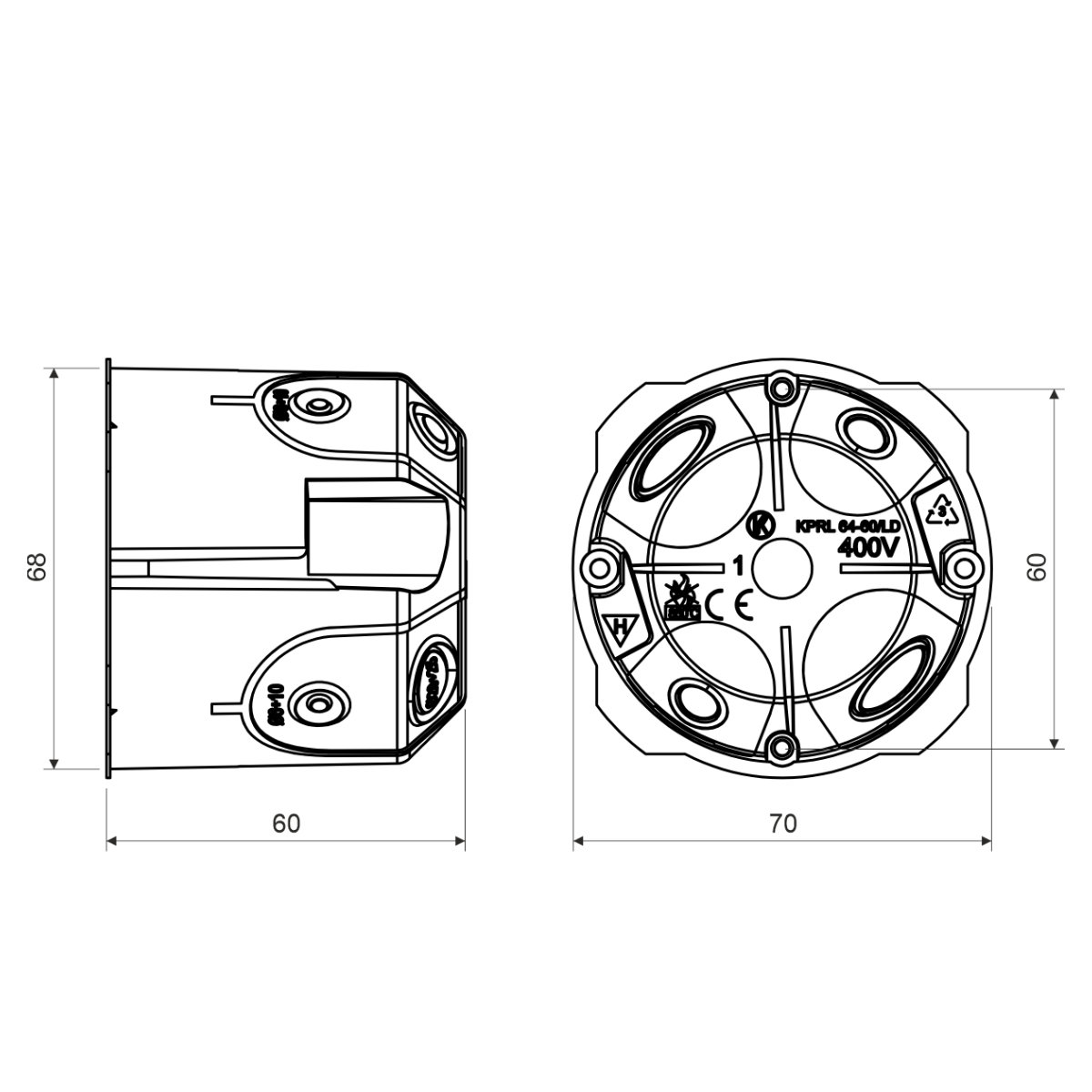

Lătime70 mm
Înăltime68 mm
Adâncime60 mm
Diametrul orificiului găurit (forat)68 mm
Recomandările producătorului
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Clasa de reacţie la foc a materialului de fondA1 - F
Tipuri de protecțieIP 30
StandardeČSN EN 60 670-1
Descriere impachetare
the box is fitted with screws for fixing onto plasterboard and with instrument screws, pack loosely in a box

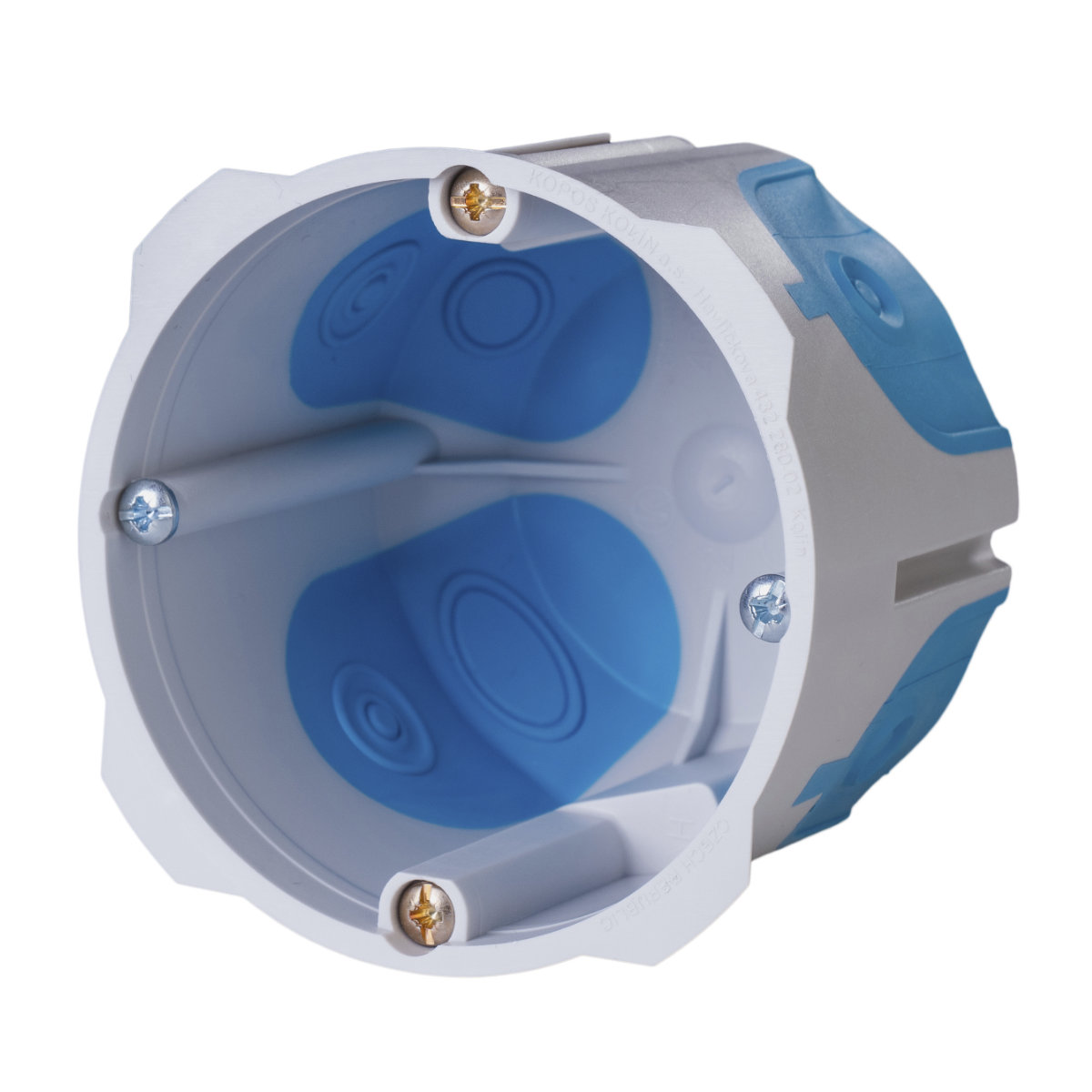

Halogen-free design of the two-injection box for hollow walls for use in environments with increased need for protection of persons and property. Inlet openings made of flexible material. Cable installation is done by pulling out the pre-moulded inlet on the flexible membranes and inserting the cable or pipe into the hole. Installation of the box in the opening is done by tightening the mounting screws. The airtightness of the penetration is ensured even when the cable or tube is inserted. Suitable for low-energy or passive houses. The box meets the requirements for installation in soundproof walls with an attenuation of up to 69 dB. Mounting and instrument screws are double-tapped threaded for quick installation, box includes plastic feet. No need to countersink the edge of the plasterboard during installation. IP30 protection is met by a box fitted with a suitable lid or instrument with a protection rating greater than or equal to IP30.
