Imagine ilustrativă
KUZ-V KB - krabice univerzální do zateplení s víkem
To download 3D models, please login or create an account and request access.
Cod Ean8595568923660
Cod vamal39259080
Greutate0,57 kg/pcs
MaterialPC-ABS
Material fără halogeniyes
Material fără plumbyes
Cu suto-stingere30 s
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-25 - 60 °C
Testat cu buclă incinsă850 °C

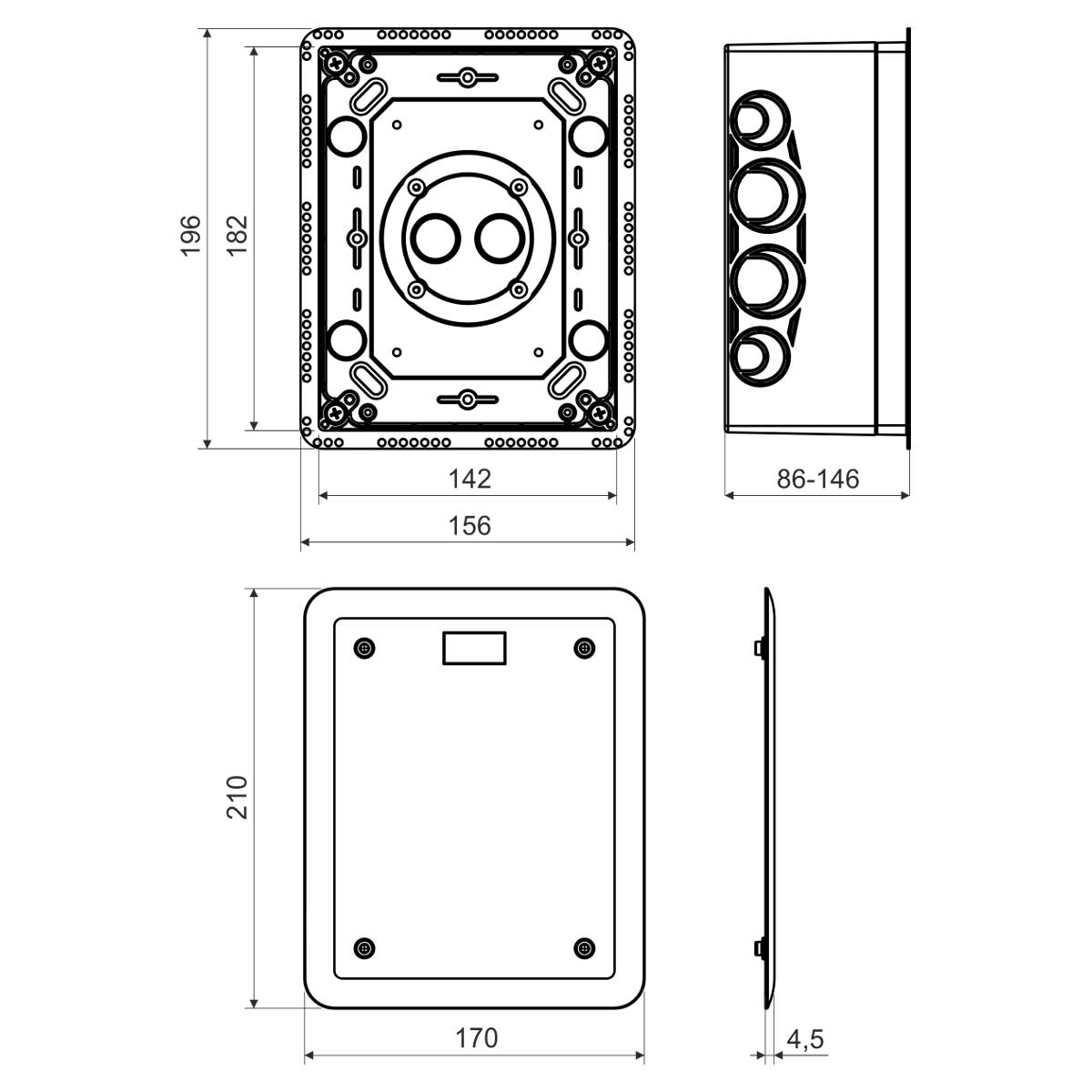

Lătime156 mm
Înăltime196 mm
Adâncime86 mm
Clasa de reacţie la foc a materialului de fondA1 - F
Tipuri de protecțieIP 30 - 44
Descriere impachetare
individual boxes are packed in separate cardboards

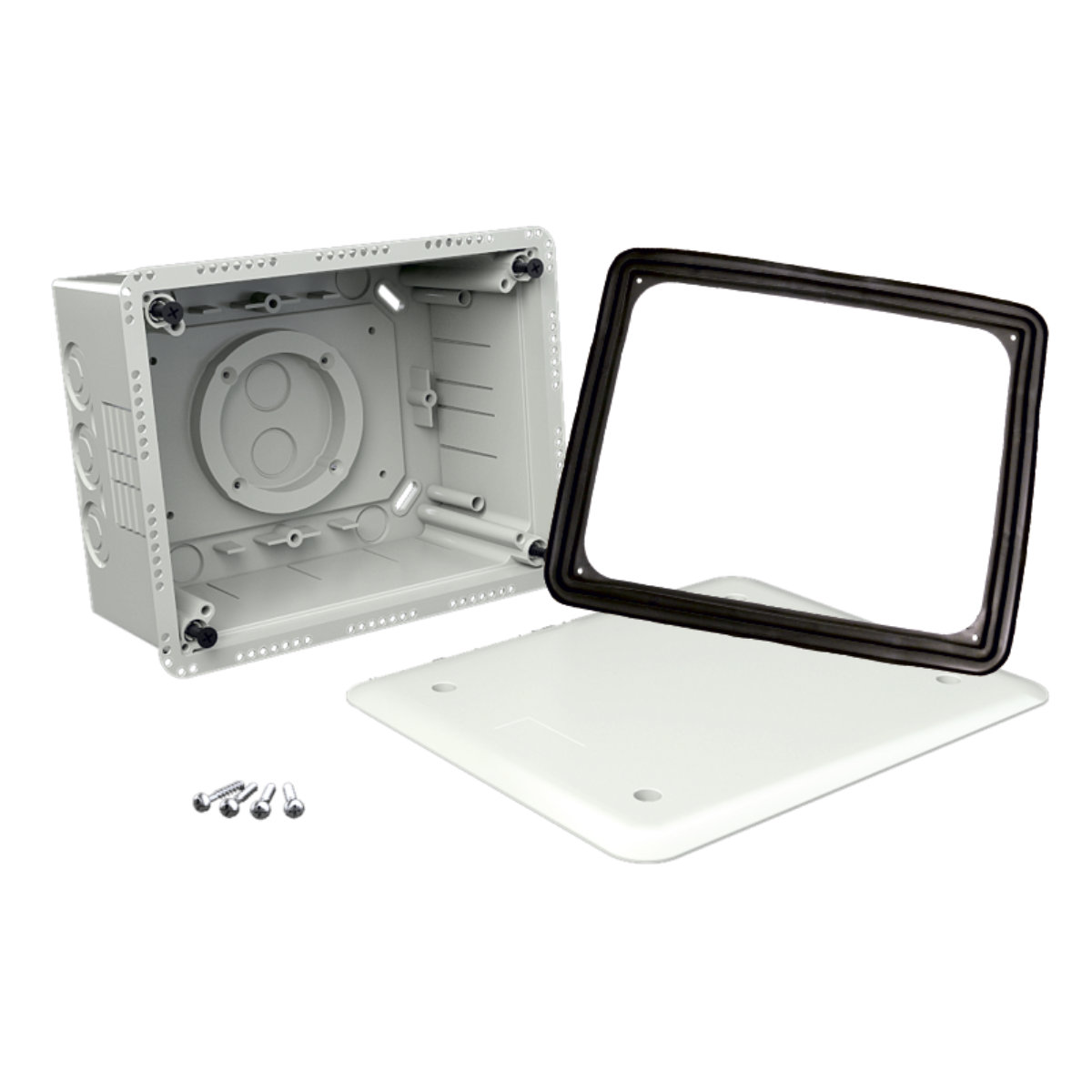

For installation to facades with thermal insulation with a thickness from 80 to 140 mm, or as boxes under parget. Use as a junction box, for lightning rod measuring clamp and other applications according to the customer. Adjustable depth of the box. The configuration includes a box and a flat lid + stainless steel screws + seal. Robust construction. Protected by a European industrial design and Utility model trademark.
