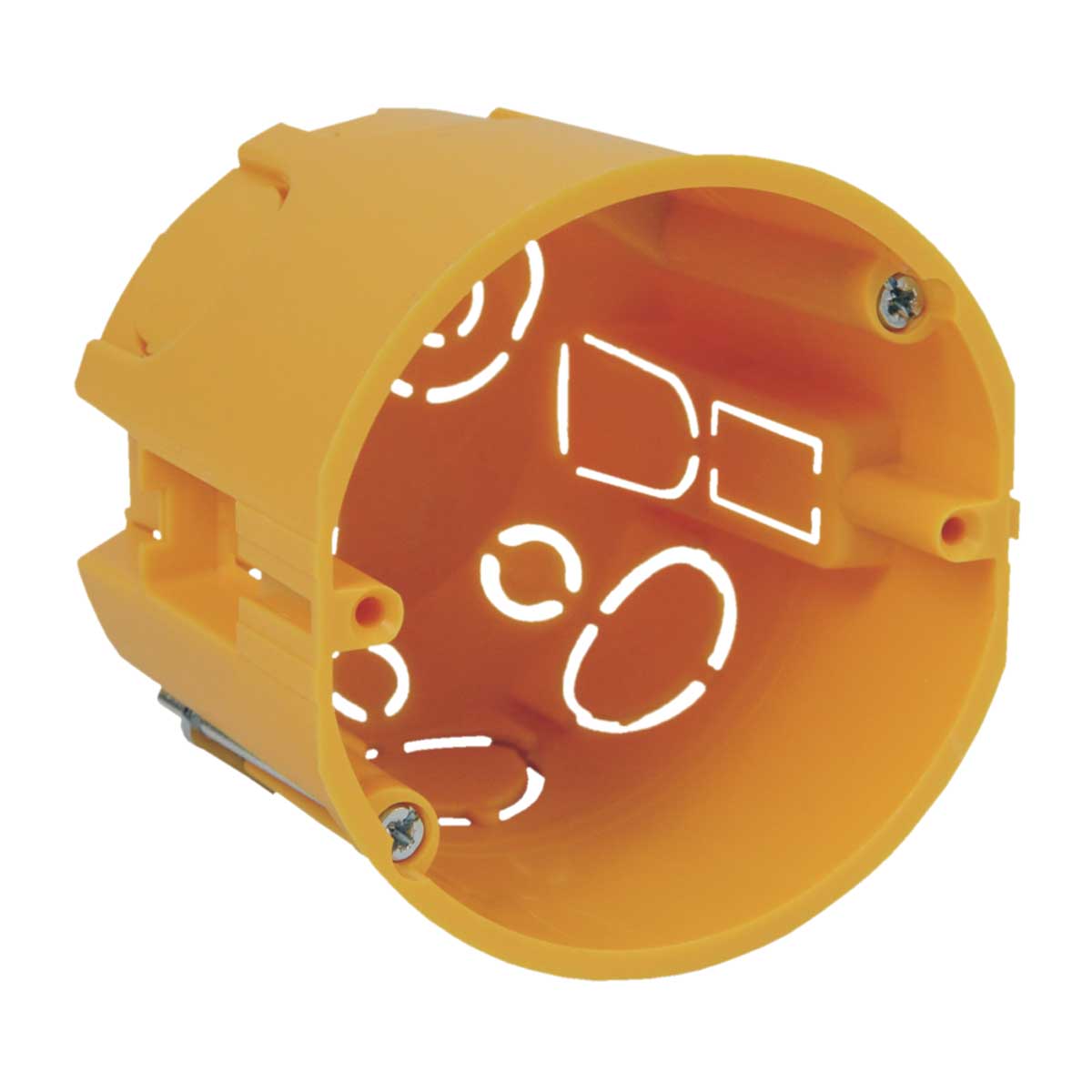

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KPR6871L_EN
| Cod Ean | 8595057687929 |
| Cod vamal | 39259080 |
| Greutate | 0,06 kg/pcs |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |

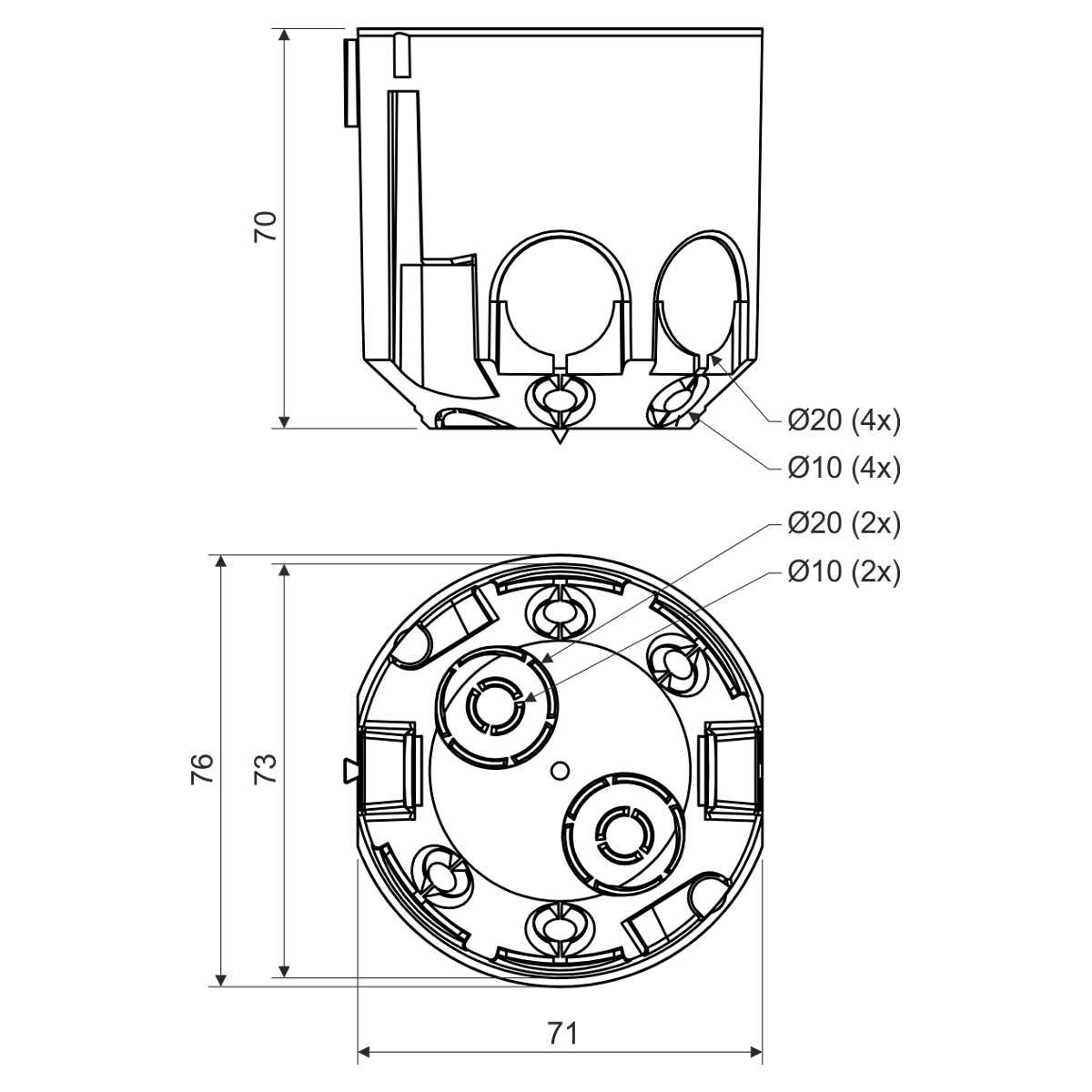

| În medie | 73 mm |
| Adâncime | 70 mm |
| Diametrul orificiului găurit (forat) | 73 mm |
| Recomandările producătorului For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Clasa de reacţie la foc a materialului de fond | A1 - F |
| Distanța dintre 2 doze | 71 mm |
| Permite instalarea aparatajului dublu | yes |
| Tipuri de protecție | IP 30 |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare individual boxes fitted with screws for installation in plasterboard | |

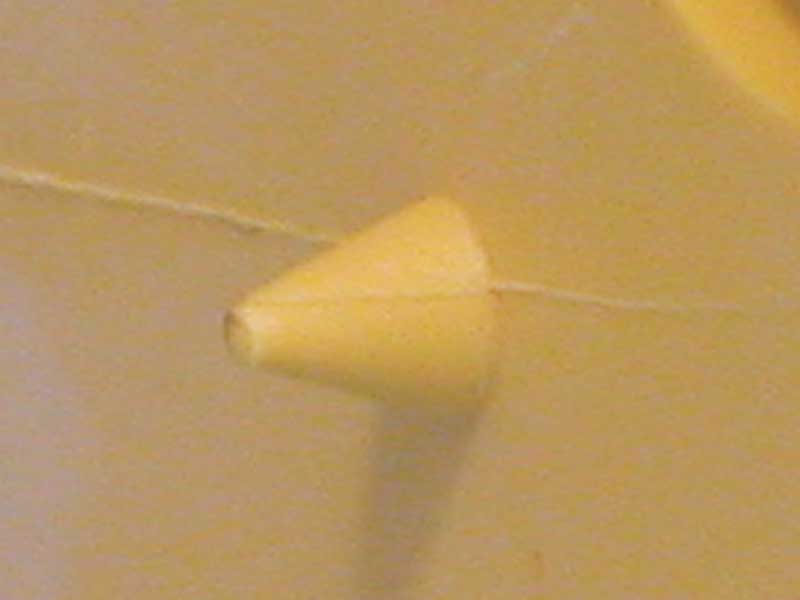

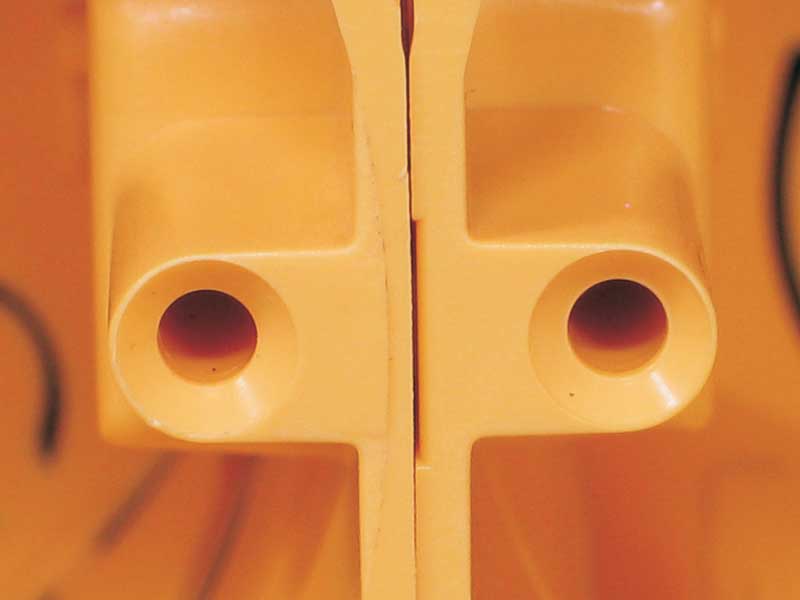

Easy installation of devices with big depth. Connection in a continuous series with axial distance of 71 mm. Possibility to insert terminal S-66. Integrated tip to mark the centre of drilling. Jointed boxes can be interconnected using single insulated wires. Mounting screws are fitted with a triple thread for quick installation. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection When mounting, it is not necessary to countersink the plasterboard edge.
