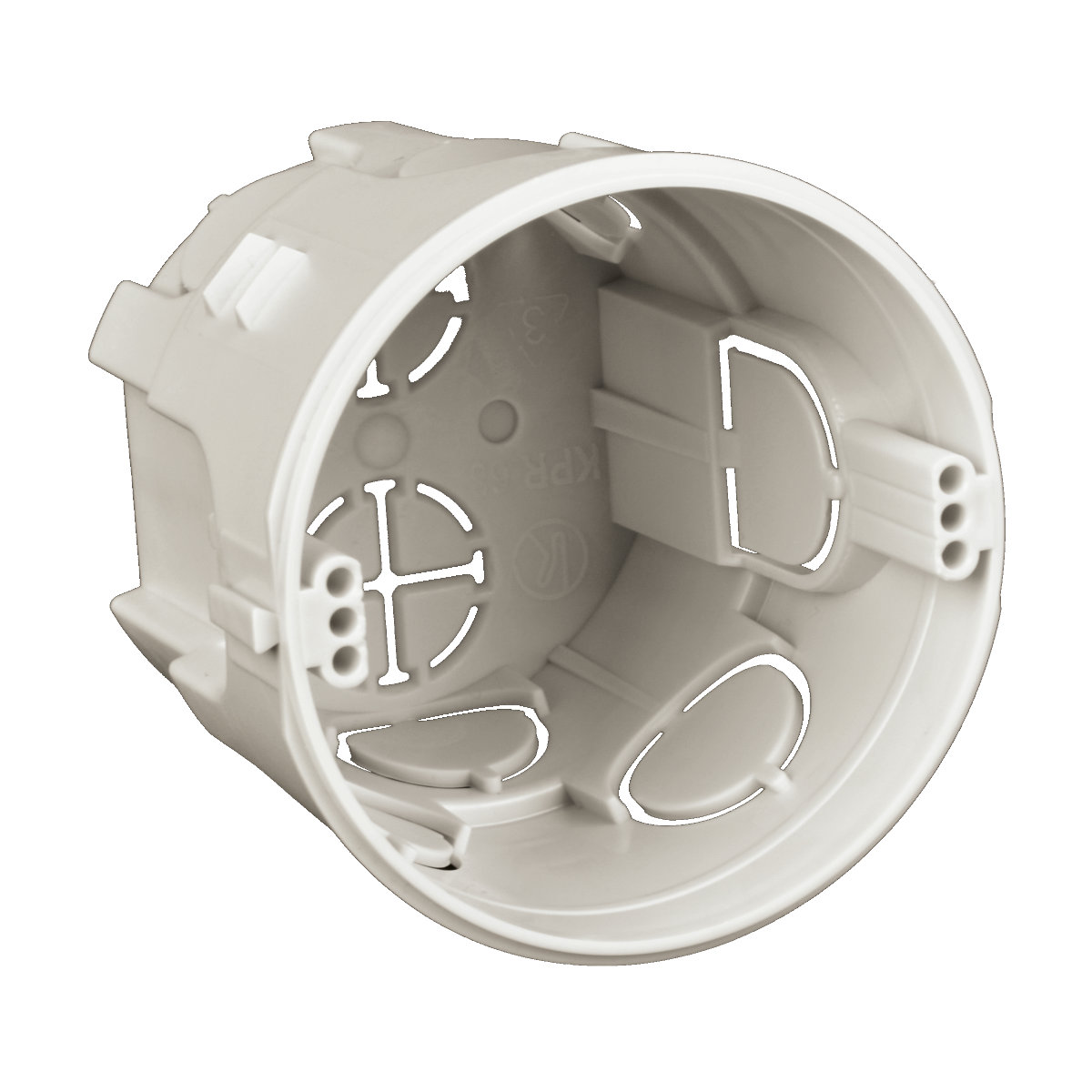

Imagine ilustrativă
To download 3D models, please login or create an account and request access.
KPR68_EN
| Cod Ean | 8595057648302 |
| Cod vamal | 39259080 |
| Greutate | 0,0400 kg/buc |
| Material | PVC |
| Material fără plumb | yes |
| Cu suto-stingere | 30 s |
| Voltaj nominal | <= 400 V |
| Curent nominal | <= 16 A |
| Rezistența la temperatură | -5 - 60 °C |
| Testat cu buclă incinsă | 850 °C |
| În medie | 73 mm |
| Adâncime | 66 mm |
| Diametrul orificiului găurit (forat) | 80 mm |
| Clasa de reacţie la foc a materialului de fond | A1 - D |
| Distanța dintre 2 doze | 71 mm |
| Permite instalarea aparatajului dublu | yes |
| Standarde | ČSN EN 60 670-1 |
| Descriere impachetare packed 10 pcs in a shrink foil, package straighten in cardboard | |

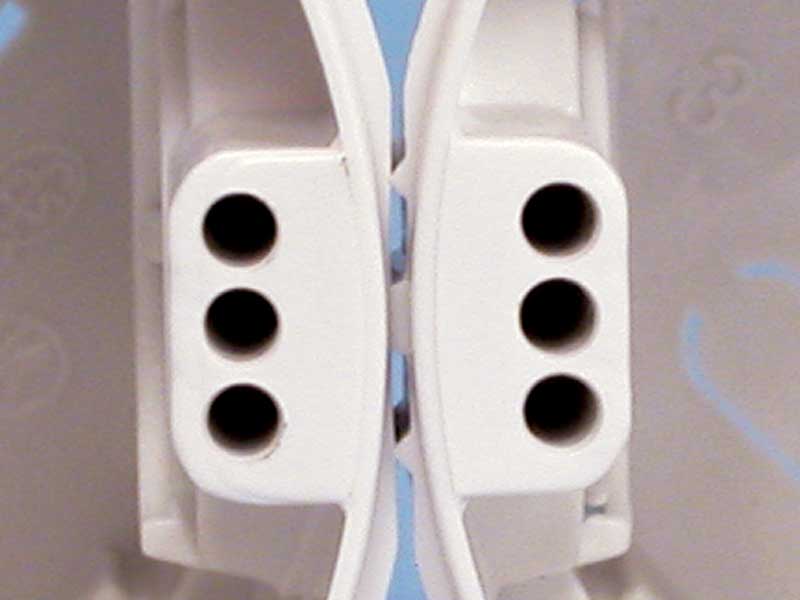

Easy installation of devices with big depth. Possibility to join into and continuous series with and spacing of 71 mm. Connection of up to three boxes in and row is recommended. Possibility to easily clamp under the device using screwless terminals. Boxes can be joined with boxes KU 68-1901, KP 68/2 and KP 68.
