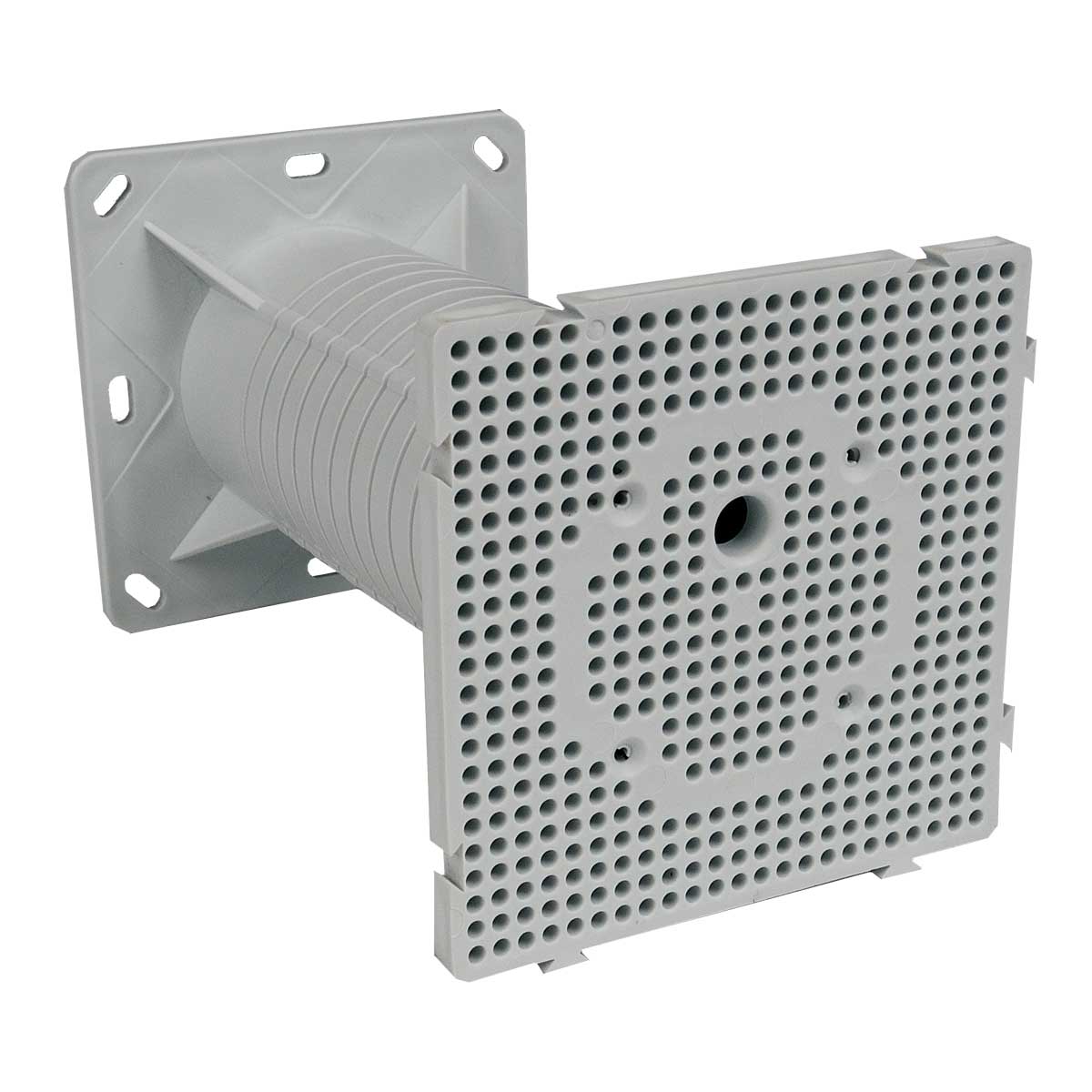

Imagine ilustrativă
MDZ KB - montážní deska do zateplení
To download 3D models, please login or create an account and request access.
Cod Ean8595057698505
Cod vamal39259080
Greutate0,3200 kg/pcs
MaterialPP
Material fără plumbyes
Cu suto-stingere30 s
Voltaj nominal<= 400 V
Curent nominal<= 16 A
Rezistența la temperatură-25 - 60 °C
Testat cu buclă incinsă850 °C
Ansamblu
There is necessary to cut the carrier including inserted insulation before installation depending on layer thickness insulation. The carrier is fixed to the wall with twists and dowels depending on type of the wall surface. When installing a 400 V socket, it is recommended to fasten the carrier using chemical anchors. The finally installation of box or mounting plate should be done by 4 added screws.

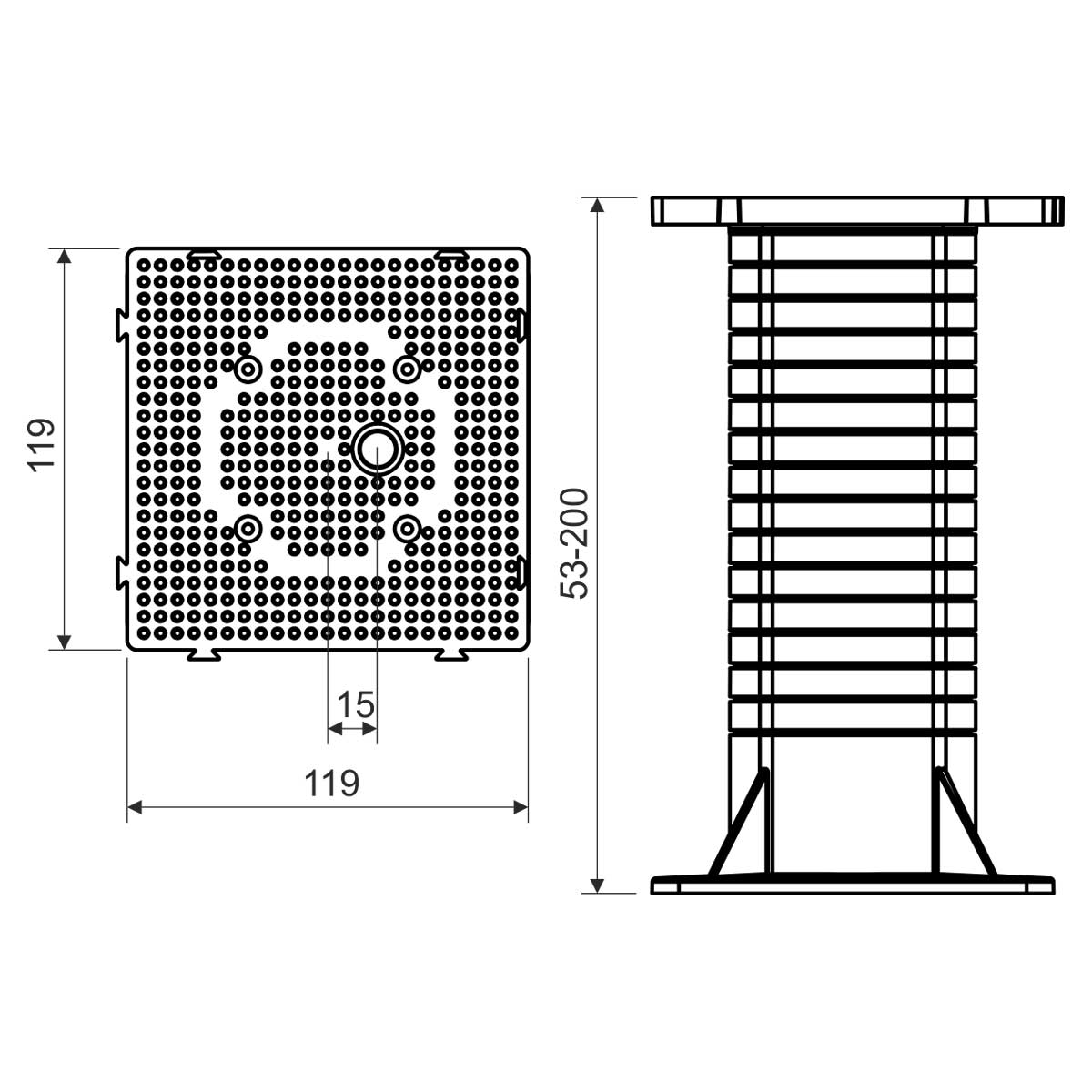

Lătime120 mm
Înăltime120 mm
Adâncime200 mm
Clasa de reacţie la foc a materialului de fondA1 - F
Descriere impachetare
individual mounting desk are packed in separate cardboards

For the installation of electrical devices (outdoor lights, motion sensors, 400 V sockets, etc.) on thermally insulated buildings facades with a thickness from 50 to 200 mm. Eliminates thermal bridging. Load of 40 N at a distance of 180 mm from the wall. Possibility to create areas of any size when using multiple mounting plates. The package includes a support tube, mounting plate including a central support cover, internal and external insulation and quality wall plugs, screws and support cover for mounting. Screws with a diameter of 4 to 5 mm are suitable for the mounting desk. Robust construction.
