Cod Ean8595568937988
Cod vamal73089059
Greutate3,2400 kg/m
Acoperire de suprafatăZn+Mg+Al galvanizing
Rezistența la temperatură-50 - 150 °C
Lătime600 mm
Înăltime60 mm
Lungime3000 mm
Funcționalitate în focP90-R, E90, PS90
StandardeČSN EN 61537
Standardele cu privire lade rezistența la focČSN 73 0895, DIN 4102-12, STN 92 0205
Grosimea foii de tablă1,2 - 1,5 mm
Cantitatea de şuruburi pentru instalare4
Distanta partiției300 mm
Încărcătură maximă pentru rezistența la foc10 - 20 kg

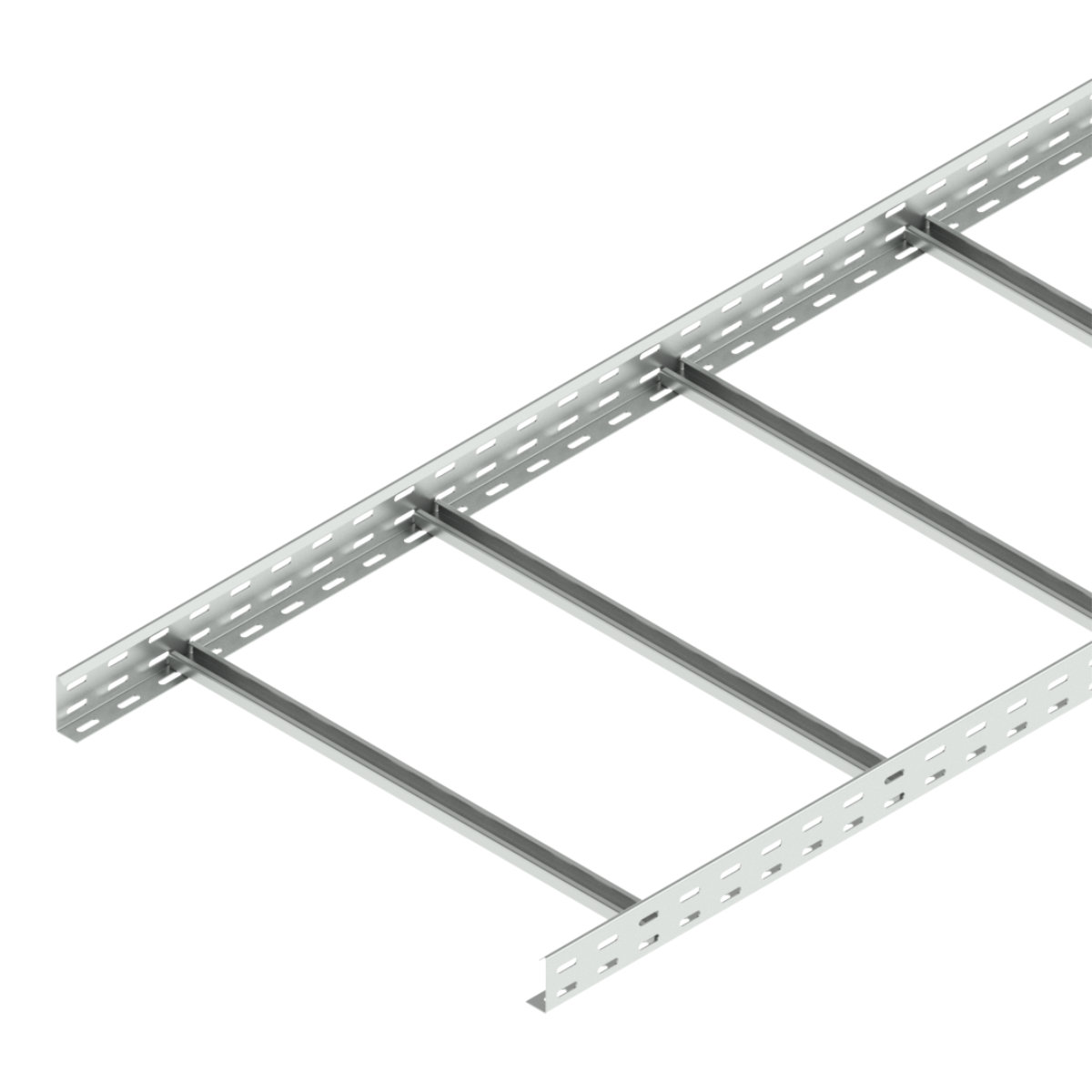

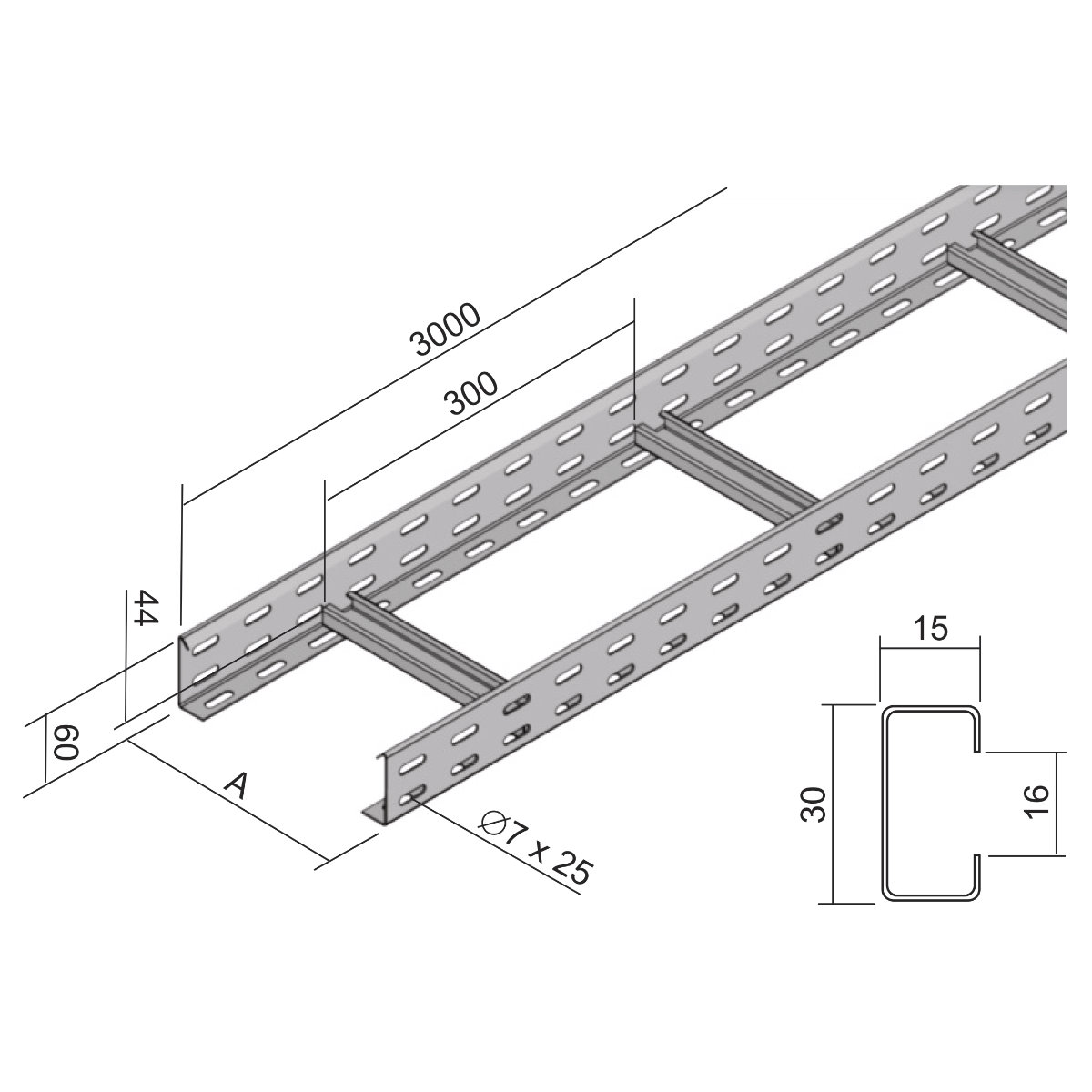

The joining of the ladders is performed by using the couplings S 60X200 and min. 6 pcs of bolts NSM 6X10. The side walls are L-profiles with return flange. The perforated C-profile rungs are placed in the side walls by extrusion with a spacing of 300 mm, with open side of the profile facing up.

Note for system with maintained functionality in fire:
For connecting the trays are designed for S 60X200 couplings and 16 pc NSM 6X10 screws.
You find more information in the catalogue Systems with maintained functionality in fire.
