Cod Ean8595568937926
Cod vamal73089059
Greutate4,0000 kg/m
Acoperire de suprafatăZn+Mg+Al galvanizing
Rezistența la temperatură-50 - 150 °C
Lătime500 mm
Înăltime110 mm
Lungime3000 mm
StandardeČSN EN 61537
Grosimea foii de tablă1,2 - 1,5 mm
Cantitatea de şuruburi pentru instalare8
Distanta partiției300 mm

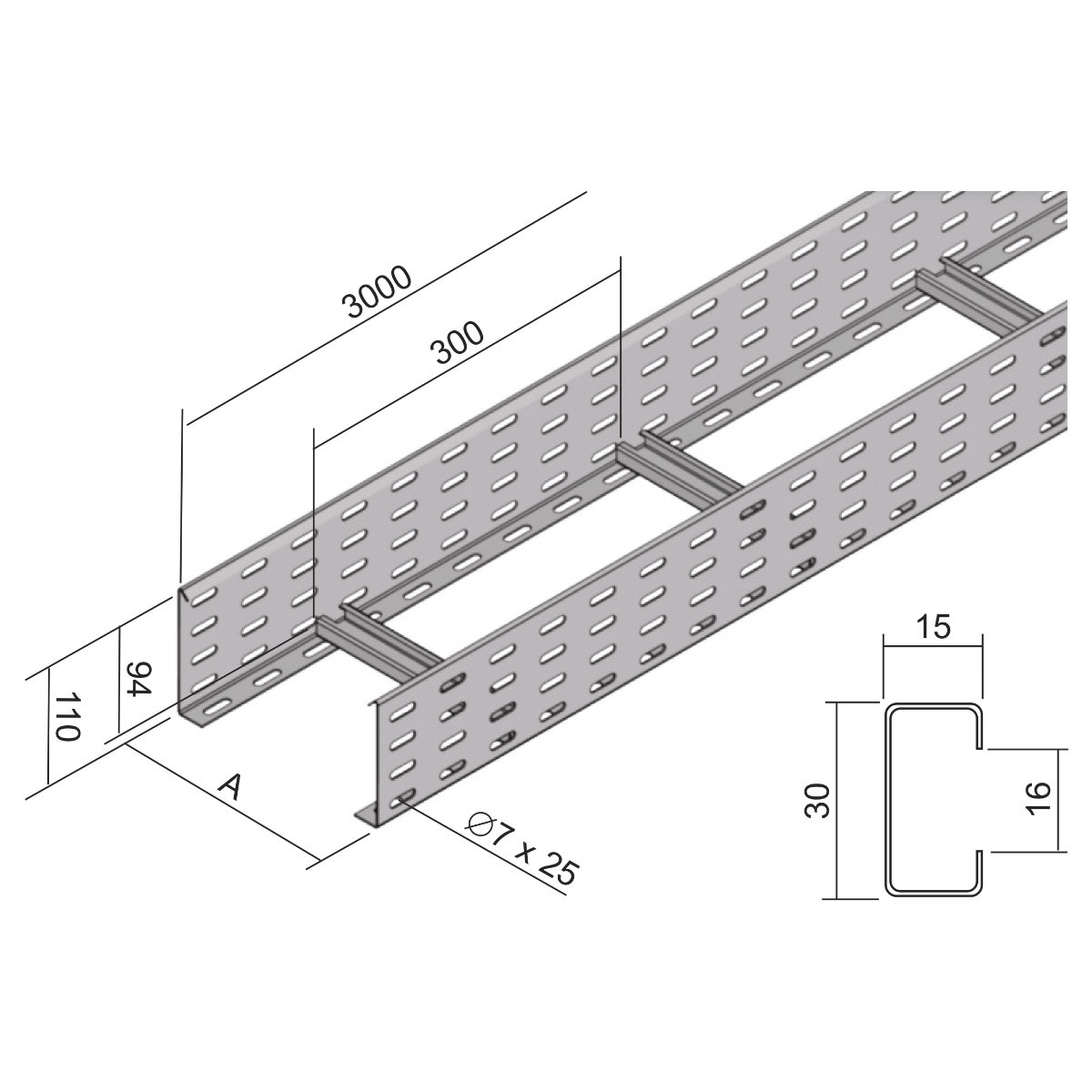

The joining of the ladders is performed by using the couplings S 110X200 and min. 8 pcs of bolts NSM 6X10. The side walls are L-profiles with return flange. The perforated C-profile rungs are placed in the side walls by extrusion with a spacing of 300 mm, with open side of the profile facing up.
